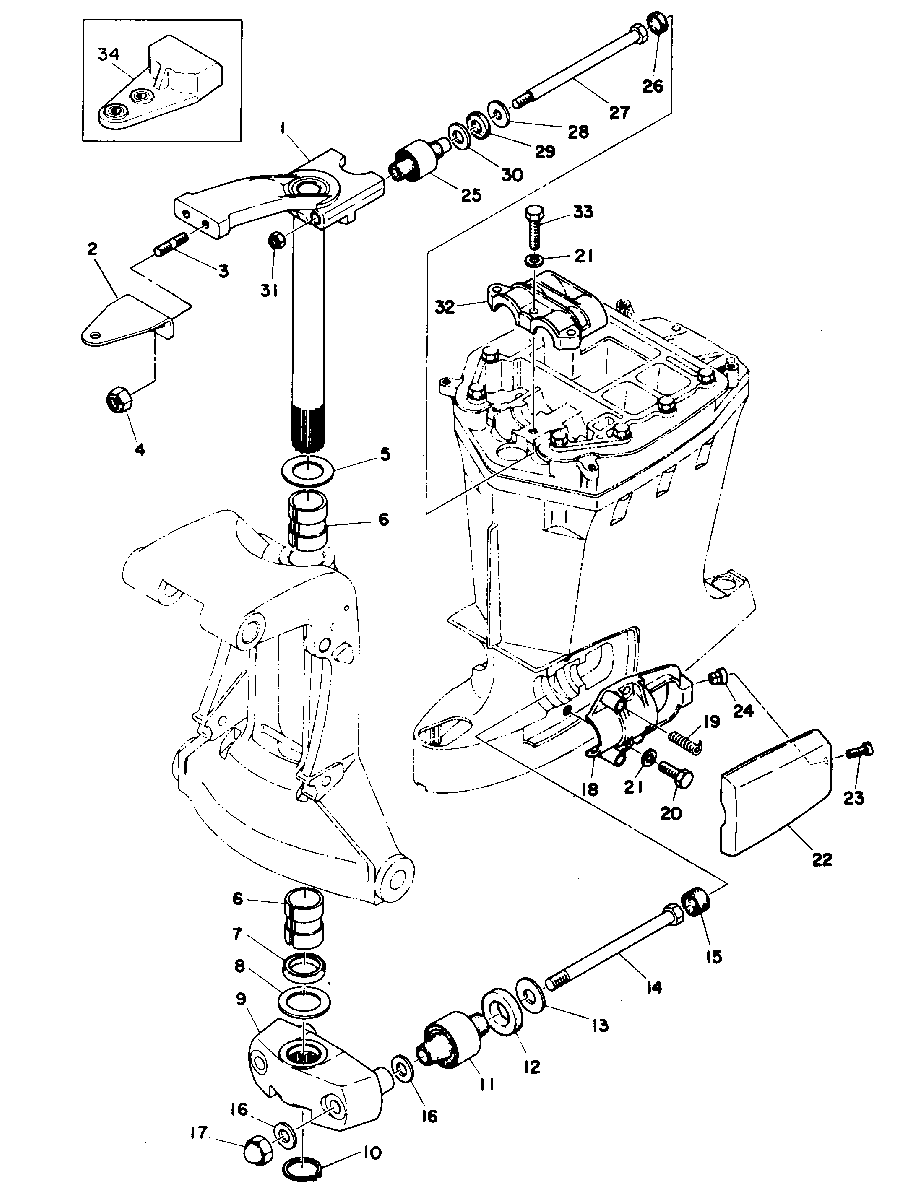

MOUNTING SYSTEM для Mariner - 55 663-36475 AND BELOW

  • №
    Артикул
    Название
  • 1
    19144M ARM & SHAFT (SHORT SHAFT)
    ARM & SHAFT (SHORT SHAFT)
  • 1
    19145T ARM & SHAFT (LONG SHAFT)
    ARM & SHAFT (LONG SHAFT)
  • 2
    81481M PLATE, STEERING (HOOK)
    PLATE, STEERING (HOOK)
  • 3
    16-81742M STUD, STEERING PLATE
    STUD, STEERING PLATE
  • 4
    10-81758M NUT, PLATE STUD
    NUT, PLATE STUD
  • 5
    12-19146M WASHER, STEERING SHAFT-UPPER
    WASHER, STEERING SHAFT-UPPER
  • 6
    23-81955M BUSHING, STEERING SHAFT
    BUSHING, STEERING SHAFT
  • 7
    26-98950M OIL SEAL, STEERING SHAFT
    OIL SEAL, STEERING SHAFT
  • 8
    12-81839M WASHER, STEERING SHAFT-LOWER
    WASHER, STEERING SHAFT-LOWER
  • 9
    81432M HOUSING, LOWER MOUNT
    HOUSING, LOWER MOUNT
  • 10
    53-82325M CIRCLIP, STEERING SHAFT
    CIRCLIP, STEERING SHAFT
  • 11
    81435M HOUSING PALTE
    HOUSING PALTE
  • 13
    12-83915M WASHER, LOWER MOUNT BOLT
    WASHER, LOWER MOUNT BOLT
  • 14
    10-81717M BOLT, LOWER MOUNT
    BOLT, LOWER MOUNT
  • 15
    81436M BUMPER, LOWER MOUNT BOLT
    BUMPER, LOWER MOUNT BOLT
  • 16
    12-81811M WASHER, LOWER MOUNT BOLT
    WASHER, LOWER MOUNT BOLT
  • 17
    11-82397M NUT, LOWER MOUNT BOLT
    NUT, LOWER MOUNT BOLT
  • 18
    81433M RETAINER, LOWER MOUNT
    RETAINER, LOWER MOUNT
  • 19
    24-82087M SPRING, COMPRESSION
    SPRING, COMPRESSION
  • 20
    10-43106M BOLT, LOWER RETAINER ATTACHING
    BOLT, LOWER RETAINER ATTACHING
  • 21
    13-82215M LOCK WASHER
    LOCK WASHER
  • 22
    81434M CLOVER, LOWER MOUNT
    CLOVER, LOWER MOUNT
  • 23
    10-83870M SCREW, LOWER MOUNT COVER ATTACHING
    SCREW, LOWER MOUNT COVER ATTACHING
  • 24
    11-81779M NUT, LOWER MOUNT COVER SCREW
    NUT, LOWER MOUNT COVER SCREW
  • 25
    81676T HOUNSING MOUNT, UPPER
    HOUNSING MOUNT, UPPER
  • 26
    81431M BUMPER, UPPER MOUNT BOLT
    BUMPER, UPPER MOUNT BOLT
  • 27
    10-81714M BOLT, UPPER MOUNT
    BOLT, UPPER MOUNT
  • 28
    12-81825M WASHER, UPPER MOUNT BOLT
    WASHER, UPPER MOUNT BOLT
  • 29
    12-81857M WASHER, UPPER MOUNT BOLT
    WASHER, UPPER MOUNT BOLT
  • 30
    12-81803M WASHER, UPPER MOUNT BOLT
    WASHER, UPPER MOUNT BOLT
  • 31
    11-81783M NUT, UPPER MOUNT BOLT
    NUT, UPPER MOUNT BOLT
  • 32
    81429M RETAINER, UPPER MOUNT
    RETAINER, UPPER MOUNT
  • 33
    10-82442M BOLT, UPPER RETAINER ATTACHING
    BOLT, UPPER RETAINER ATTACHING
  • 34
    81482M PLATE, STEERING (RIDE GUIDE )
    PLATE, STEERING (RIDE GUIDE )
