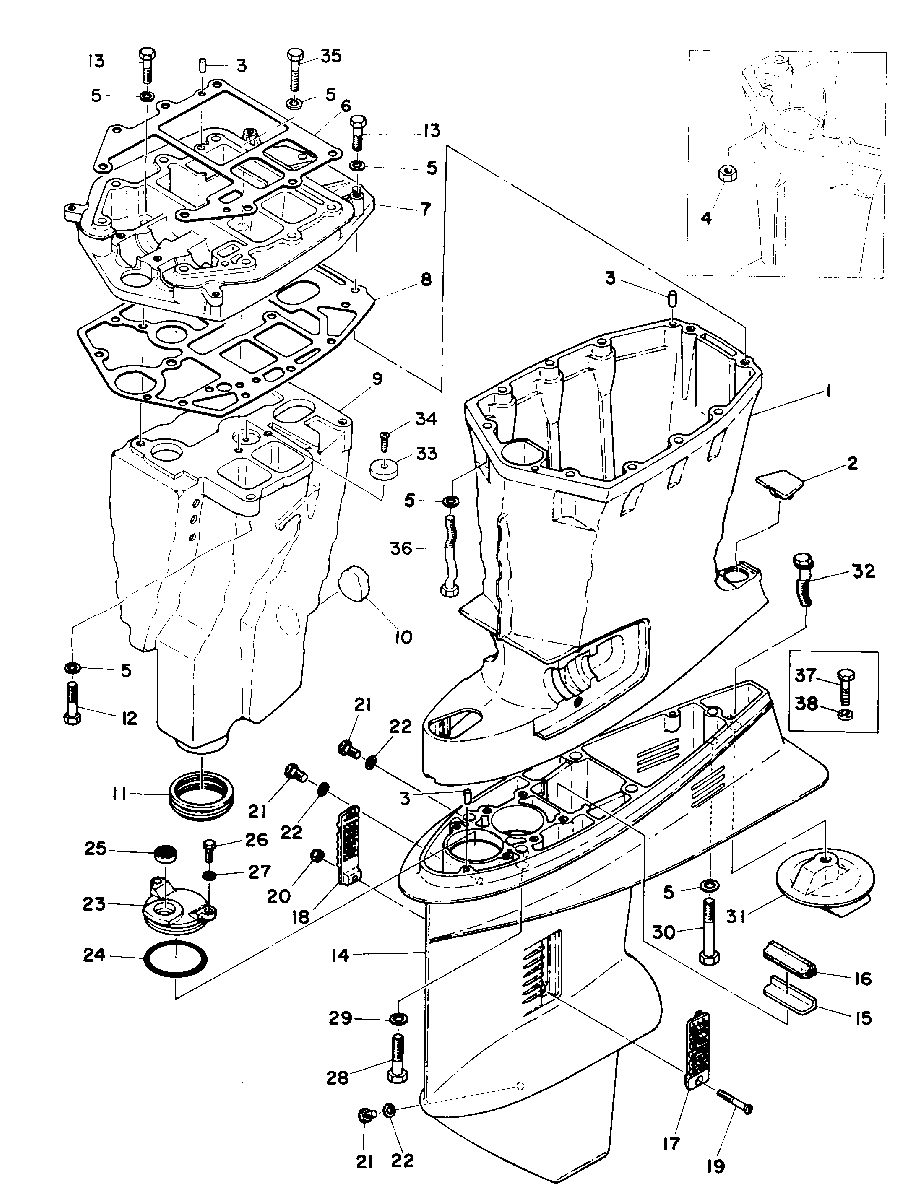

DRIVESHAFT HOUSING AND GEAR HOUSING для Mariner - 55 663-36475 AND BELOW

  • №
    Артикул
    Название
  • 1
    1587-8615M DRIVESHAFT HOUSING (SHORT SHAFT)
    DRIVESHAFT HOUSING (SHORT SHAFT)
  • 1
    1587-8616M DRIVESHAFT HOUSING (LONG SHAFT)
    DRIVESHAFT HOUSING (LONG SHAFT)
  • 2
    81442M CAP, DRIVESHAFT HOUSING (SHORT SHAFT)
    CAP, DRIVESHAFT HOUSING (SHORT SHAFT)
  • 2
    81442M CAP, DRIVESHAFT HOUSING (LONG SHAFT)
    CAP, DRIVESHAFT HOUSING (LONG SHAFT)
  • 3
    17-82364M PIN, DOWEL
    PIN, DOWEL
  • 4
    11-82382M NUT, DRIVESHAFT HOUSING ATTACHING
    SERIAL 00000000-00002147
    NUT, DRIVESHAFT HOUSING ATTACHING
    SERIAL 00000000-00002147
  • 5
    13-82215M LOCKWASHER
    LOCKWASHER
  • 6
    27-16717 GASKET, EXHAUST GUIDE-UPPER
    GASKET, EXHAUST GUIDE-UPPER
  • 7
    41849M GUIDE, EXHAUST
    GUIDE, EXHAUST
  • 8
    27-98952M GASKET, EXHAUST GUIDE-LOWER
    GASKET, EXHAUST GUIDE-LOWER
  • 9
    1587-6833M EXHAUST TUBE HOUSING, INNER (SHORT SHAFT)
    EXHAUST TUBE HOUSING, INNER (SHORT SHAFT)
  • 9
    1587-6834M EXHAUST TUBE HOUSING, INNER (LONG SHAFT)
    EXHAUST TUBE HOUSING, INNER (LONG SHAFT)
  • 10
    19-81922M WELCH PLUG, DRIVESHAFT HOUSING
    WELCH PLUG, DRIVESHAFT HOUSING
  • 11
    27-81440M SEAL, INNER TO OUTER HOUSING
    SEAL, INNER TO OUTER HOUSING
  • 12
    10-82442M BOLT, INNER HOUSING ATTACHING
    BOLT, INNER HOUSING ATTACHING
  • 13
    10-95416M BOLT, GUIDE ATTACHING
    BOLT, GUIDE ATTACHING
  • 14
    1651-7971M GEAR HOUSING
    GEAR HOUSING
  • 15
    81449M GUIDE, SEAL
    GUIDE, SEAL
  • 16
    81448M SEAL, RUBBER
    SEAL, RUBBER
  • 17
    19166M COVER, WATER INLET-PORT
    COVER, WATER INLET-PORT
  • 18
    19167M COVER, WATER INLET-STARBOARD
    COVER, WATER INLET-STARBOARD
  • 19
    10-82484M SCREW, INLET ATTACHING
    SCREW, INLET ATTACHING
  • 20
    11-8528165 NUT, INLET SCREW
    NUT, INLET SCREW
  • 21
    22-81924M PLUG, OIL DRAIN
    PLUG, OIL DRAIN
  • 22
    27-81987 GASKET, OIL DRAIN
    GASKET, OIL DRAIN
  • 23
    81445M COVER, GEAR HOUSING
    COVER, GEAR HOUSING
  • 24
    25-82281M O-TING, COVER TO GEAR HOUSING
    O-TING, COVER TO GEAR HOUSING
  • 25
    26-82257M OIL SEAL, GEAR HOUSING COVER
    OIL SEAL, GEAR HOUSING COVER
  • 26
    10-84368M BOLT, GEAR HOUSING COVER ATTACHING
    BOLT, GEAR HOUSING COVER ATTACHING
  • 27
    12-82214M WASHER, COVER BOLT
    WASHER, COVER BOLT
  • 28
    10-91636M BOLT, GEAR HOUSING ATTACHING
    BOLT, GEAR HOUSING ATTACHING
  • 29
    13-82218M LOCKWASHER, GEAR HOUSING BOLT
    LOCKWASHER, GEAR HOUSING BOLT
  • 30
    10-43103M BOLT, GEAR HOUSING ATTACHING
    BOLT, GEAR HOUSING ATTACHING
  • 31
    83859T TRIM, TAB
    TRIM, TAB
  • 32
    10-82402M BOLT, TRIM TAB ATTACHING
    SERIAL 00000000-00002460
    BOLT, TRIM TAB ATTACHING
    SERIAL 00000000-00002460
  • 33
    43107M ANODE
    ANODE
  • 34
    10-84367M SCREW
    SCREW
  • 35
    10-97749M BOLT
    BOLT
  • 36
    10-82472M BOLT
    SERIAL 00002148-09999999
    BOLT
    SERIAL 00002148-09999999
  • 37
    10-82801M BOLT
    SERIAL 00002461-09999999
    BOLT
    SERIAL 00002461-09999999
  • 38
    12-82220M WASHER
    SERIAL 00002461-09999999
    WASHER
    SERIAL 00002461-09999999
