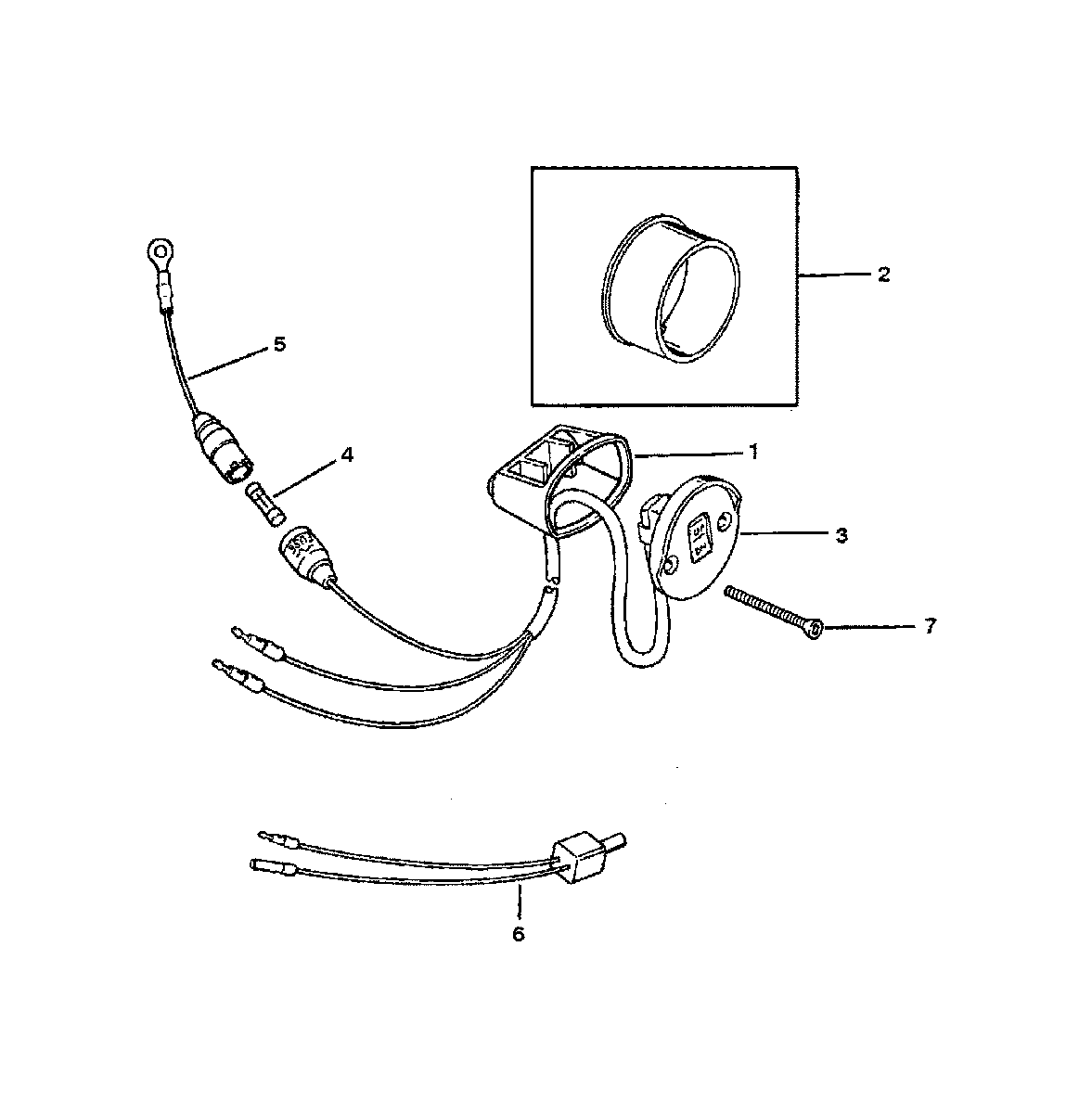

TRIM SWITCH KIT для Mariner - 40 (4 CYL.) 9570790 AND UP
-
№АртикулНазвание
-
-87-18286A18 TRIM SWITCH KITTRIM SWITCH KIT
-
118861 RETAINER-TRIM SWITCHRETAINER-TRIM SWITCH
-
2814820 ADAPTOR-SURFACE MOUNTINGADAPTOR-SURFACE MOUNTING
-
3NSS SWITCH ASSEMBLYSWITCH ASSEMBLY
-
488-79091 FUSEFUSE
-
584-95084A2 CABLE-FUSECABLE-FUSE
-
684-11149A2 CABLE ASSEMBLYCABLE ASSEMBLY
-
710-19209 SCREW (10-32)SCREW (10-32)
-
710-813523 SCREW (10-16)SCREW (10-16)
Все узлы модели:
- ACCESSORIES
- ADAPTOR PLATE/SHIFT SHAFT
- CARBURETOR ASSEMBLY
- CLAMP BRACKET (THUMB SCREW DESIGN) (S/N D181999 & BELOW)
- COWLING
- CRANKSHAFT, PISTONS, AND CONNECTING RODS
- CYLINDER BLOCK AND CRANKCASE ASSEMBLY
- DRIVE SHAFT HOUSING ASSEMBLY
- ELECTRICAL BOX COMPONENTS
- END CAPS AND EXHAUST COVER
- FLYWHEEL, STATOR AND STARTER MOTOR
- FUEL PUMP
- GEAR HOUSING (DRIVE SHAFT)
- GEAR HOUSING (DRIVE SHAFT)
- GEAR HOUSING (PROP SHAFT)
- JET COMPONENTS
- JET PUMP ASSEMBLY
- KEY, CHOKE AND HORN KIT
- MAN. TILT COMPONENTS (DESIGN I) -L. SHAFT (S/N-C159200 & UP)
- MAN. TILT COMPONENTS (DESIGN II)
- MISCELLANEOUS INFORMATION
- OIL INJECTION COMPONENTS
- STARTER MOTOR ASSEMBLY
- STARTER REWIND
- STEERING HANDLE ASSEMBLY
- STEERING HANDLE ASSEMBLY
- SWIVEL BRACKET
- THROTTLE CONTROL LINKAGE (METAL LINK ROD SWIVELS)
- THROTTLE CONTROL LINKAGE (PLASTIC LINK ROD SWIVELS)
- TILLER HANDLE ADAPTOR KIT (JET 30)
- TRANSOM BRACKET (S/N D181999 & BELOW)
- TRANSOM/CLAMP BRACKET (S/N D182000 & ABOVE)
- • TRIM SWITCH KIT
