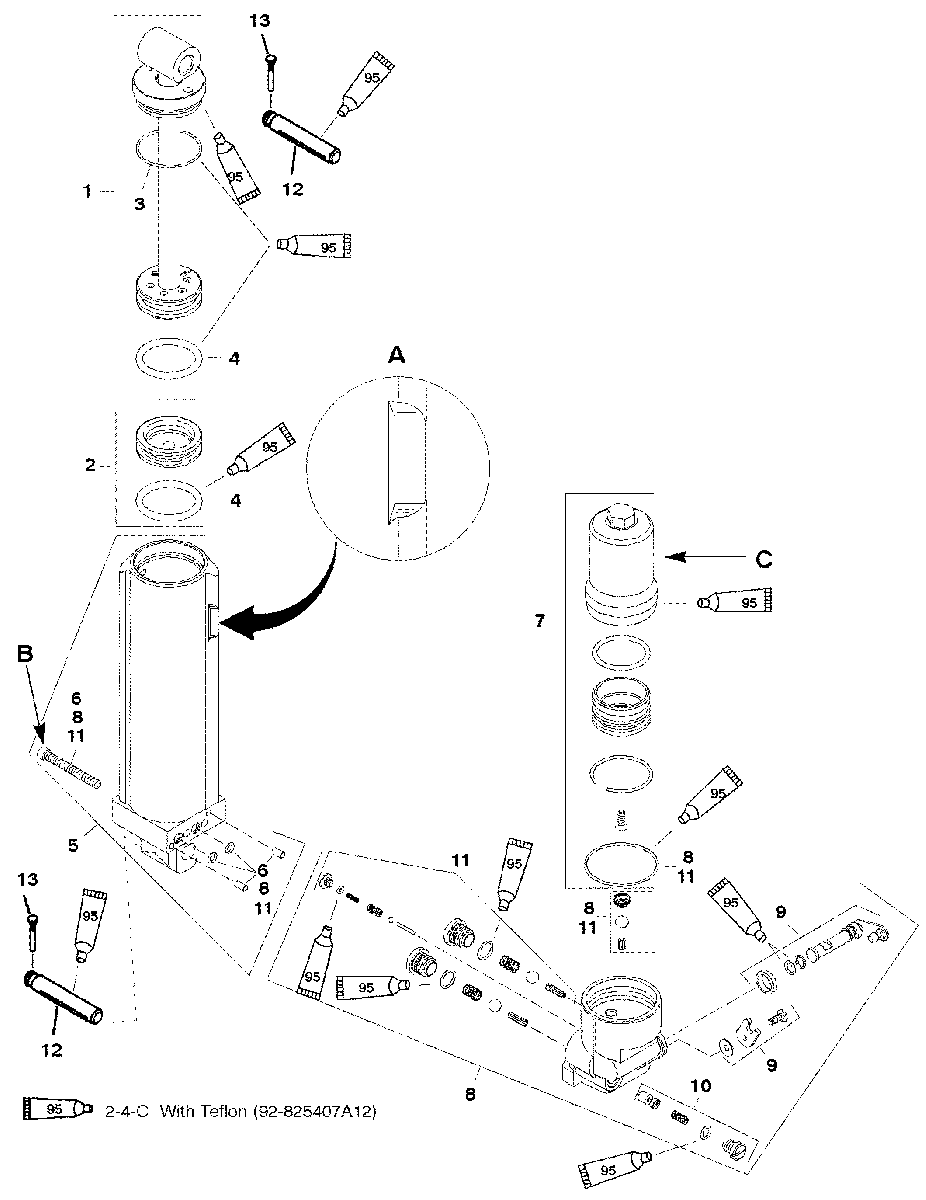

MAN. TILT COMPONENTS (DESIGN II) для Mariner - 40 (4 CYL.) 9570790 AND UP
-
№АртикулНазвание
-
-8M0118570 TRIM PUMP ASSEMBLY
SUPERSEDES TO ANOTHER PART NUMBERTRIM PUMP ASSEMBLY
SUPERSEDES TO ANOTHER PART NUMBER -
18M0118572 SHOCK ROD ASSEMBLYSHOCK ROD ASSEMBLY
-
2893903A01 MEMORY PISTON ASSEMBLYMEMORY PISTON ASSEMBLY
-
325-893917A01 O RING REBUILD KIT-CYLINDERO RING REBUILD KIT-CYLINDER
-
4NSS O RINGO RING
-
5893918A01 CYLINDER ASSEMBLYCYLINDER ASSEMBLY
-
6893919A01 SCREW AND SEAL KITSCREW AND SEAL KIT
-
7893920A01 ACCUMULATOR ASSEMBLYACCUMULATOR ASSEMBLY
-
88M0118574 VALVE BODY ASSEMBLYVALVE BODY ASSEMBLY
-
9893923A01 CAM KITCAM KIT
-
10893924A01 VELOCITY VALVE KITVELOCITY VALVE KIT
-
11893925A01 CHECK SYSTEM REPAIR KITCHECK SYSTEM REPAIR KIT
-
-25-893922A01 O RING KITO RING KIT
-
1217-19607 PINPIN
-
1317-821539 GROOVE PINGROOVE PIN
