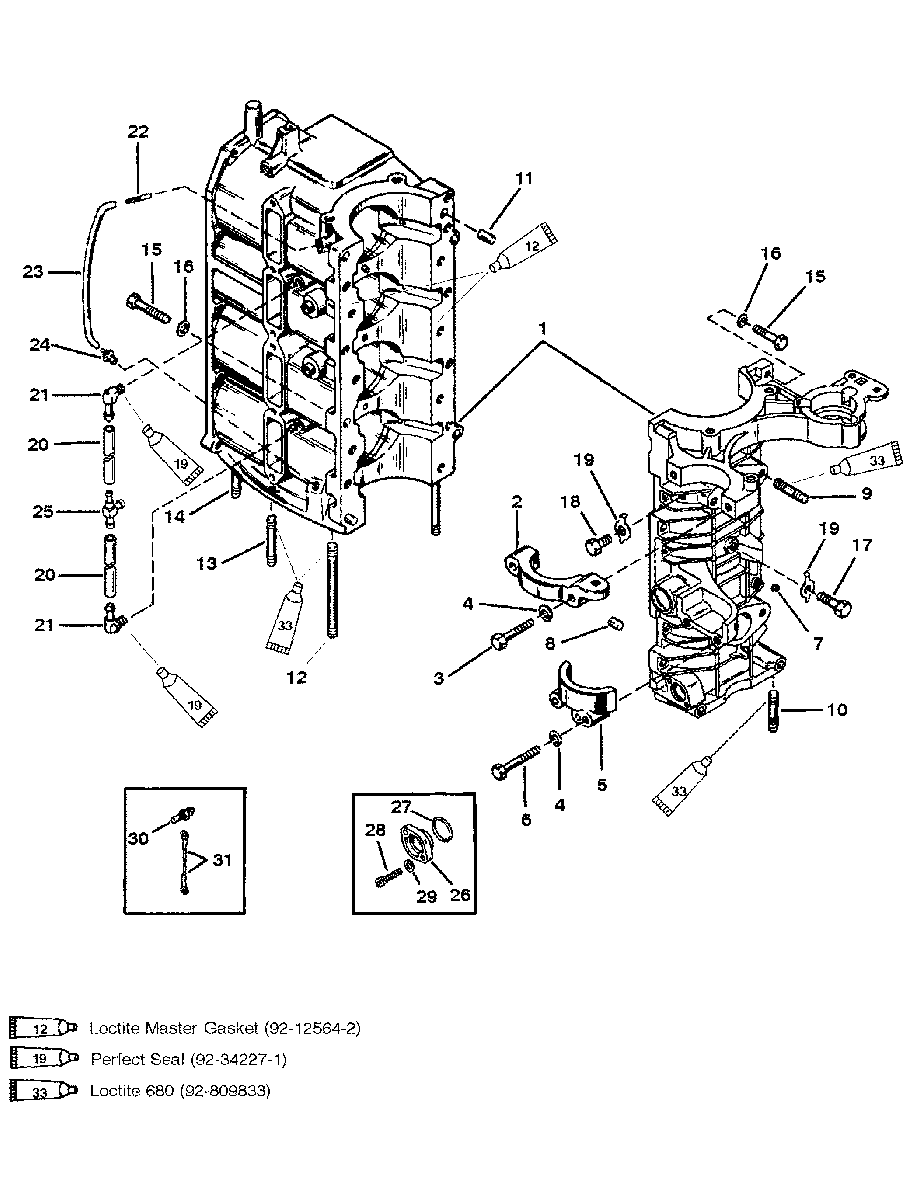

CYLINDER BLOCK AND CRANKCASE ASSEMBLY для Mariner - 40 (4 CYL.) 9570790 AND UP

  • №
    Артикул
    Название
  • 1
    893943A01 SHOCK ROD ASSEMBLY KIT
    SHOCK ROD ASSEMBLY KIT
  • 2
    813428 CYLINDER END CAP
    CYLINDER END CAP
  • 3
    813429 SHOCK PISTON ASSEMBLY
    SHOCK PISTON ASSEMBLY
  • 4
    813432A3 CYLINDER REBUILD KIT
    CYLINDER REBUILD KIT
  • 5
    893903A01 MEMORY PISTON KIT (SEE FOOTNOTE & ILLUSTRATION)
    SUPERSEDES TO ANOTHER PART NUMBER
    MEMORY PISTON KIT (SEE FOOTNOTE & ILLUSTRATION)
    SUPERSEDES TO ANOTHER PART NUMBER
  • 5
    810776 MEMORY PISTON KIT (SEE FOOTNOTE & ILLUSTRATION)
    MEMORY PISTON KIT (SEE FOOTNOTE & ILLUSTRATION)
  • 6
    810777 CYLINDER KIT
    DESIGN I SEE ILLUSTRATION
    CYLINDER KIT
    DESIGN I SEE ILLUSTRATION
  • 7
    893919A01 SCREW AND SEAL KIT
    DESIGN I SEE ILLUSTRATION
    SCREW AND SEAL KIT
    DESIGN I SEE ILLUSTRATION
  • 8
    811227 PUMP
    DESIGN I SEE ILLUSTRATION
    PUMP
    DESIGN I SEE ILLUSTRATION
  • 9
    813441 MANIFOLD ASSEMBLY
    DESIGN I SEE ILLUSTRATION
    MANIFOLD ASSEMBLY
    DESIGN I SEE ILLUSTRATION
  • 6
    8M0055016 CYLINDER KIT
    DESIGN II SEE ILLUSTRATION
    CYLINDER KIT
    DESIGN II SEE ILLUSTRATION
  • 7
    811678A6 SCREW AND SEAL KIT
    DESIGN II SEE ILLUSTRATION
    SCREW AND SEAL KIT
    DESIGN II SEE ILLUSTRATION
  • 8
    811227 PUMP
    DESIGN II SEE ILLUSTRATION
    PUMP
    DESIGN II SEE ILLUSTRATION
  • 9
    811225 MANIFOLD ASSEMBLY
    DESIGN II SEE ILLUSTRATION
    MANIFOLD ASSEMBLY
    DESIGN II SEE ILLUSTRATION
  • 10
    10-813436 SCREW KIT
    SCREW KIT
  • 11
    813437 DRIVE SHAFT
    DRIVE SHAFT
  • 12
    813438 SCREW AND DOWEL PIN KIT
    SCREW AND DOWEL PIN KIT
  • 13
    25-813439A3 SEAL KIT
    SEAL KIT
  • 14
    813434A1 RESERVOIR
    RESERVOIR
  • 15
    22-8134351 PLUG KIT
    PLUG KIT
  • 16
    893929A01 RELIEF VALVE KIT
    RELIEF VALVE KIT
  • 17
    84-811698 WIRING HARNESS
    WIRING HARNESS
  • 18
    813445 RESERVOIR CAP KIT
    RESERVOIR CAP KIT
  • 19
    10-813446 SCREW-CAP
    SCREW-CAP
  • 20
    813447 MOTOR KIT
    MOTOR KIT
  • 21
    813448 END CAP
    END CAP
  • 22
    813449A1 ARMATURE
    ARMATURE
  • 23
    12-813450 THRUST WASHER KIT
    THRUST WASHER KIT
  • 24
    813451 SHELL AND MAGNET KIT
    SHELL AND MAGNET KIT
  • 25
    813452 END FRAME KIT
    END FRAME KIT
  • 26
    10-813453 BOLT AND NUT KIT
    BOLT AND NUT KIT
  • 27
    17-19607 PIN
    PIN
  • 28
    17-821539 GROOVE PIN
    GROOVE PIN
  • -
    854472A3 TRIM PUMP, COMPLETE
    (INCLUDES ALL PARTS ON THIS PAGE)
    TRIM PUMP, COMPLETE
    (INCLUDES ALL PARTS ON THIS PAGE)
  • 1
    863-8981T18 CYLINDER BLOCK/CRANKCASE ASSEMBLY
    CYLINDER BLOCK/CRANKCASE ASSEMBLY
  • 2
    72038 BRACKET-STARTER MOTOR (UPPER)
    BRACKET-STARTER MOTOR (UPPER)
  • 3
    10-73279 SCREW-BRACKET TO CRANKCASE (1-7/8 IN.)
    SCREW-BRACKET TO CRANKCASE (1-7/8 IN.)
  • 4
    13-26993 LOCKWASHER-BRACKET SCREW
    LOCKWASHER-BRACKET SCREW
  • 5
    76867 COVER-STARTER MOTOR (LOWER)
    COVER-STARTER MOTOR (LOWER)
  • 6
    10-73279 SCREW-COVER TO CRANKCASE (1-7/8 IN.)
    SCREW-COVER TO CRANKCASE (1-7/8 IN.)
  • 7
    22-390721 PLUG
    PLUG
  • 8
    17-20032 DOWEL PIN
    DOWEL PIN
  • 9
    16-64936 STUD-CARBURETOR (1-1/4 IN.)
    STUD-CARBURETOR (1-1/4 IN.)
  • 10
    16-68165 STUD-CRANKCASE TO DRIVE SHAFT HOUSING (1-5/8 IN.)
    STUD-CRANKCASE TO DRIVE SHAFT HOUSING (1-5/8 IN.)
  • 11
    17-43044 DOWEL PIN-CRANKCASE TO CYLINDER BLOCK
    DOWEL PIN-CRANKCASE TO CYLINDER BLOCK
  • 12
    16-87901 STUD (4 IN.)
    STUD (4 IN.)
  • 13
    16-68166 STUD (2-1/8 IN.)
    STUD (2-1/8 IN.)
  • 14
    16-68167 STUD (2-1/2 IN.)
    STUD (2-1/2 IN.)
  • 15
    10-73657 SCREW (1-1/2 IN.)
    SCREW (1-1/2 IN.)
  • 15
    10-31984 SCREW (1-3/8 IN.)
    SCREW (1-3/8 IN.)
  • 15
    10-73275 SCREW (2-7/8 IN.)
    SCREW (2-7/8 IN.)
  • 16
    12-26020 WASHER-CRANKCASE SCREW
    WASHER-CRANKCASE SCREW
  • 17
    10-20359 SCREW-CENTER MAIN BEARING LOCKING (1 IN.)
    SCREW-CENTER MAIN BEARING LOCKING (1 IN.)
  • 18
    10-19922075 SCREW (3/4 IN.)
    DESIGN II W/LOCKWASHER
    SCREW (3/4 IN.)
    DESIGN II W/LOCKWASHER
  • 19
    12-830135 LOCKWASHER
    DESIGN II W/LOCKWASHER
    LOCKWASHER
    DESIGN II W/LOCKWASHER
  • 18
    10-98260 SCREW (5/8 IN.)
    DESIGN I W/TAB WASHER
    SCREW (5/8 IN.)
    DESIGN I W/TAB WASHER
  • 19
    14-20091 TAB WASHER
    DESIGN I W/TAB WASHER
    TAB WASHER
    DESIGN I W/TAB WASHER
  • 20
    32-8M0108355 TUBE-BALANCE-MAIN BEARING
    TUBE-BALANCE-MAIN BEARING
  • 21
    22-996642 ELBOW-BALANCE TUBE TO CYLINDER BLOCK
    ELBOW-BALANCE TUBE TO CYLINDER BLOCK
  • 22
    22-56759 CONNECTOR-BLEED HOSE (UPPER)
    CONNECTOR-BLEED HOSE (UPPER)
  • 23
    32-892024122 HOSE-CYLINDER BLEED (11 IN.)
    HOSE-CYLINDER BLEED (11 IN.)
  • 24
    21-428671 CHECK VALVE-BLEED HOSE (LOWER)
    CHECK VALVE-BLEED HOSE (LOWER)
  • 25
    22-812831 PRIMER TEE (OLD DESIGN)
    PRIMER TEE (OLD DESIGN)
  • 26
    8129961 COVER
    NON OIL
    COVER
    NON OIL
  • 27
    25-48462 O-RING
    NON OIL
    O-RING
    NON OIL
  • 28
    10-55515 SCREW
    NON OIL
    SCREW
    NON OIL
  • 29
    12-89302 WASHER
    NON OIL
    WASHER
    NON OIL
  • 30
    12415 TEMPERATURE SENDER
    POWERBOAT
    TEMPERATURE SENDER
    POWERBOAT
  • 31
    84-88824A6 CABLE ASSEMBLY
    POWERBOAT
    CABLE ASSEMBLY
    POWERBOAT
  • -
    27-85491A90 GASKET SET
    GASKET SET
  • -
    814278T93 POWERHEAD ASSEMBLY, COMPLETE
    POWERHEAD ASSEMBLY, COMPLETE
