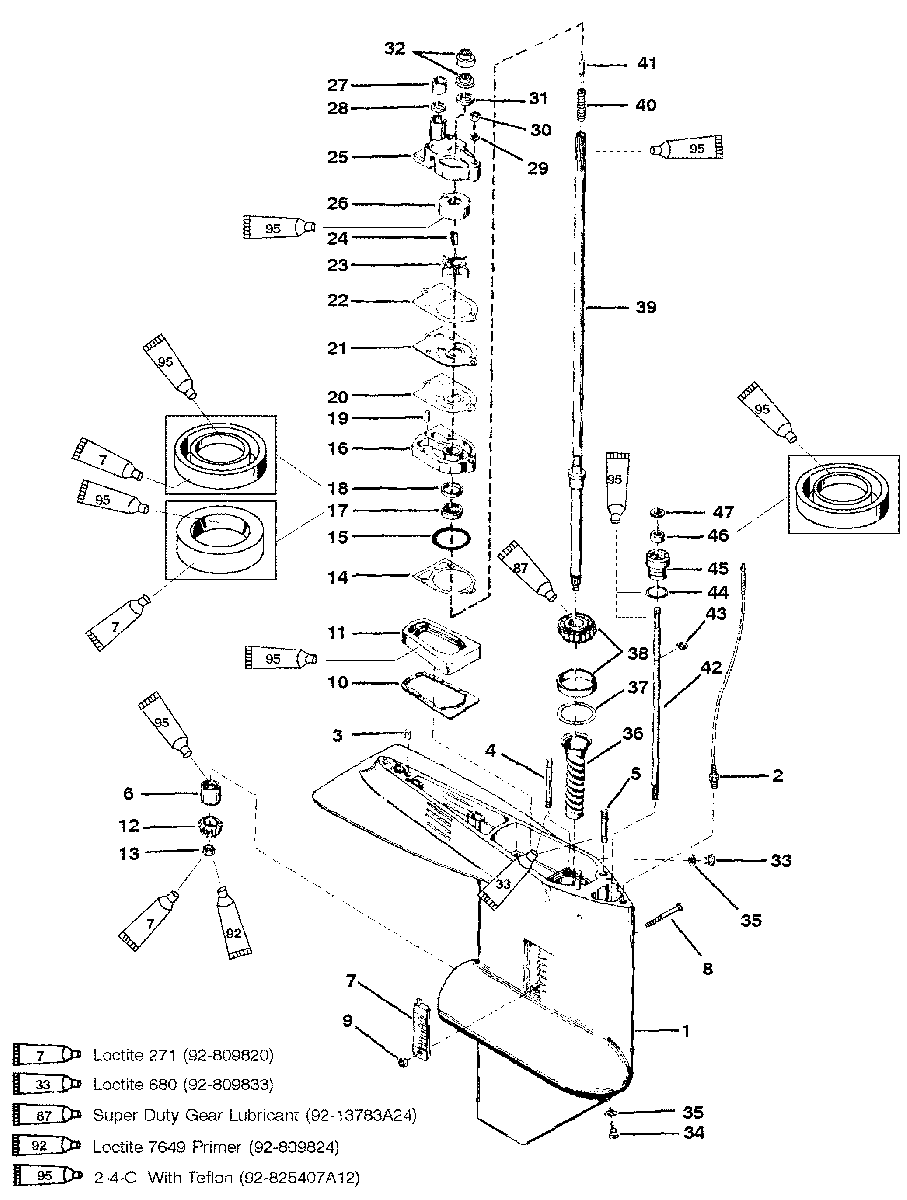

GEAR HOUSING (DRIVE SHAFT) для Mariner - 40 (4 CYL.) 9570790 AND UP

  • №
    Артикул
    Название
  • -
    1643-9539A4 GEAR HOUSING
    (SHORT BLACK) S/N USA-0D279349 & BELOW / BEL- 9793444 & BELOW
    GEAR HOUSING
    (SHORT BLACK) S/N USA-0D279349 & BELOW / BEL- 9793444 & BELOW
  • -
    1643-9539A6 GEAR HOUSING
    (SHORT GRAY) S/N USA-0D279349 & / BELOW BEL- 9793444 & BELOW
    GEAR HOUSING
    (SHORT GRAY) S/N USA-0D279349 & / BELOW BEL- 9793444 & BELOW
  • -
    1643-9539A5 GEAR HOUSING
    (LONG BLACK) S/N USA-0D279349 & BELOW / BEL- 9793444 & BELOW
    GEAR HOUSING
    (LONG BLACK) S/N USA-0D279349 & BELOW / BEL- 9793444 & BELOW
  • -
    1643-9539A7 GEAR HOUSING
    (LONG GRAY) S/N USA-0D279349 & BELOW / BEL- 9793444 & BELOW
    GEAR HOUSING
    (LONG GRAY) S/N USA-0D279349 & BELOW / BEL- 9793444 & BELOW
  • -
    1643-9539T15 GEAR HOUSING
    (SHORT BLACK) S/N USA-0D279350 & UP / BEL 9793445 & UP
    GEAR HOUSING
    (SHORT BLACK) S/N USA-0D279350 & UP / BEL 9793445 & UP
  • -
    1643-9539A16 GEAR HOUSING
    (SHORT GRAY) S/N USA-0D279350 & UP / BEL 9793445 & UP
    GEAR HOUSING
    (SHORT GRAY) S/N USA-0D279350 & UP / BEL 9793445 & UP
  • -
    1643-9539T18 GEAR HOUSING
    (LONG BLACK) S/N USA-0D279350 & UP / BEL 9793445 & UP
    GEAR HOUSING
    (LONG BLACK) S/N USA-0D279350 & UP / BEL 9793445 & UP
  • -
    1643-9539T18 GEAR HOUSING
    (LONG GRAY) S/N USA-0D279350 & UP / BEL 9793445 & UP
    GEAR HOUSING
    (LONG GRAY) S/N USA-0D279350 & UP / BEL 9793445 & UP
  • -
    1643-9539T12 GEAR HOUSING
    (TRACKER GRAPHITE GRAY)
    GEAR HOUSING
    (TRACKER GRAPHITE GRAY)
  • 1
    1643-9539T1 GEAR HOUSING ASSEMBLY
    (BLACK)
    GEAR HOUSING ASSEMBLY
    (BLACK)
  • 1
    1643-9539T1 GEAR HOUSING ASSEMBLY
    (GRAY)
    GEAR HOUSING ASSEMBLY
    (GRAY)
  • 1
    1643-9539T1 GEAR HOUSING ASSEMBLY
    (TRACKER GRAHITE GRAY)
    GEAR HOUSING ASSEMBLY
    (TRACKER GRAHITE GRAY)
  • 25
    46-77822A1 WATER PUMP BODY
    WATER PUMP BODY
  • 26
    48753 INSERT
    INSERT
  • 27
    26-38452 SEAL
    SEAL
  • 28
    12-38453 WASHER
    WASHER
  • 29
    12-29245 WASHER
    WASHER
  • 30
    11-8267119 NUT
    NUT
  • 31
    25-20273 RING-RUBBER (DRIVE SHAFT)
    RING-RUBBER (DRIVE SHAFT)
  • 32
    N.L.A. CARRIER (USE 60834A3)
    REFER TO SERVICE BULLETIN #90-15
    CARRIER (USE 60834A3)
    REFER TO SERVICE BULLETIN #90-15
  • 33
    10-79953Q04 SCREW
    SCREW
  • 34
    22-8M0058389 DRAIN SCREW
    SUPERSEDES TO ANOTHER PART NUMBER
    DRAIN SCREW
    SUPERSEDES TO ANOTHER PART NUMBER
  • 35
    12-191833 WASHER-SEALING
    WASHER-SEALING
  • 36
    88181 SLEEVE
    SLEEVE
  • 37
    15-92881A1 SHIM (.002-3-5-10-20)
    SHIM (.002-3-5-10-20)
  • 38
    31-77420A1 ROLLER BEARING ASSEMBLY
    ROLLER BEARING ASSEMBLY
  • 39
    45-98179 DRIVE SHAFT
    (SHORT) S/N USA-0D279349 & BELOW BEL- 9793444 & BELOW
    DRIVE SHAFT
    (SHORT) S/N USA-0D279349 & BELOW BEL- 9793444 & BELOW
  • 39
    45-98180 DRIVE SHAFT
    (LONG) S/N USA-0D279349 & BELOW BEL- 9793444 & BELOW
    DRIVE SHAFT
    (LONG) S/N USA-0D279349 & BELOW BEL- 9793444 & BELOW
  • 39
    45-981791 DRIVE SHAFT
    (SHORT) S/N USA-0D279350 & UP BEL 9793445 & UP
    DRIVE SHAFT
    (SHORT) S/N USA-0D279350 & UP BEL 9793445 & UP
  • 39
    45-981801 DRIVE SHAFT
    (LONG) S/N USA-0D279350 & UP BEL 9793445 & UP
    DRIVE SHAFT
    (LONG) S/N USA-0D279350 & UP BEL 9793445 & UP
  • 40
    24-20254 SPRING
    SPRING
  • 41
    17-30545 PIN
    PIN
  • 42
    76063A1 SHIFT SHAFT ASSEMBLY
    SHIFT SHAFT ASSEMBLY
  • 43
    53-29641 RETAINING RING
    RETAINING RING
  • 44
    25-25439 O-RING
    O-RING
  • 45
    23-77631A2 BUSHLNG ASSEMBLY
    BUSHLNG ASSEMBLY
  • 46
    26-8164641 OIL SEAL
    OIL SEAL
  • 47
    12-77674 WASHER
    WASHER
  • -
    27-85491A90 ENGINE GASKET SET
    ENGINE GASKET SET
  • -
    26-79831A1 SEAL KIT
    SEAL KIT
  • -
    46-77177A3 WATER PUMP REPAIR KIT
    WATER PUMP REPAIR KIT
