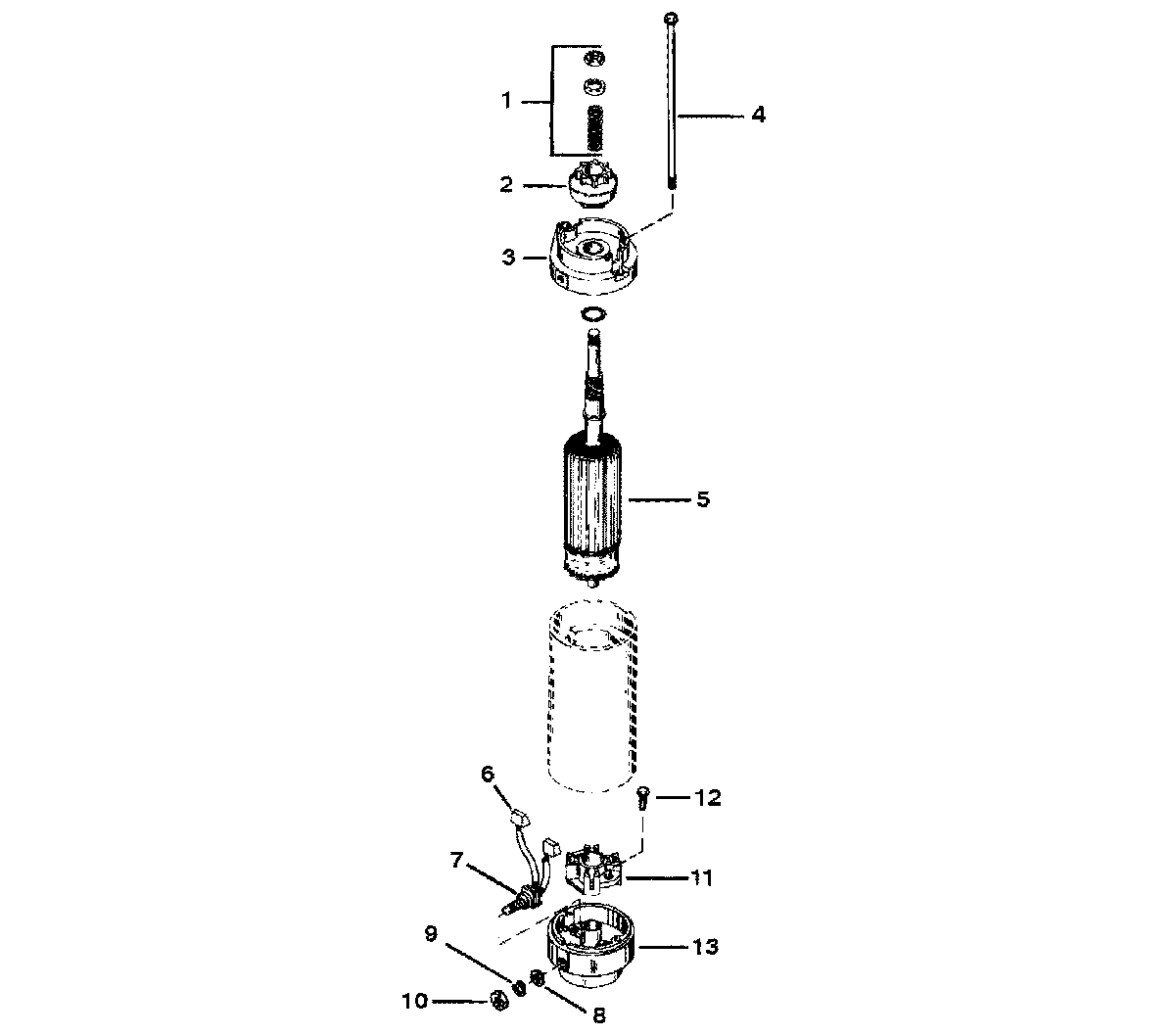

STARTER MOTOR ASSEMBLY для Mariner - 40 (4 CYL.) 9570790 AND UP
-
№АртикулНазвание
-
-50-898265005 STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
190643 DRIVE KITDRIVE KIT
-
2685753 DRIVE ASSEMBLYDRIVE ASSEMBLY
-
375660 PLATE-DRIVE ENDPLATE-DRIVE END
-
410-75379 BOLT-THRUBOLT-THRU
-
575382 ARMATUREARMATURE
-
6898265016 BRUSH SETBRUSH SET
-
723-57387 BUSHING-INSULATINGBUSHING-INSULATING
-
812-38013 WASHER-INPUT STUDWASHER-INPUT STUD
-
913-26992 LOCKWASHER-INPUT STUDLOCKWASHER-INPUT STUD
-
1011-20890 NUT-INPUT STUDNUT-INPUT STUD
-
11898265014 HOLDER-BRUSHHOLDER-BRUSH
-
12NSS SCREW (AMER. BOSCH #02441-22-SC-30SM)SCREW (AMER. BOSCH #02441-22-SC-30SM)
-
1375383 END CAP-COMMUTATOREND CAP-COMMUTATOR
