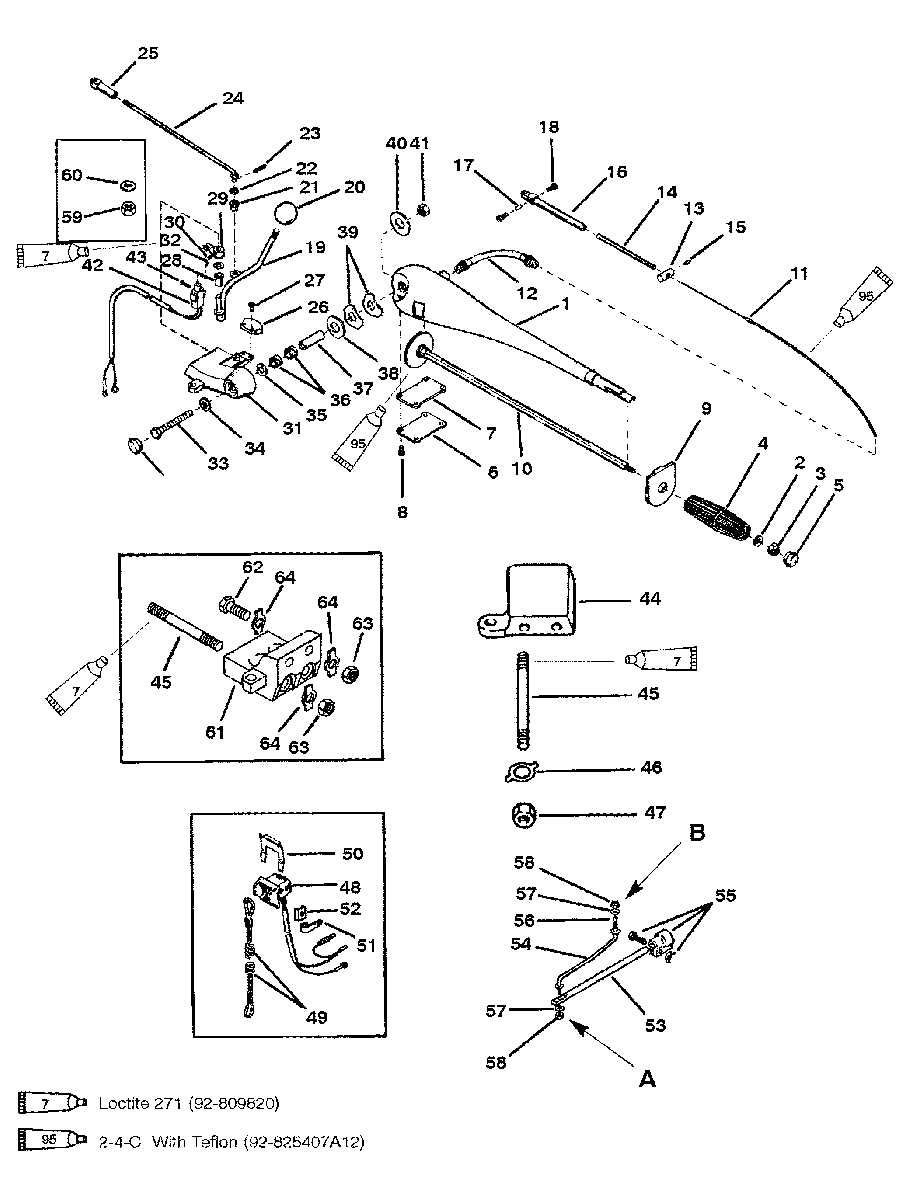

STEERING HANDLE ASSEMBLY для Mariner - 40 (4 CYL.) 9570790 AND UP

  • №
    Артикул
    Название
  • 31
    48404T8 BRACKET-STEERING HANDLE
    (BLACK)
    BRACKET-STEERING HANDLE
    (BLACK)
  • 31
    48404T8 BRACKET-STEERING HANDLE
    (GRAY)
    BRACKET-STEERING HANDLE
    (GRAY)
  • 31
    48404T8 BRACKET-STEERING HANDLE
    (TRACKER GRAPHITE GRAY)
    BRACKET-STEERING HANDLE
    (TRACKER GRAPHITE GRAY)
  • 32
    12-29629 WASHER (ELECTRIC HANDLE)
    WASHER (ELECTRIC HANDLE)
  • 33
    10-823597 SCREW-BRACKET
    SCREW-BRACKET
  • 34
    12-48477 WASHER-BRACKET (.505 I.D.)
    WASHER-BRACKET (.505 I.D.)
  • 35
    12-48526 WASHER-NYLON (.630 I.D.)
    WASHER-NYLON (.630 I.D.)
  • 36
    23-28919 BUSHING-NYLON (5/8 IN. I.D.)
    BUSHING-NYLON (5/8 IN. I.D.)
  • 37
    23-48525 SPACER-BRACKET
    SPACER-BRACKET
  • 38
    12-38000 WASHER-NYLON (1-35/64 IN. O.D.)
    WASHER-NYLON (1-35/64 IN. O.D.)
  • 39
    13-48478 WAVE WASHER-HANDLE BRACKET
    WAVE WASHER-HANDLE BRACKET
  • 40
    12-49636 WASHER-NYLON (1-3/4 IN. O.D.)
    WASHER-NYLON (1-3/4 IN. O.D.)
  • 41
    11-826709117 NUT-HANDLE BRACKET SCREW
    NUT-HANDLE BRACKET SCREW
  • 42
    87-8M0052926 SWITCH ASSEMBLY
    ELECTRIC HANDLE
    SWITCH ASSEMBLY
    ELECTRIC HANDLE
  • 43
    10-12110 SCREW-SWITCH
    ELECTRIC HANDLE
    SCREW-SWITCH
    ELECTRIC HANDLE
  • 44
    41130 SPACER-STEERING ARM
    DESIGN I
    SPACER-STEERING ARM
    DESIGN I
  • 45
    16-14651 STUD
    STUD
  • 46
    14-43589 TAB WASHER
    DESIGN I
    TAB WASHER
    DESIGN I
  • 47
    11-8M0042636 NUT-STUD
    DESIGN I
    NUT-STUD
    DESIGN I
  • 48
    87-11083A25 STOP SWITCH
    STOP SWITCH
  • 49
    8M0092850 LANYARD
    LANYARD
  • 50
    8M0032846 RETAINER
    RETAINER
  • 51
    54-26550 CLAMP-STOP SWITCH
    CLAMP-STOP SWITCH
  • 52
    8M0084613 C-WASHER
    C-WASHER
  • 53
    52148 PILOT ROD
    PILOT ROD
  • 54
    52150 LINK ROD
    LINK ROD
  • 55
    11-8M0103848 NUT ASSEMBLY
    NUT ASSEMBLY
  • 56
    23-521512 BUSHING
    BUSHING
  • 57
    12-8M0042642 WASHER
    WASHER
  • 58
    11-826709111 NUT
    NUT
  • 59
    11-33826 NUT
    NUT
  • 60
    12-34931 WASHER
    WASHER
  • 61
    8216782 ADAPTOR
    DESIGN II
    ADAPTOR
    DESIGN II
  • 62
    10-90072 SCREW
    DESIGN II
    SCREW
    DESIGN II
  • 63
    11-862903 NUT
    DESIGN II
    NUT
    DESIGN II
  • 64
    12-37828 WASHER
    DESIGN II
    WASHER
    DESIGN II
