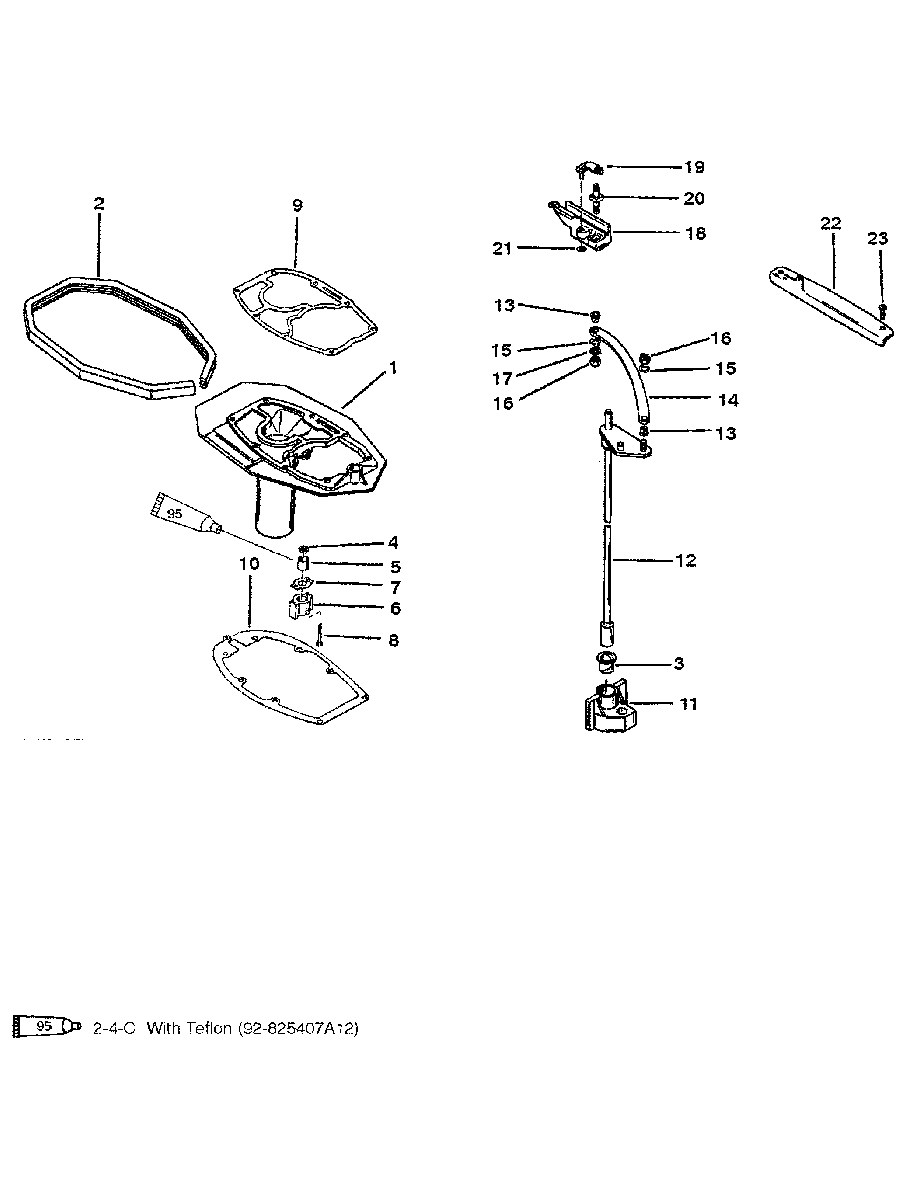

ADAPTOR PLATE/SHIFT SHAFT для Mariner - 40 (4 CYL.) 9570790 AND UP

  • №
    Артикул
    Название
  • 1
    18868A1 EXHAUST ADAPTOR PLATE
    EXHAUST ADAPTOR PLATE
  • 2
    158663 SEAL-ADAPTOR PLATE
    SEAL-ADAPTOR PLATE
  • 3
    23-27132 BUSHING-ADAPTOR PLATE
    BUSHING-ADAPTOR PLATE
  • 4
    12-38453 WASHER-NYLON
    WASHER-NYLON
  • 5
    26-38452 SEAL-RUBBER
    SEAL-RUBBER
  • 6
    79799 HOUSING-WATER INLET TUBE SEAL
    HOUSING-WATER INLET TUBE SEAL
  • 7
    27-797971 GASKET-HOUSING
    GASKET-HOUSING
  • 8
    10-79798 SCREW-HOUSING TO EXHAUST PLATE
    SCREW-HOUSING TO EXHAUST PLATE
  • 9
    27-796501 GASKET-POWERHEAD
    GASKET-POWERHEAD
  • 10
    27-385011 GASKET-EXHAUST ADAPTOR PLATE
    GASKET-EXHAUST ADAPTOR PLATE
  • 11
    933361 GUIDE-SHIFT SHAFT (AN ASSEMBLY AIDE)
    GUIDE-SHIFT SHAFT (AN ASSEMBLY AIDE)
  • 12
    19462A3 SHIFT SHAFT LEVER
    (SHORT)
    SHIFT SHAFT LEVER
    (SHORT)
  • 12
    19462A2 SHIFT SHAFT LEVER
    (LONG)
    SHIFT SHAFT LEVER
    (LONG)
  • 13
    23-42994 BUSHING
    BUSHING
  • 14
    812613 SHIFT LINK
    SHIFT LINK
  • 15
    13-29720 WAVE WASHER
    WAVE WASHER
  • 16
    11-826709109 NUT
    NUT
  • 17
    12-35462 WASHER
    WASHER
  • 18
    812616 SLIDER
    SLIDER
  • 19
    812615 RETAINER-SHIFT CABLE
    RETAINER-SHIFT CABLE
  • 20
    16-812612 STUD
    STUD
  • 21
    53-812607 RETAINING RING
    RETAINING RING
  • 22
    8126141 RETAINER-SLIDER
    RETAINER-SLIDER
  • 23
    10-878608 SCREW-RETAINER
    SCREW-RETAINER
  • -
    27-85491A90 ENGINE GASKET SET
    ENGINE GASKET SET
  • -
    814278T93 POWERHEAD, COMPLETE
    POWERHEAD, COMPLETE
