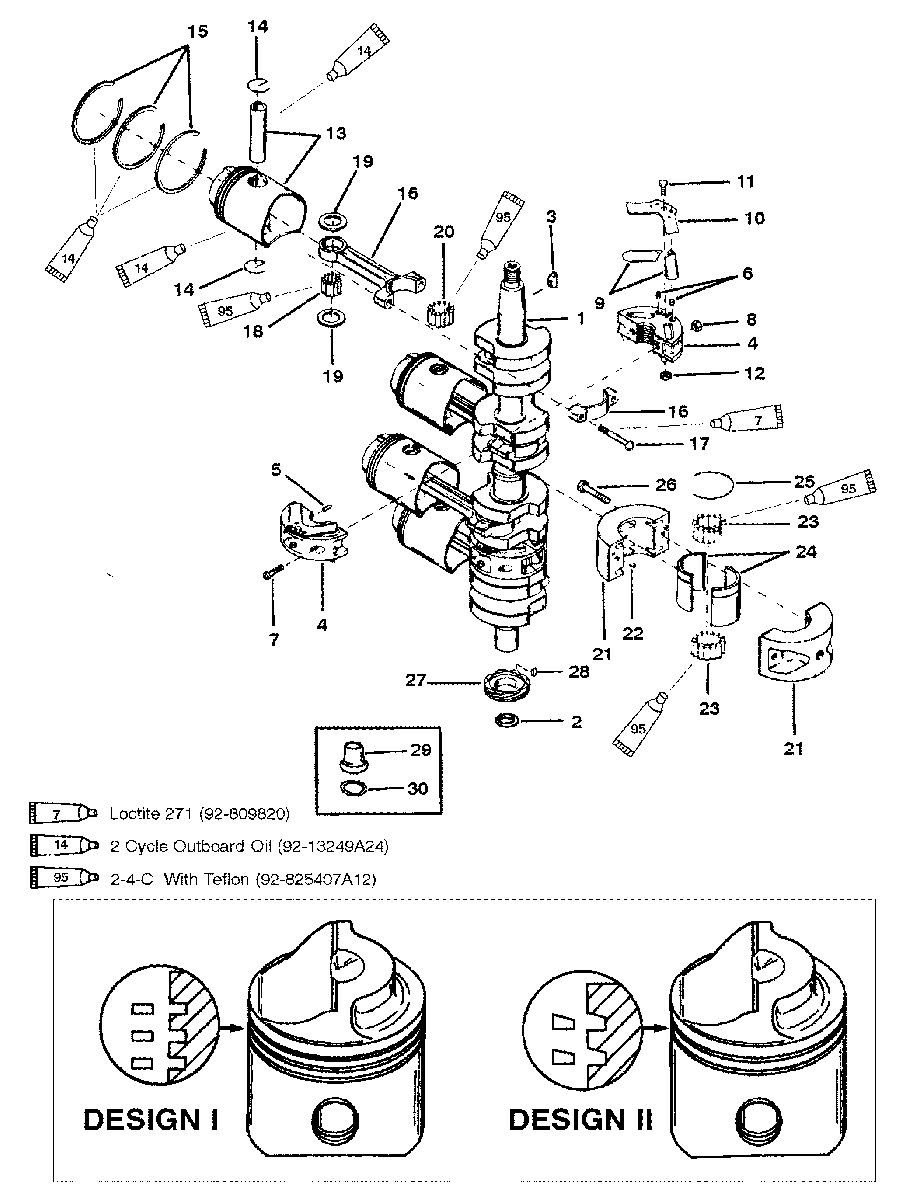

CRANKSHAFT, PISTONS, AND CONNECTING RODS для Mariner - 40 (4 CYL.) 9570790 AND UP

  • №
    Артикул
    Название
  • 1
    459-9758A2 CRANKSHAFT
    CRANKSHAFT
  • 2
    25-35276 O-RING
    O-RING
  • 3
    28-20094 KEY-CRANKSHAFT
    KEY-CRANKSHAFT
  • 4
    534-3267T25 MAIN BEARING ASSEMBLY (VALVE TYPE)
    MAIN BEARING ASSEMBLY (VALVE TYPE)
  • 5
    17-20032 DOWEL PIN-MAIN BEARING
    DOWEL PIN-MAIN BEARING
  • 6
    17-65855 DOWEL PIN-REED LOCATING
    DOWEL PIN-REED LOCATING
  • 7
    10-25764 SCREW-MAIN BEARING
    SCREW-MAIN BEARING
  • 8
    11-20110 NUT-MAIN BEARING SCREW
    NUT-MAIN BEARING SCREW
  • 9
    34-88498A1 REED SET-MATCHED
    REED SET-MATCHED
  • 10
    34-822839 REED STOP
    REED STOP
  • 11
    10-77280 SCREW-REED STOP (9/16 IN.)
    SCREW-REED STOP (9/16 IN.)
  • 12
    11-20110 NUT-REED STOP SCREW
    NUT-REED STOP SCREW
  • 13
    780-9229A7 PISTON/PISTON PIN
    (STANDARD) DESIGN II
    PISTON/PISTON PIN
    (STANDARD) DESIGN II
  • 13
    780-9229A10 PISTON/PISTON PIN
    (.015 O.S) DESIGN II
    PISTON/PISTON PIN
    (.015 O.S) DESIGN II
  • 13
    780-9229A11 PISTON/PISTON PIN
    (.030 O.S.) DESIGN II
    PISTON/PISTON PIN
    (.030 O.S.) DESIGN II
  • 13
    780-9229A7 PISTON/PISTON PIN
    (STANDARD) DESIGN I
    PISTON/PISTON PIN
    (STANDARD) DESIGN I
  • 13
    780-9229A10 PISTON/PISTON PIN
    (.015 O.S.) DESIGN I
    PISTON/PISTON PIN
    (.015 O.S.) DESIGN I
  • 13
    780-9229A11 PISTON/PISTON PIN
    (.030 O.S.) DESIGN I
    PISTON/PISTON PIN
    (.030 O.S.) DESIGN I
  • 14
    40-828119 LOCK RING-PISTON PIN
    LOCK RING-PISTON PIN
  • 15
    39-18653A12 PISTON RING
    (STANDARD) DESIGN II
    PISTON RING
    (STANDARD) DESIGN II
  • 15
    39-18653A1 PISTON RING
    (.015 O.S.) DESIGN II
    PISTON RING
    (.015 O.S.) DESIGN II
  • 15
    39-18653A2 PISTON RING
    (.030 O.S.) DESIGN II
    PISTON RING
    (.030 O.S.) DESIGN II
  • 15
    39-27841A12 PISTON RING
    (STANDARD) DESIGN I
    PISTON RING
    (STANDARD) DESIGN I
  • 15
    39-28616A12 PISTON RING
    (.015 O.S.) DESIGN I
    PISTON RING
    (.015 O.S.) DESIGN I
  • 15
    39-89822A12 PISTON RING
    (.030 O.S.) DESIGN I
    PISTON RING
    (.030 O.S.) DESIGN I
  • 16
    632-7621A3 CONNECTING ROD AND CAP ASSEMBLY
    CONNECTING ROD AND CAP ASSEMBLY
  • 17
    10-91012 SCREW-CAP TO ROD
    SCREW-CAP TO ROD
  • 18
    29-20063 NEEDLE BEARING-PISTON PIN
    NEEDLE BEARING-PISTON PIN
  • 19
    12-47275 WASHER-NEEDLE LOCATING
    WASHER-NEEDLE LOCATING
  • 20
    29-20046T NEEDLE BEARING-CRANK PIN
    NEEDLE BEARING-CRANK PIN
  • 21
    547-7060A2 CENTER MAIN BEARING ASSEMBLY
    CENTER MAIN BEARING ASSEMBLY
  • 22
    17-20032 DOWEL PIN-CENTER MAIN BEARING
    DOWEL PIN-CENTER MAIN BEARING
  • 23
    29-714221 NEEDLE BEARING
    NEEDLE BEARING
  • 24
    26113T RACE-OUTER
    RACE-OUTER
  • 25
    53-26933 SNAP RING-OUTER RACE
    SNAP RING-OUTER RACE
  • 26
    10-76630 SCREW-CENTER MAIN BEARING (1 IN.)
    SCREW-CENTER MAIN BEARING (1 IN.)
  • 27
    43-43019 DRIVER GEAR
    DRIVER GEAR
  • 28
    28-91800 KEY-DRIVER GEAR
    KEY-DRIVER GEAR
  • 29
    60834A3 CARRIER ASSEMBLY
    DESIGN I/II
    CARRIER ASSEMBLY
    DESIGN I/II
  • 30
    64254001 SEAL
    DESIGN I/II
    SEAL
    DESIGN I/II
  • -
    814278T93 POWERHEAD, COMPLETE
    POWERHEAD, COMPLETE
