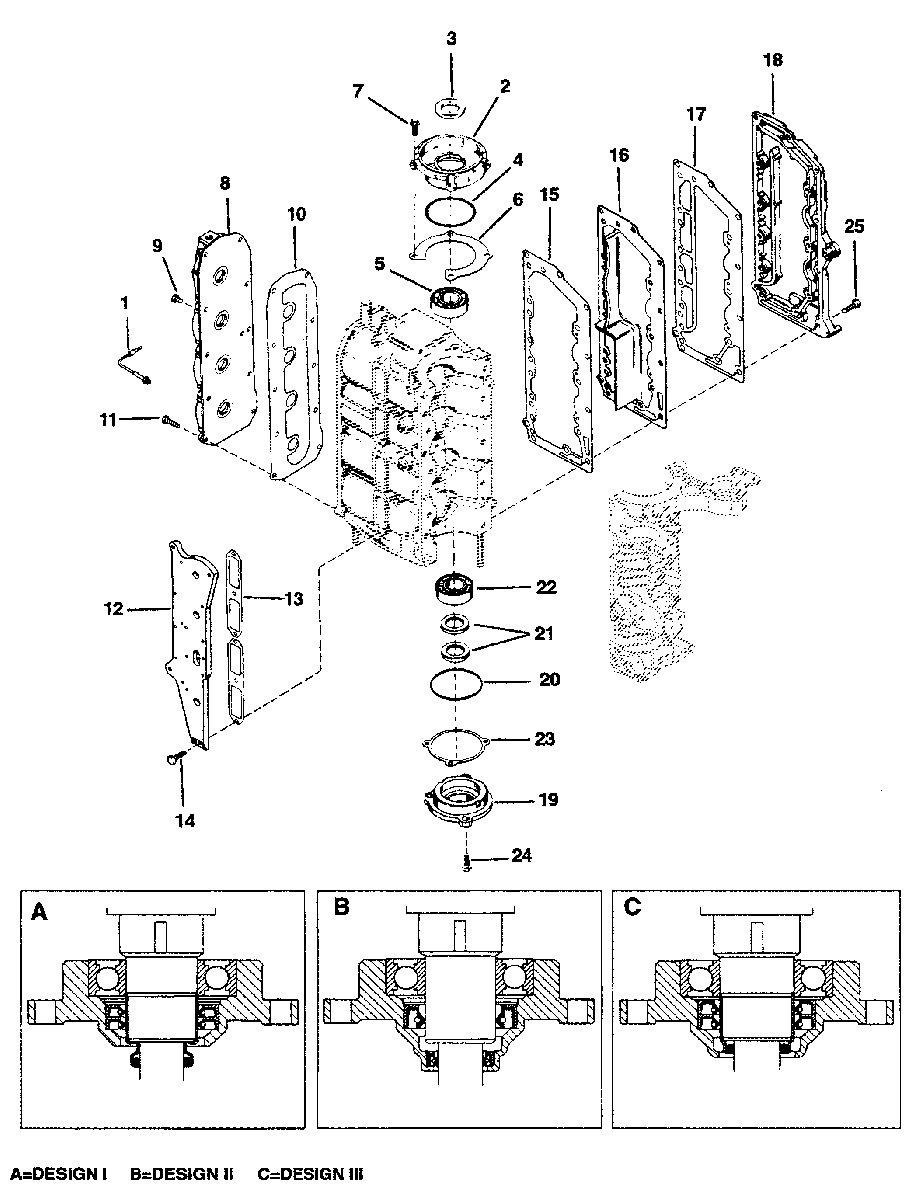

END CAPS AND EXHAUST COVER для Mariner - 40 (4 CYL.) 9570790 AND UP

  • №
    Артикул
    Название
  • 1
    87-16775A3 TEMPERATURE SWITCH (ELECTRIC)
    TEMPERATURE SWITCH (ELECTRIC)
  • 2
    1160-5826A2 END CAP ASSEMBLY-UPPER
    END CAP ASSEMBLY-UPPER
  • 3
    26-41953 OIL SEAL-UPPER END CAP
    OIL SEAL-UPPER END CAP
  • 4
    25-20081 O-RING-UPPER END CAP
    O-RING-UPPER END CAP
  • 5
    30-63742T BALL BEARING-UPPER END CAP
    BALL BEARING-UPPER END CAP
  • 6
    15-72538A1 SHIM-UPPER END CAP (.005-10)
    SHIM-UPPER END CAP (.005-10)
  • 7
    10-824941 SCREW-UPPER END CAP (3/4 IN.)
    SCREW-UPPER END CAP (3/4 IN.)
  • 8
    1017-8360A1 COVER ASSEMBLY-CYLINDER BLOCK
    COVER ASSEMBLY-CYLINDER BLOCK
  • 9
    22-328022 PIPE PLUG-CYLINDER BLOCK COVER
    PIPE PLUG-CYLINDER BLOCK COVER
  • 10
    27-437772 GASKET-CYLINDER BLOCK COVER
    GASKET-CYLINDER BLOCK COVER
  • 11
    10-76630 SCREW-CYLINDER BLOCK COVER (1 IN.)
    SCREW-CYLINDER BLOCK COVER (1 IN.)
  • 12
    18827T4 COVER ASSEMBLY-TRANSFER PORT
    COVER ASSEMBLY-TRANSFER PORT
  • 13
    27-279361 GASKET-TRANSFER PORT COVER
    GASKET-TRANSFER PORT COVER
  • 14
    10-20540 SCREW-TRANSFER PORT COVER (5/8 IN.)
    SCREW-TRANSFER PORT COVER (5/8 IN.)
  • 15
    27-854913 GASKET-CYLINDER BLOCK TO BAFFLE PLATE
    GASKET-CYLINDER BLOCK TO BAFFLE PLATE
  • 16
    90421T01 PLATE-BAFFLE-EXHAUST MANIFOLD
    PLATE-BAFFLE-EXHAUST MANIFOLD
  • 17
    27-854924 GASKET-BAFFLE PLATE TO EXHAUST COVER
    GASKET-BAFFLE PLATE TO EXHAUST COVER
  • 18
    77381 COVER-EXHAUST MANIFOLD
    COVER-EXHAUST MANIFOLD
  • 19
    1158-9843T2 END CAP ASSEMBLY-LOWER
    (DESIGN I/II END CAP) S/N USA-0D279349 & BELOW / BEL-9793444 & BELOW
    END CAP ASSEMBLY-LOWER
    (DESIGN I/II END CAP) S/N USA-0D279349 & BELOW / BEL-9793444 & BELOW
  • 20
    25-32546 O-RING-LOWER END CAP
    (DESIGN I/II END CAP) S/N USA-0D279349 & BELOW / BEL-9793444 & BELOW
    O-RING-LOWER END CAP
    (DESIGN I/II END CAP) S/N USA-0D279349 & BELOW / BEL-9793444 & BELOW
  • 21
    26-41953 OIL SEAL
    (DESIGN I END CAP) S/N USA-0D279349 & BELOW / BEL-9793444 & BELOW
    OIL SEAL
    (DESIGN I END CAP) S/N USA-0D279349 & BELOW / BEL-9793444 & BELOW
  • 21
    26-66301 OIL SEAL
    (DESIGN II END CAP) S/N USA-0D279349 & BELOW / BEL-9793444 & BELOW
    OIL SEAL
    (DESIGN II END CAP) S/N USA-0D279349 & BELOW / BEL-9793444 & BELOW
  • 21
    26-41953 OIL SEAL
    (DESIGN II END CAP) S/N USA-0D279349 & BELOW / BEL-9793444 & BELOW
    OIL SEAL
    (DESIGN II END CAP) S/N USA-0D279349 & BELOW / BEL-9793444 & BELOW
  • 22
    30-63742T BALL BEARING-LOWER END CAP
    (DESIGN I/II END CAP) S/N USA-0D279349 & BELOW / BEL-9793444 & BELOW
    BALL BEARING-LOWER END CAP
    (DESIGN I/II END CAP) S/N USA-0D279349 & BELOW / BEL-9793444 & BELOW
  • 19
    1158-9843T3 END CAP ASSEMBLY-LOWER
    (DESIGN III END CAP) S/N USA-0D279350 & UP / BEL-9793445 & UP
    END CAP ASSEMBLY-LOWER
    (DESIGN III END CAP) S/N USA-0D279350 & UP / BEL-9793445 & UP
  • 20
    25-32546 O-RING-LOWER END CAP
    (DESIGN III END CAP) S/N USA-0D279350 & UP / BEL-9793445 & UP
    O-RING-LOWER END CAP
    (DESIGN III END CAP) S/N USA-0D279350 & UP / BEL-9793445 & UP
  • 21
    26-41953 OIL SEAL
    (DESIGN III END CAP) S/N USA-0D279350 & UP / BEL-9793445 & UP
    OIL SEAL
    (DESIGN III END CAP) S/N USA-0D279350 & UP / BEL-9793445 & UP
  • 22
    30-63742T BALL BEARING-LOWER END CAP
    (DESIGN III END CAP) S/N USA-0D279350 & UP / BEL-9793445 & UP
    BALL BEARING-LOWER END CAP
    (DESIGN III END CAP) S/N USA-0D279350 & UP / BEL-9793445 & UP
  • 23
    15-20085A1 SHIM-LOWER END CAP (.005-10)
    SHIM-LOWER END CAP (.005-10)
  • 24
    10-28782 SCREW-LOWER END CAP
    SCREW-LOWER END CAP
  • 25
    10-37562 SCREW-MANIFOLD COVER TO CYLINDER BLOCK (1 IN.) 200
    SCREW-MANIFOLD COVER TO CYLINDER BLOCK (1 IN.) 200
  • -
    27-85491A90 ENGINE GASKET SET
    ENGINE GASKET SET
  • -
    814278T93 POWERHEAD, COMPLETE
    POWERHEAD, COMPLETE
