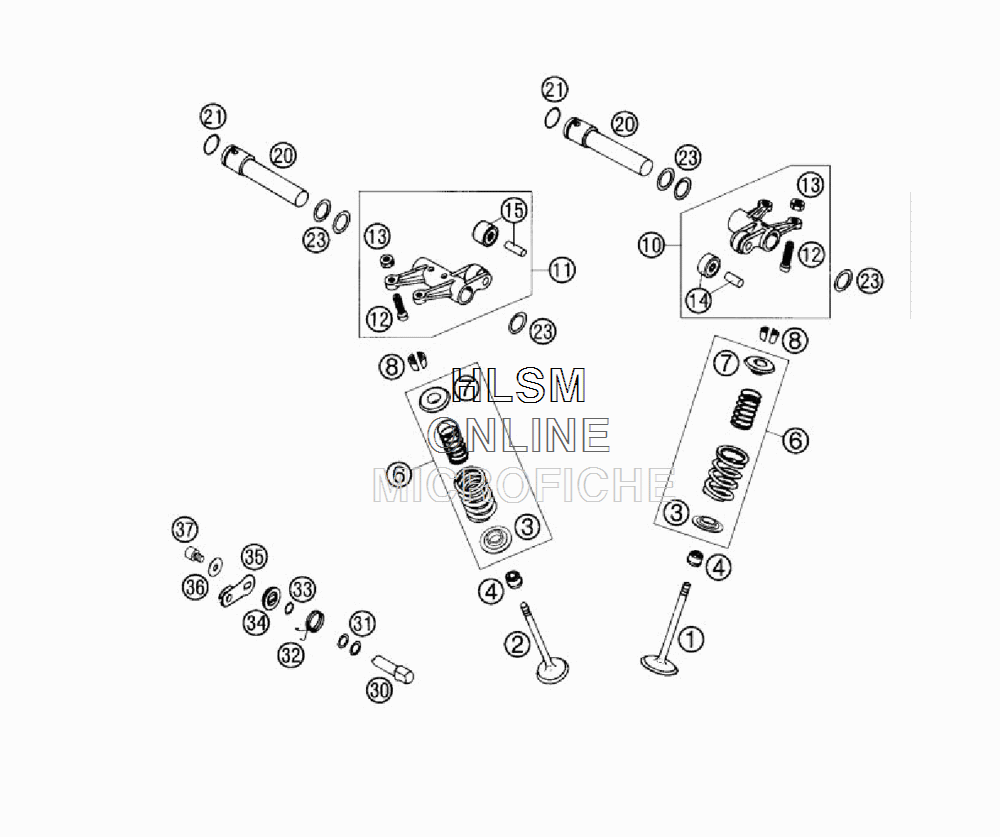

VALVE DRIVE для Ktm 660 SMC - 2004 года выпуска`
-
№АртикулНазвание
-
158036030000 INTAKE VALVE D=36 MMINTAKE VALVE D=36 MM
-
258536031000 EXHAUST VALVE D=32 MMEXHAUST VALVE D=32 MM
-
357336036000 VALVE SPRING HOLDER GRADEDVALVE SPRING HOLDER GRADED
-
458036028000 VALVE-STEAM SEALINGVALVE-STEAM SEALING
-
658536029044 VALVE SPRING KITVALVE SPRING KIT
-
758036032700 VALVE-SPRING RETAINER ALUVALVE-SPRING RETAINER ALU
-
858036033000 VALVE COLLET MK7VALVE COLLET MK7
-
1058536060044 ROCKER ARM INTAKE CPL.ROCKER ARM INTAKE CPL.
-
1158536061044 ROCKER ARM EXHAUST CPL.ROCKER ARM EXHAUST CPL.
-
1258036062600 ADJUSTMENT SCREW CPL. M 7X0,75ADJUSTMENT SCREW CPL. M 7X0,75
-
130934070756 HEXAGON NUT DIN0934-M 7X0,75HEXAGON NUT DIN0934-M 7X0,75
-
1458036061090 ROCKER ARM ROLLER CPL. INTAKEROCKER ARM ROLLER CPL. INTAKE
-
1558336061090 ROCKER ARM ROLLER CPL. EXHAUSTROCKER ARM ROLLER CPL. EXHAUST
-
2058536056100 ROCKER ARM SHAFT L=96MM 7,2MMROCKER ARM SHAFT L=96MM 7,2MM
-
2158036095000 O-RING 15,08 X 2,62 NBR 70O-RING 15,08 X 2,62 NBR 70
-
230988162202 THRUST WASH.DIN0988-16X22X0,20THRUST WASH.DIN0988-16X22X0,20
-
230988162205 THRUST WASH. DIN0988-16X22X0,5THRUST WASH. DIN0988-16X22X0,5
-
230988162210 THRUST WASHER DIN0988-16X22X1THRUST WASHER DIN0988-16X22X1
-
3058036050100 DECOMPRESSION SHAFTDECOMPRESSION SHAFT
-
3154334015000 WASHER 10X14X0,5 STEELWASHER 10X14X0,5 STEEL
-
3154334015100 WASHER 10X14X0,3 STEELWASHER 10X14X0,3 STEEL
-
3154334015200 WASHER 10X14X0,15 STEELWASHER 10X14X0,15 STEEL
-
3258036059200 DECOMP.LEVER SPRINGDECOMP.LEVER SPRING
-
330770100221 O-RING 10,00X2,20 SILICONEO-RING 10,00X2,20 SILICONE
-
3458036048000 COVER DISKCOVER DISK
-
3558036049500 DECOMPRESSION LEVERDECOMPRESSION LEVER
-
360021060003 WASHER DIN9021-A 6,4WASHER DIN9021-A 6,4
-
370912060103 AH SCREW DIN0912-M 6X10AH SCREW DIN0912-M 6X10
