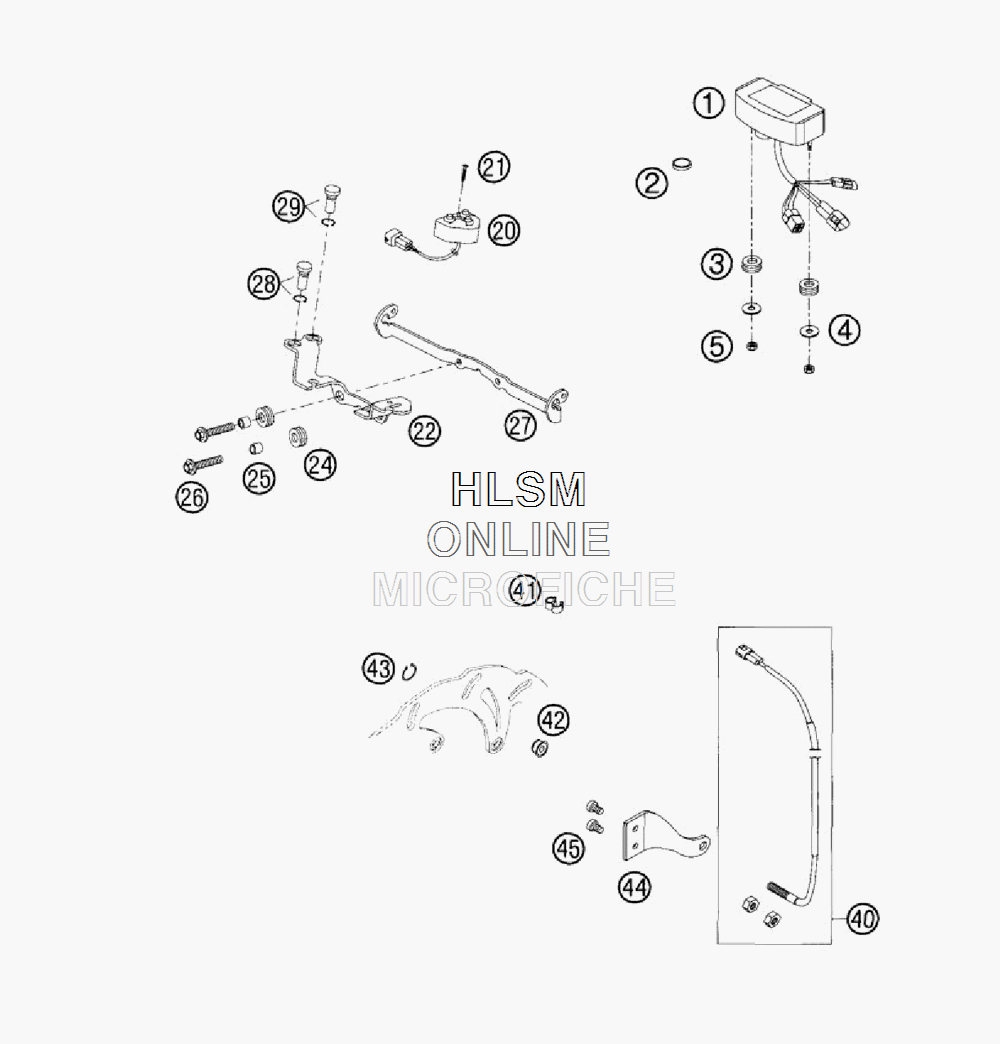

SPEEDOMETER M.A.E для Ktm 660 SMC - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    58314069400 SPEEDOMETER KM/H F. 17
    SPEEDOMETER KM/H F. 17
  • 1
    58314069500 SPEEDOMETER MPH F. 17
    SPEEDOMETER MPH F. 17
  • 2
    58314068000 BATTERY F. SPEEDOM. M.A.E.
    BATTERY F. SPEEDOM. M.A.E.
  • 3
    58214069051 RUBBER GROMMET 16X10,8X3
    RUBBER GROMMET 16X10,8X3
  • 4
    0021050003 WASHER DIN9021-A 5,3
    WASHER DIN9021-A 5,3
  • 5
    0985050003 SELF LOCKING NUT DIN0985-M 5
    SELF LOCKING NUT DIN0985-M 5
  • 20
    58314069200 TRIPMASTER-SWITCH DIGI-SPEEDO.
    TRIPMASTER-SWITCH DIGI-SPEEDO.
  • 21
    0965040251 FLAT HEAD SCREW M4X25
    FLAT HEAD SCREW M4X25
  • 22
    58314060400 SPEEDOMET.BRACKET 660SM
    SPEEDOMET.BRACKET 660SM
  • 24
    31008060000 RUBBER SLEEVE D=8MM OPEN
    RUBBER SLEEVE D=8MM OPEN
  • 25
    58011039000 SPACER BUSHING 6,5 X 8 X 7
    SPACER BUSHING 6,5 X 8 X 7
  • 26
    0014060253 HH COLLAR SCREW M 6X25 WS=8
    HH COLLAR SCREW M 6X25 WS=8
  • 27
    58314033100 FLASHER BRACKET
    FLASHER BRACKET
  • 28
    58011024300 FLASHER INDICAT.LIGHT GREEN
    FLASHER INDICAT.LIGHT GREEN
  • 29
    58011021300 H.BEAM INDICATOR LIGHT BLUE
    H.BEAM INDICATOR LIGHT BLUE
  • 40
    58314069251 CABLE FOR DIGITAL SPEEDOM.
    CABLE FOR DIGITAL SPEEDOM.
  • 41
    55011022100 CLAMP 6/8MM BLACK
    CLAMP 6/8MM BLACK
  • 42
    58214069050 SENSOR MAGNET
    SENSOR MAGNET
  • 43
    0471009104 CIRCLIP DIN0471- 9X1 INOX
    CIRCLIP DIN0471- 9X1 INOX
  • 44
    58314052000 BRACKET F. SENSOR SM
    BRACKET F. SENSOR SM
  • 45
    0084040063 CYL.HEAD SCREW DIN0084-M 4X 6A
    CYL.HEAD SCREW DIN0084-M 4X 6A
