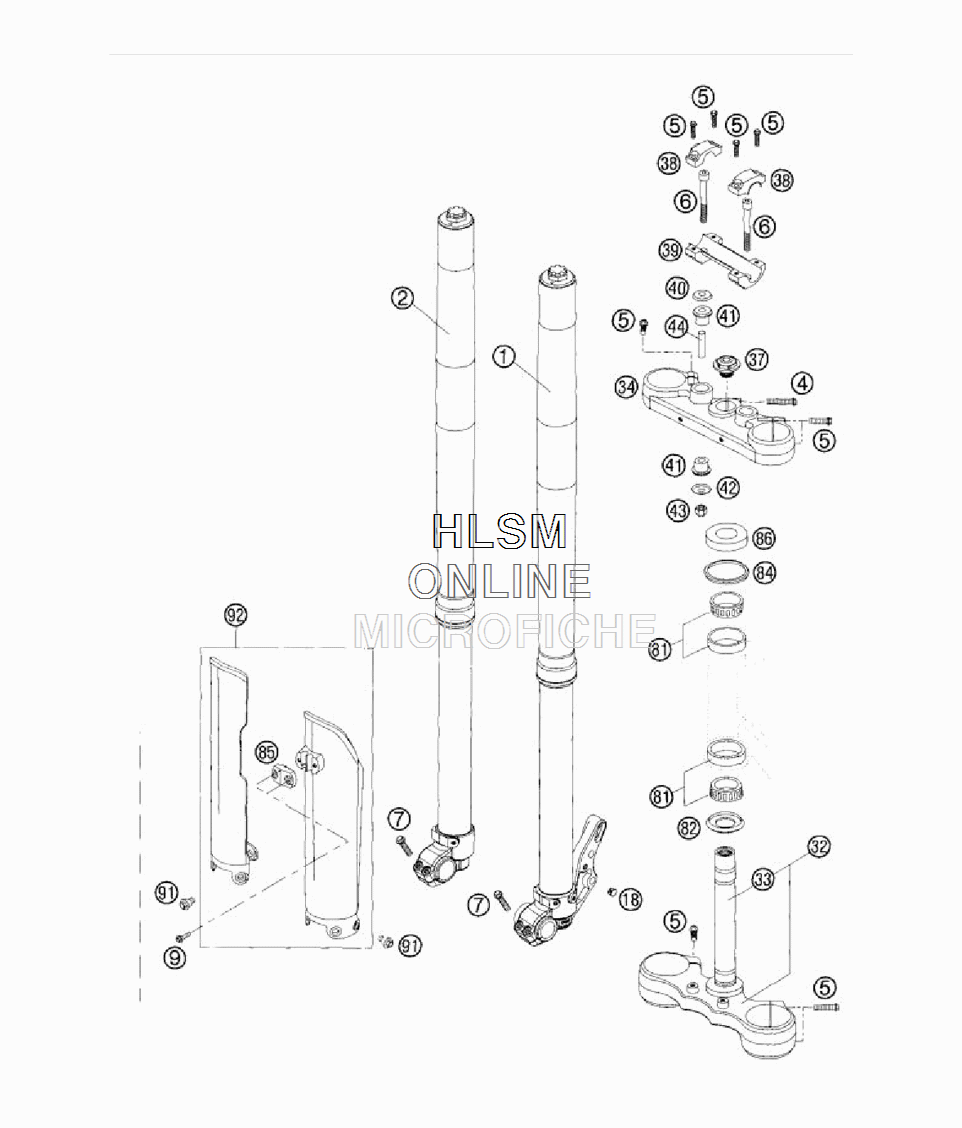

FRONT FORK - 48 для Ktm 660 SMC - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    1418Y750LS FORK LEG L/S WP48 SM
    FORK LEG L/S WP48 SM
  • 2
    1418Y750RS FORK LEG R/S WP48 SM
    FORK LEG R/S WP48 SM
  • 4
    0015080353 HH COLLAR SCREW M 8X35 WS=10
    HH COLLAR SCREW M 8X35 WS=10
  • 5
    0015080253 HH COLLAR SCREW M 8X25 WS=10
    HH COLLAR SCREW M 8X25 WS=10
  • 6
    0984100706 AH SCREW DIN6912-M10X70 10.9
    AH SCREW DIN6912-M10X70 10.9
  • 7
    0015080253 HH COLLAR SCREW M 8X25 WS=10
    HH COLLAR SCREW M 8X25 WS=10
  • 9
    0017060203 SPECIAL SCREW T60 6X20 WS=6
    SPECIAL SCREW T60 6X20 WS=6
  • 18
    58301098000 PLASTIC CAP 3/8 2663
    PLASTIC CAP 3/8 2663
  • 32
    58401132100 BOT.TRIPLE CLAMP CPL. SM
    BOT.TRIPLE CLAMP CPL. SM
  • 33
    50101033100 FORK TUBE L=244
    FORK TUBE L=244
  • 34
    58401234000 TOP TRIPLE CLAMP 660 SM
    TOP TRIPLE CLAMP 660 SM
  • 37
    50301036000 STEER.HEAD SCREW M20X1,5 WS=27
    STEER.HEAD SCREW M20X1,5 WS=27
  • 38
    59001038200 HANDLEBAR CLAMP D=28MM
    HANDLEBAR CLAMP D=28MM
  • 39
    59001039100 HANDLEBAR SUPPORT 28MM
    HANDLEBAR SUPPORT 28MM
  • 40
    56401042000 WASHER 10,5X32X2
    WASHER 10,5X32X2
  • 41
    56401040000 RUBBER BUSHING
    RUBBER BUSHING
  • 42
    56401142000 WASHER 10,5X31
    WASHER 10,5X31
  • 43
    0982100003 SELF LOCK.NUT DIN0982-M10 HIGH
    SELF LOCK.NUT DIN0982-M10 HIGH
  • 44
    56401041100 SPACER TUBE 10,2X12X44
    SPACER TUBE 10,2X12X44
  • 81
    54201081000 TAPERED ROLLER BEARING CPL.
    TAPERED ROLLER BEARING CPL.
  • 82
    54601084100 O-RING SUPPORT W SEALING LIP
    O-RING SUPPORT W SEALING LIP
  • 84
    54601184000 STEARING HEAD GASKET TOP
    STEARING HEAD GASKET TOP
  • 85
    58201085000 CLAMP F. SPEED CABLE D=8MM
    CLAMP F. SPEED CABLE D=8MM
  • 86
    54201086000 STEERING HEAD COVER
    STEERING HEAD COVER
  • 91
    59001092050 SPECIAL SCREW M6X12,5 WS=8
    SPECIAL SCREW M6X12,5 WS=8
  • 92
    5900109400030 FORK PROTECT. L/S+R/S BLACK
    FORK PROTECT. L/S+R/S BLACK
