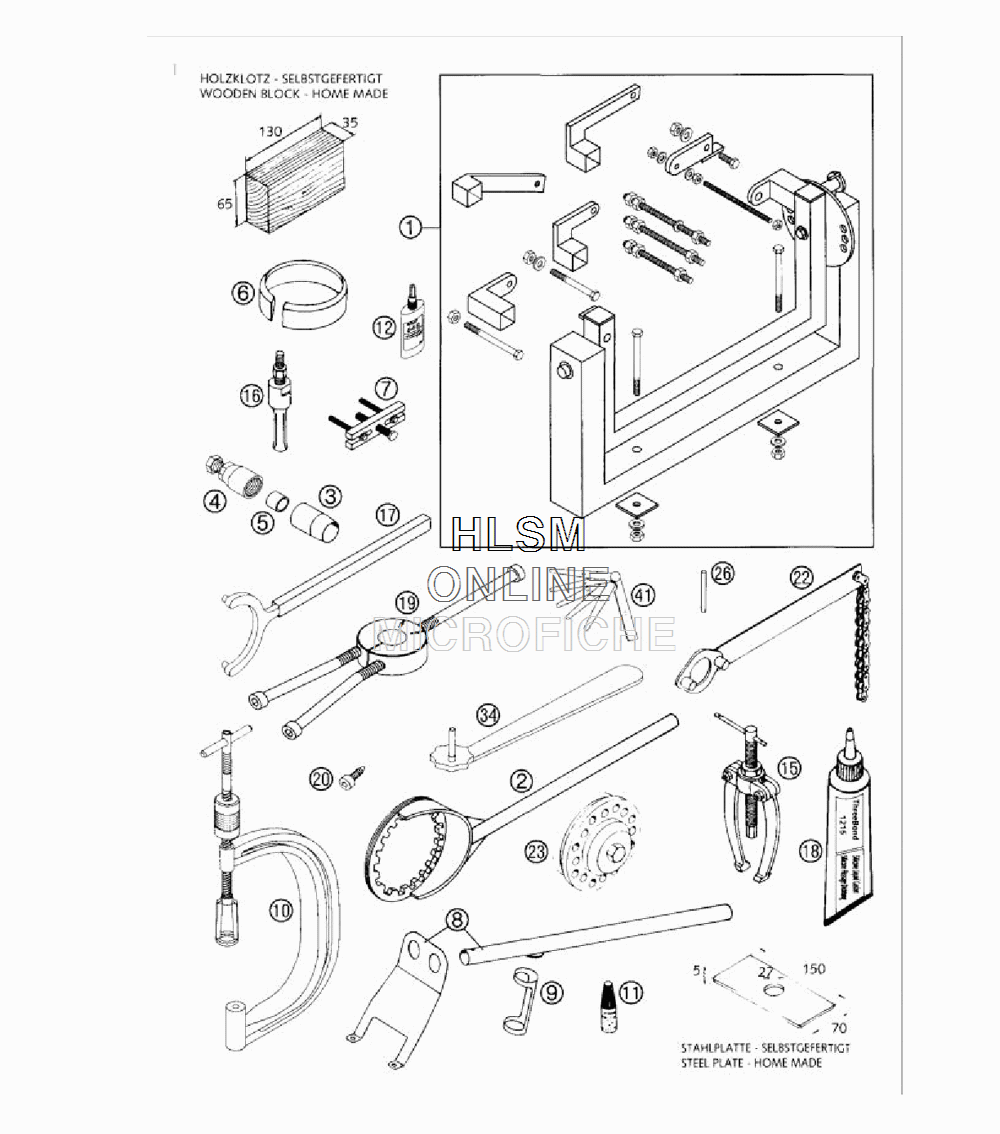

SPECIAL TOOLS для Ktm 660 SMC - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    56012001000 UNIVERSAL MOUNTING RACK
    UNIVERSAL MOUNTING RACK
  • 2
    58329003000 CLUTCH HOLDER D=160MM
    CLUTCH HOLDER D=160MM
  • 3
    58012005025 MOUNTING SLEEVE D=25MM (FOR CRANKSHAFT SEAL L/S)
    MOUNTING SLEEVE D=25MM (FOR CRANKSHAFT SEAL L/S)
  • 4
    58429009000 MAGNETO EXTRACTOR
    MAGNETO EXTRACTOR
  • 5
    51012016000 PROTECTION CAP CRANKSHAFT M12
    PROTECTION CAP CRANKSHAFT M12
  • 6
    58529015102 PISTON RING COMPRESSOR D=102MM
    PISTON RING COMPRESSOR D=102MM
  • 7
    59029021044 EXTRACTOR PRIM. GEAR CPL. (WITH M4, M5, M6 SCREWS)
    EXTRACTOR PRIM. GEAR CPL. (WITH M4, M5, M6 SCREWS)
  • 8
    58012019000 VALVE INSTALLATION KIT
    VALVE INSTALLATION KIT
  • 9
    6276470 PUSH INSERT
    PUSH INSERT
  • 10
    59029019000 VALVE SPRING LEVER
    VALVE SPRING LEVER
  • 11
    6899785 LOCTITE 243 BLUE 6CCM
    LOCTITE 243 BLUE 6CCM
  • 12
    58429059000 LOCTITE 648 GREEN 24ML
    LOCTITE 648 GREEN 24ML
  • 15
    15112017000 BUSHING EXTRACTOR
    BUSHING EXTRACTOR
  • 16
    15112018000 INTERN.BEAR.PULLER 12-16 MM
    INTERN.BEAR.PULLER 12-16 MM
  • 16
    15112018100 INTERN.BEAR.PULLER 18-23 MM
    INTERN.BEAR.PULLER 18-23 MM
  • 17
    58429012000 HOLDING WRENCH FOR WHEEL
    HOLDING WRENCH FOR WHEEL
  • 18
    309098 SILICON GASKET THREE-BOND
    SILICON GASKET THREE-BOND
  • 19
    58429037043 MOUNTING TOOL F.BEARING NJ 207
    MOUNTING TOOL F.BEARING NJ 207
  • 19
    58429037040 MOUNTING TOOL F.BEARING NJ 306
    MOUNTING TOOL F.BEARING NJ 306
  • 20
    58030080000 LOCATING SCREW M8 L=23
    LOCATING SCREW M8 L=23
  • 22
    51012012000 HOLDING SPANNER FOR SPROCKET
    HOLDING SPANNER FOR SPROCKET
  • 23
    54629027000 RIVETTING TOOL FOR CLUTCH
    RIVETTING TOOL FOR CLUTCH
  • 26
    58029026007 LIMIT PLUG GAUGE F.VALVE GUIDE (D=7,05 MM)
    LIMIT PLUG GAUGE F.VALVE GUIDE (D=7,05 MM)
  • 34
    59029034000 WRENCH F.MIXTURE CONTROL SCREW
    WRENCH F.MIXTURE CONTROL SCREW
  • 41
    59029041000 FEEL. GAUGE SET 10,12,15,20,25
    FEEL. GAUGE SET 10,12,15,20,25
