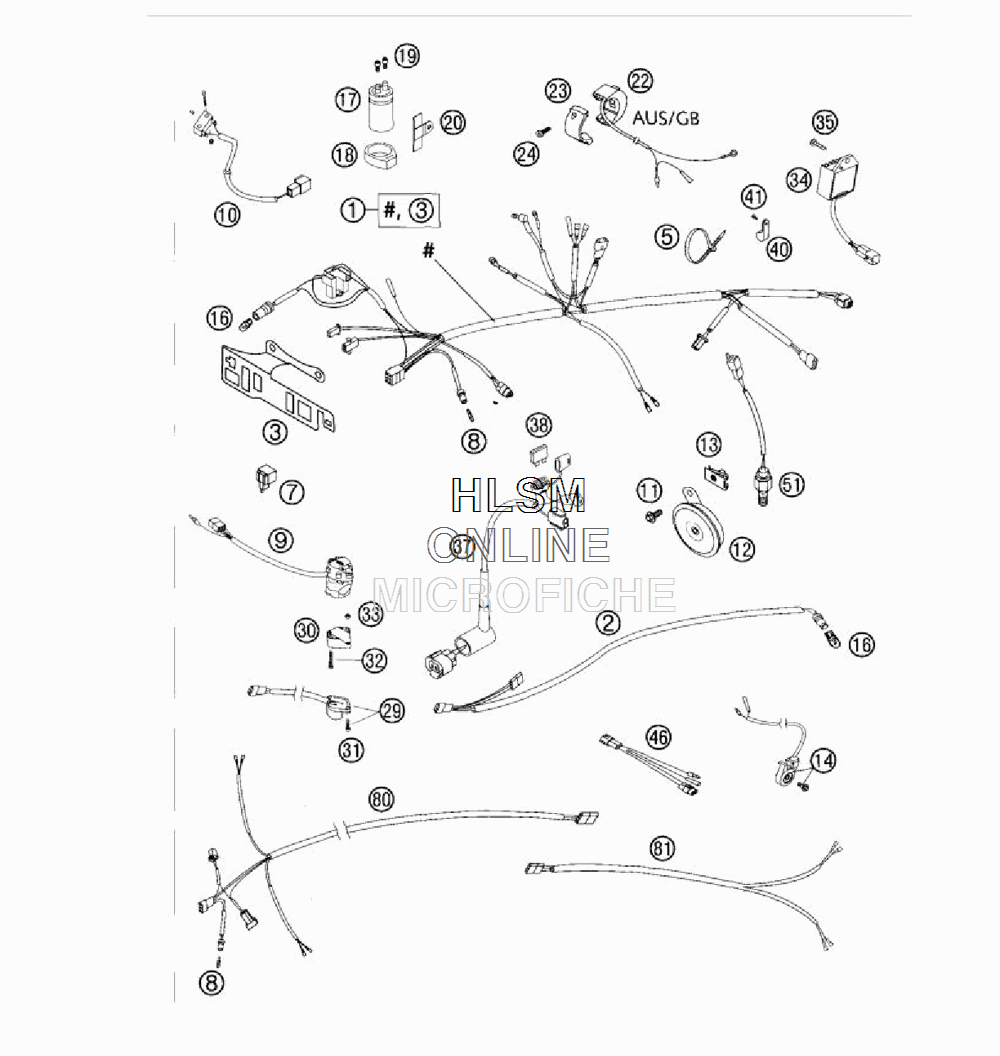

WIRING HARNESS для Ktm 660 SMC - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    58311375500 WIRING HARNESS SMC CPL.
    WIRING HARNESS SMC CPL.
  • 2
    58411047000 WIRING H. NUMBER P. LIGHT
    WIRING H. NUMBER P. LIGHT
  • 3
    59011083000 SUPPORT BRACKET BLACK
    SUPPORT BRACKET BLACK
  • 5
    44011076100 CABLE TIE 100/2,5MM BLACK
    CABLE TIE 100/2,5MM BLACK
  • 5
    44011076200 CABLE TIE 200/3,6MM BLACK
    CABLE TIE 200/3,6MM BLACK
  • 5
    44011076305 CABLE TIE 300/4,8MM BLACK
    CABLE TIE 300/4,8MM BLACK
  • 7
    44611207200 FLASHER UNIT SUMITOMO
    FLASHER UNIT SUMITOMO
  • 8
    49111425000 BULB 12V 1,2W (W2X4,6D)
    BULB 12V 1,2W (W2X4,6D)
  • 9
    50311070000 H.LIGHT SWITCH CEV 2/4TAKT
    H.LIGHT SWITCH CEV 2/4TAKT
  • 10
    58411050000 BRAKE LIGHT SWITCH FRONT SM
    BRAKE LIGHT SWITCH FRONT SM
  • 11
    0014060153 HH COLLAR SCREW M 6X15 WS=8
    HH COLLAR SCREW M 6X15 WS=8
  • 12
    50311060100 DC HORN L.E.B.
    DC HORN L.E.B.
  • 13
    54603048100 RANGE CHANGE METAL NUT M6
    RANGE CHANGE METAL NUT M6
  • 14
    58411045000 SIDE STAND SWITCH CPL.
    SIDE STAND SWITCH CPL.
  • 16
    49011435000 BULB 12V 5W (W2,1X9,5D)
    BULB 12V 5W (W2,1X9,5D)
  • 17
    49111435100 CONDENSATOR 25V, 10.000 MF
    CONDENSATOR 25V, 10.000 MF
  • 18
    54511048000 CAPACITOR BRACKET
    CAPACITOR BRACKET
  • 19
    0912050083 AH SCREW DIN0912-M 5X 8
    AH SCREW DIN0912-M 5X 8
  • 20
    54611448000 BRACKET FOR CAPACITOR
    BRACKET FOR CAPACITOR
  • 22
    50311074000 ENGINE STOP SWITCH CEV
    ENGINE STOP SWITCH CEV
  • 23
    50311074050 CLAMP ENGINE STOP SWITCH
    CLAMP ENGINE STOP SWITCH
  • 24
    0985040203 FLAT HEAD SCREW DIN7985-M 4X20
    FLAT HEAD SCREW DIN7985-M 4X20
  • 29
    50311029000 FLASHER SWITCH CEV
    FLASHER SWITCH CEV
  • 30
    13011070060 ADAPTER FOR FLASHER SWITCH
    ADAPTER FOR FLASHER SWITCH
  • 31
    0985040163 FLAT HEAD SCREW DIN7985-M 4X16
    FLAT HEAD SCREW DIN7985-M 4X16
  • 32
    0084040223 CYL.HEAD SCREW DIN0084-M 4X22A
    CYL.HEAD SCREW DIN0084-M 4X22A
  • 33
    0934040003 HEXAGON NUT DIN0934-M 4
    HEXAGON NUT DIN0934-M 4
  • 34
    80011034000 VOLTAGE REGULATOR
    VOLTAGE REGULATOR
  • 35
    0017060203 SPECIAL SCREW T60 6X20 WS=6
    SPECIAL SCREW T60 6X20 WS=6
  • 37
    58311079100 FAN WIRING HARNESS
    FAN WIRING HARNESS
  • 38
    58011109005 FUSE 5 A
    FUSE 5 A
  • 40
    57013070100 PVC-CLAMP 5/16 BLACK
    PVC-CLAMP 5/16 BLACK
  • 41
    0016050121 SCREW FOR PLASTIC D=5X12
    SCREW FOR PLASTIC D=5X12
  • 46
    58611046000 ADAPT.CABLE F.SIDE STAND SM
    ADAPT.CABLE F.SIDE STAND SM
  • 51
    50311051100 BRAKE LIGHT SWITCH REAR
    BRAKE LIGHT SWITCH REAR
  • 80
    59011080000 FLASH.WIRINGHARNESS FRONT
    FLASH.WIRINGHARNESS FRONT
  • 81
    59011081000 FLASH.WIRINGHARNESS REAR
    FLASH.WIRINGHARNESS REAR
