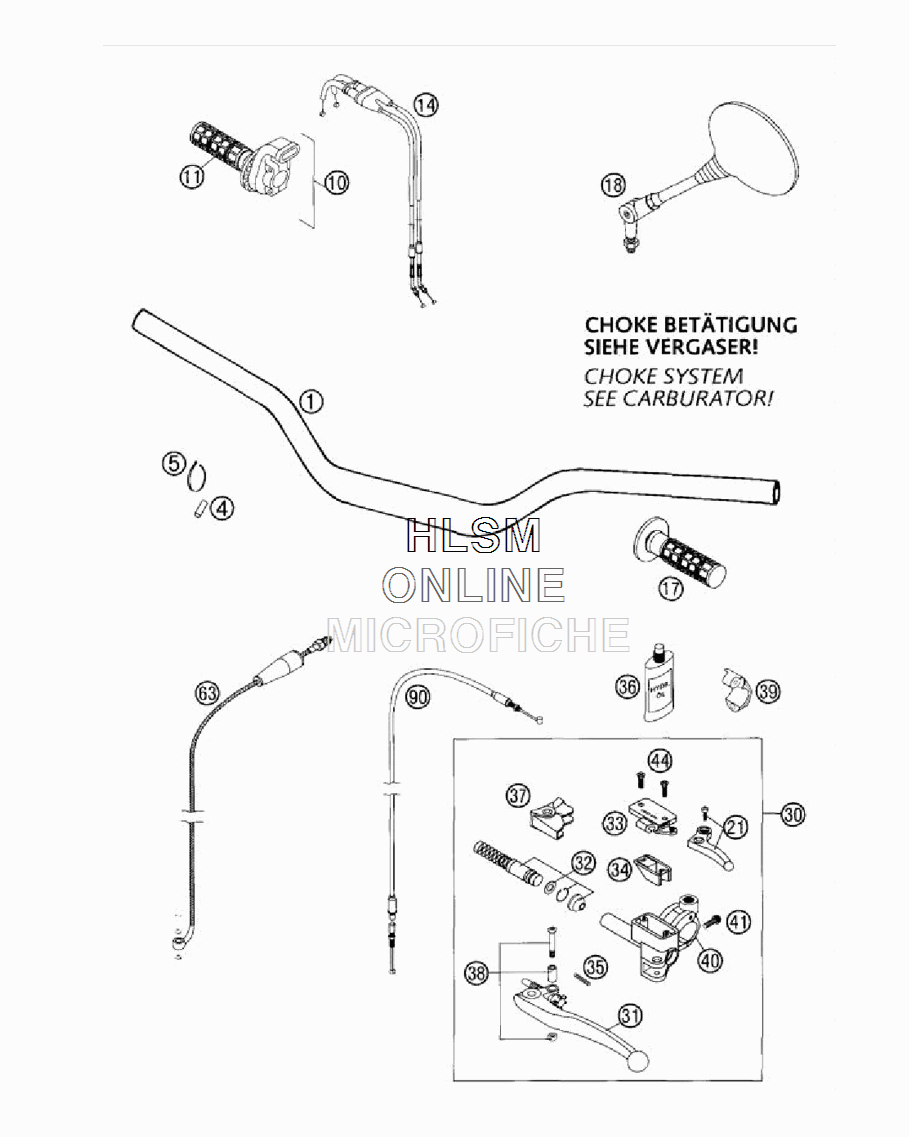

HANDLEBAR W/ CONTROLS для Ktm 660 SMC - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    59002001000 HANDLEBAR SC,RACING HIGH
    HANDLEBAR SC,RACING HIGH
  • 4
    58007016001 0 FUEL HOSE VITON 7X2MM (1 METER)
    FUEL HOSE VITON 7X2MM (1 METER)
  • 5
    44011076200 CABLE TIE 200/3,6MM BLACK
    CABLE TIE 200/3,6MM BLACK
  • 10
    59002010200 THROTTLE GRIP CPL.
    THROTTLE GRIP CPL.
  • 11
    50202003000 TWIST GRIP COVER DOMINO BLACK
    TWIST GRIP COVER DOMINO BLACK
  • 14
    59002091300 THR.CABLEOPEN-CLOSEKEIHIN
    THR.CABLEOPEN-CLOSEKEIHIN
  • 17
    50202052100 FIXED GRIP DOMINO W.OPENING
    FIXED GRIP DOMINO W.OPENING
  • 18
    58312040200 REAR MIRROR L/S FOLDABLE SC
    REAR MIRROR L/S FOLDABLE SC
  • 21
    59002047000 DECO.LEVER CPL.
    DECO.LEVER CPL.
  • 30
    58602030000 MASTER CYLINDER CPL.
    MASTER CYLINDER CPL.
  • 31
    59002031000 CLUTCH LEVER LONG CPL.
    CLUTCH LEVER LONG CPL.
  • 31
    54602031000 CLUTCH LEVER SHORT CPL.
    CLUTCH LEVER SHORT CPL.
  • 32
    50302032000 REP.SATZ PISTON CLUT.HYDR.
    REP.SATZ PISTON CLUT.HYDR.
  • 33
    59002033000 COVER HYD.CLUTCH
    COVER HYD.CLUTCH
  • 34
    50302034000 RUBBER FOR RESERVOIR
    RUBBER FOR RESERVOIR
  • 35
    59002035000 SPRING FOR CLUTCH LEVER
    SPRING FOR CLUTCH LEVER
  • 36
    50302036000 OIL FOR HYD.CLUTCH 50ML
    OIL FOR HYD.CLUTCH 50ML
  • 37
    50302037000 PROTECT.CAP FOR LEVER PERCH
    PROTECT.CAP FOR LEVER PERCH
  • 38
    50302038000 LEVER SCREW CPL.
    LEVER SCREW CPL.
  • 39
    50302030150 CLAMP WITH PIN
    CLAMP WITH PIN
  • 40
    59002044000 CLAMP MIRROR WITH PIN
    CLAMP MIRROR WITH PIN
  • 41
    0015060203 HH COLLAR SCREW M 6X20 WS=8
    HH COLLAR SCREW M 6X20 WS=8
  • 44
    0965040123 FLAT HEAD SCREW DIN0965-M 4X12
    FLAT HEAD SCREW DIN0965-M 4X12
  • 63
    58432063000 CLUTCH PIPE
    CLUTCH PIPE
  • 90
    58402094000 DECOMPR. CABLE
    DECOMPR. CABLE
