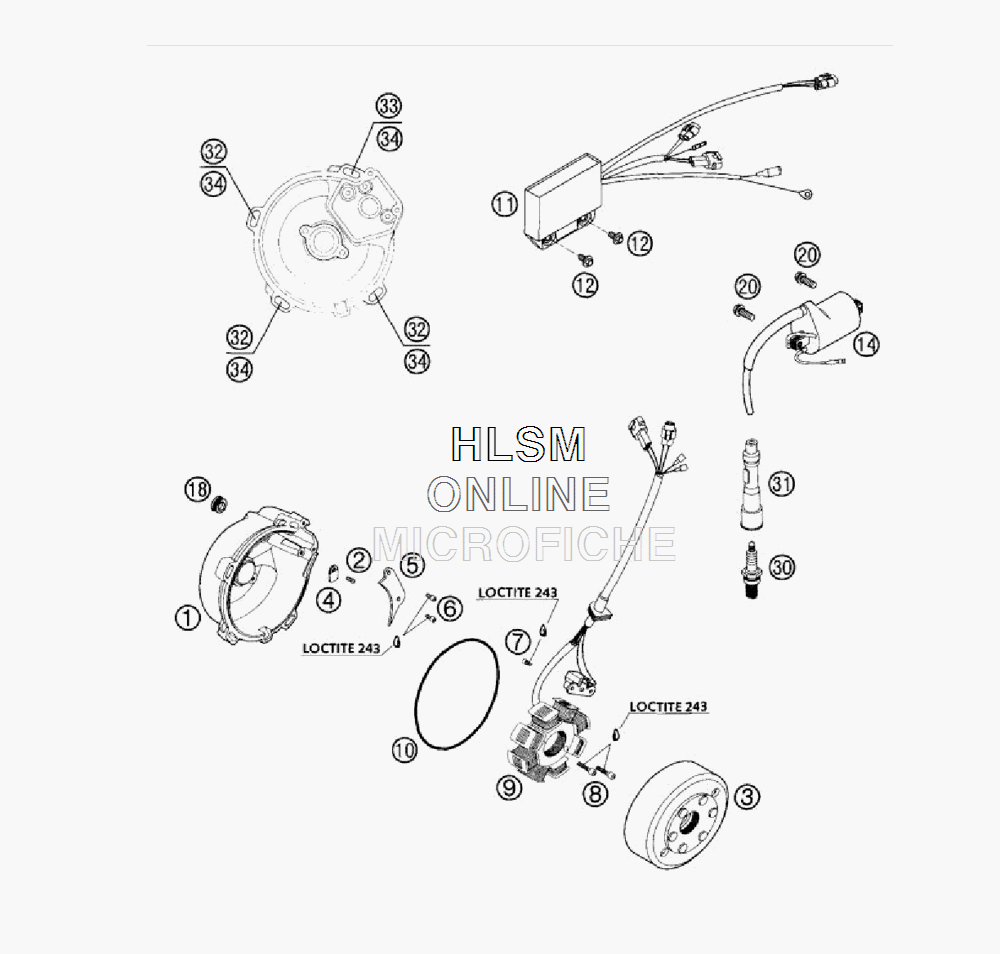

IGNITION SYSTEM KOKUSAN для Ktm 660 SMC - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    5833000200023 IGNITION COVER 4K3 GREY
    IGNITION COVER 4K3 GREY
  • 2
    0500050083 SPECIAL SCREW DIN7500-M 5X 8
    SPECIAL SCREW DIN7500-M 5X 8
  • 3
    58639005100 FLYWHEEL KOKUSAN 660 SM
    FLYWHEEL KOKUSAN 660 SM
  • 4
    50031003000 RETAINING PLATE
    RETAINING PLATE
  • 5
    58330002050 CLOSING COVER 4K3
    CLOSING COVER 4K3
  • 6
    0912050123 AH SCREW DIN0912-M 5X12
    AH SCREW DIN0912-M 5X12
  • 7
    0912050153 AH SCREW DIN0912-M 5X15
    AH SCREW DIN0912-M 5X15
  • 8
    0912060203 AH SCREW DIN0912-M 6X20
    AH SCREW DIN0912-M 6X20
  • 9
    58339004100 STATOR KOKUSAN 4K3 SC
    STATOR KOKUSAN 4K3 SC
  • 10
    0770020490 O-RING 126,72X1,78 B70
    O-RING 126,72X1,78 B70
  • 11
    58339031200 DIGITAL BOX
    DIGITAL BOX
  • 12
    0014060103 HH COLLAR SCREW M 6X10 WS=8
    HH COLLAR SCREW M 6X10 WS=8
  • 14
    58439006000 IGNITIONCOIL 1G3826 KOKUSAN
    IGNITIONCOIL 1G3826 KOKUSAN
  • 18
    58030002050 PLUG M18X1,5
    PLUG M18X1,5
  • 20
    0015060163 HH COLLAR SCREW M 6X16 WS=8
    HH COLLAR SCREW M 6X16 WS=8
  • 30
    59039093100 SPARK PLUG NGK DCPR8E
    SPARK PLUG NGK DCPR8E
  • 31
    58439090000 SPARK PLUG CONNECT. SD05EG
    SPARK PLUG CONNECT. SD05EG
  • 32
    0015060253 HH COLLAR SCREW M 6X25 W5=8
    HH COLLAR SCREW M 6X25 W5=8
  • 33
    0015060303 HH COLLAR SCREW M 6X30 WS=8
    HH COLLAR SCREW M 6X30 WS=8
  • 34
    0125060003 WASHER DIN0125-A 6,4
    WASHER DIN0125-A 6,4
