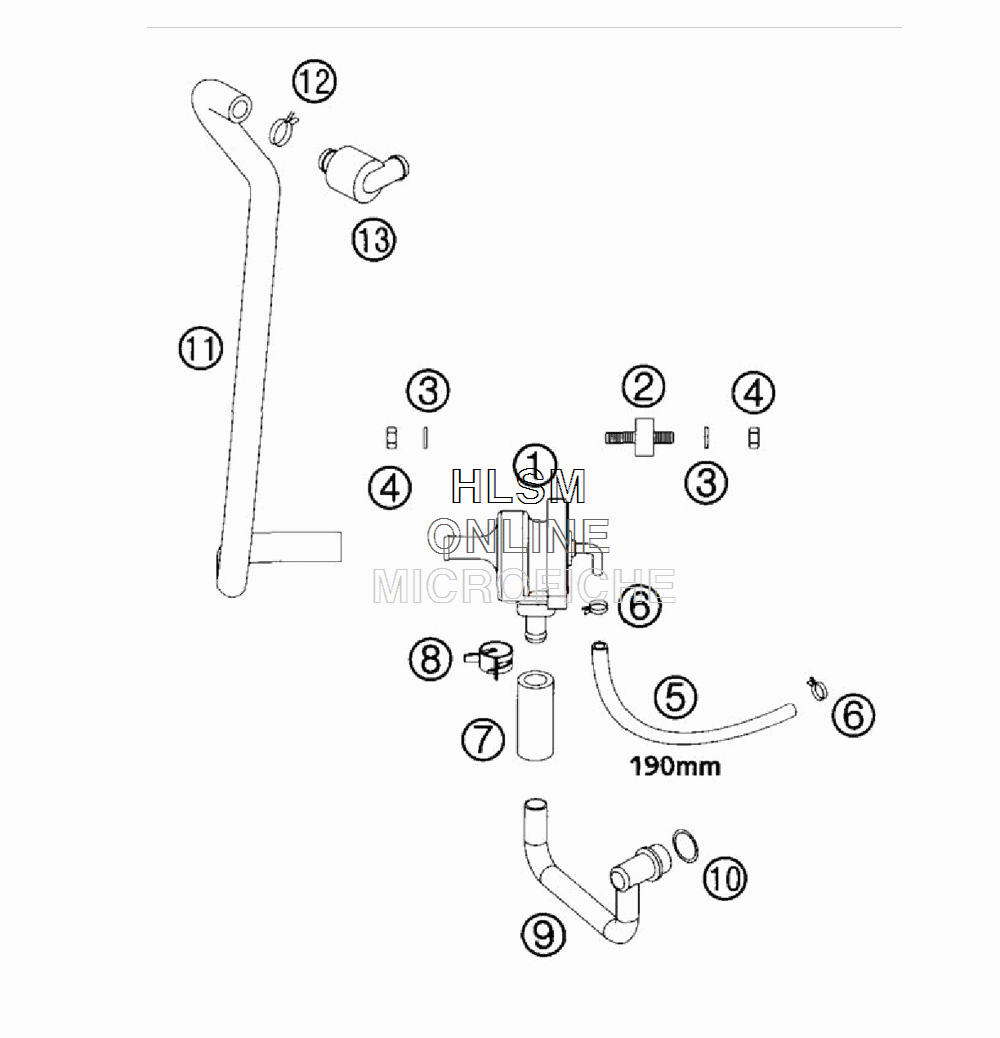

SECONDARY AIR SYSTEM для Ktm 660 SMC - 2004 года выпуска
-
№АртикулНазвание
-
158405026100 SAS-VALVESAS-VALVE
-
258405021000 SILENTBLOCK 20X10 M6X10/M6X16SILENTBLOCK 20X10 M6X10/M6X16
-
30797060003 TOOTH LOCK WASH. DIN6797-A 6,4TOOTH LOCK WASH. DIN6797-A 6,4
-
40934060003 HEXAGON NUT DIN0934-M 6HEXAGON NUT DIN0934-M 6
-
558405029001 ND-HOSE 4X9 PER METERND-HOSE 4X9 PER METER
-
645031005000 YDNAC-CLAMP FUEL HOSE (8MM)YDNAC-CLAMP FUEL HOSE (8MM)
-
758405019000 HOSE SAS-VALVE - CONNECT TUBEHOSE SAS-VALVE - CONNECT TUBE
-
800049190121 CLAMP 19X12 STD-DESCLAMP 19X12 STD-DES
-
958405027100 CONNECTING TUBE SASCONNECTING TUBE SAS
-
1058436054000 CU-SEAL RING 12 X 16 X 2CU-SEAL RING 12 X 16 X 2
-
1158405020000 PREFORMED HOSE SASPREFORMED HOSE SAS
-
1258431082100 YDNAC-CLAMP 16MMYDNAC-CLAMP 16MM
-
1358431070000 AIR FILTERAIR FILTER
