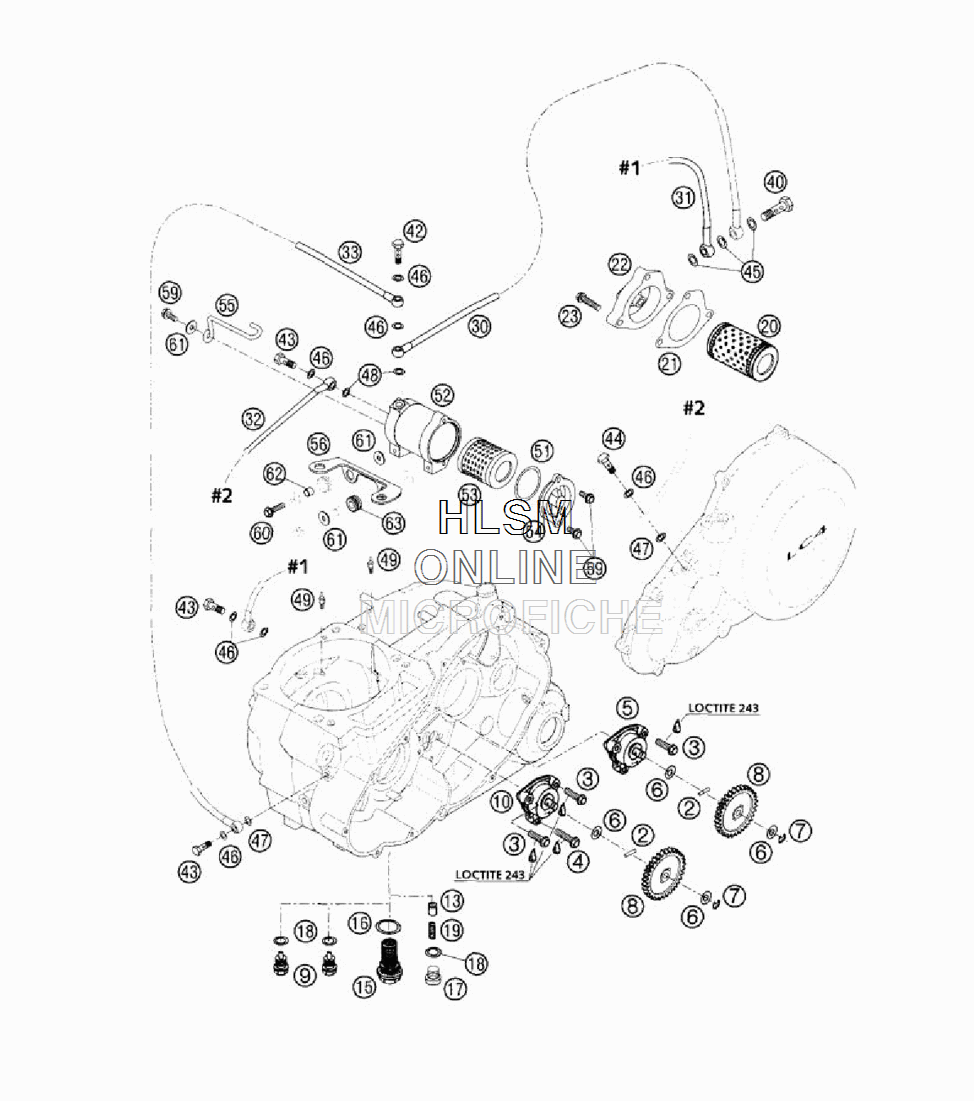

LUBRICATING SYSTEM для Ktm 660 SMC - 2004 года выпуска`
-
№АртикулНазвание
-
20402251980 NEEDLEROL.DIN5402 NRA 2,5X19,8NEEDLEROL.DIN5402 NRA 2,5X19,8
-
30015060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
40015060253 HH COLLAR SCREW M 6X25 WS=8HH COLLAR SCREW M 6X25 WS=8
-
558038007700 OIL PUMP MIKUNI G-73-10OIL PUMP MIKUNI G-73-10
-
658038007755 STOP DISK 8,1 X 15 X 0,5STOP DISK 8,1 X 15 X 0,5
-
70799060000 TAB WASHER DIN6799-RS 6,0TAB WASHER DIN6799-RS 6,0
-
858438001000 OIL PUMP GEAR 26-TOIL PUMP GEAR 26-T
-
958030021000 OILDRAIN PLUG W.MAG. M 12X1,5OILDRAIN PLUG W.MAG. M 12X1,5
-
1058538007000 OIL PUMP MIKUNI G-185OIL PUMP MIKUNI G-185
-
1358038028000 VALVE PISTON D=10MMVALVE PISTON D=10MM
-
1558038019100 OIL DRAIN PLUG M22X1,5OIL DRAIN PLUG M22X1,5
-
1658038017100 CU-SEAL RING DIN7603-22X27X2CU-SEAL RING DIN7603-22X27X2
-
170908120153 PLUG DIN0908-M12X1,5PLUG DIN0908-M12X1,5
-
1858038022000 CU-SEAL RING DIN7603-12X18X1,5CU-SEAL RING DIN7603-12X18X1,5
-
1958538023000 OIL PRES.SPRING 5 BAR REDOIL PRES.SPRING 5 BAR RED
-
2058038005000 OIL FILTER LONGOIL FILTER LONG
-
2158530041000 OIL FILTER COVER GASKETOIL FILTER COVER GASKET
-
2258030008700 OIL FILTER COVEROIL FILTER COVER
-
230015060253 HH COLLAR SCREW M 6X25 WS=8HH COLLAR SCREW M 6X25 WS=8
-
3057338036000 OIL LINE FILTER-MICRO FILTER (R10/R8 - 275MM)OIL LINE FILTER-MICRO FILTER (R10/R8 - 275MM)
-
3158038334600 OIL LINE FILTER/INJECT.VA. R/S (R10/R8 - 175MM)OIL LINE FILTER/INJECT.VA. R/S (R10/R8 - 175MM)
-
3258538046000 OIL LINE JUNC.B-CRANK.300MM 01 (R8 - 300MM)OIL LINE JUNC.B-CRANK.300MM 01 (R8 - 300MM)
-
3357338037000 OIL LINE MICRO F-INJECT..V.L/S (R8 - 350MM)OIL LINE MICRO F-INJECT..V.L/S (R8 - 350MM)
-
4058038033100 DUAL BANJO BOLT M10 X 1DUAL BANJO BOLT M10 X 1
-
4258038033000 DUAL BANJO BOLT M8X1DUAL BANJO BOLT M8X1
-
4358038030000 BANJO BOLT M8 X 1 DIN7643BANJO BOLT M8 X 1 DIN7643
-
4458038130000 JET SCREW M 8 X 1 "150"JET SCREW M 8 X 1 "150"
-
450603100141 COPPER GASKET DIN7603-10X14X1COPPER GASKET DIN7603-10X14X1
-
460603082131 COPPER GASK.DIN7603- 8,2X13X1COPPER GASK.DIN7603- 8,2X13X1
-
4758038032300 CU-SEAL RING 8 X 12 X 1,5CU-SEAL RING 8 X 12 X 1,5
-
480603821220 COPPER GASKET 8,2X12X2 MMCOPPER GASKET 8,2X12X2 MM
-
4960030064070 OIL JET 70 M6X0,75 WS8OIL JET 70 M6X0,75 WS8
-
510770400025 O-RING 40,00X2,50 NBR 70O-RING 40,00X2,50 NBR 70
-
5258338043000 MICRO FILTER HOUSINGMICRO FILTER HOUSING
-
5359038046000 OIL FILTER SHORTOIL FILTER SHORT
-
5459038041000 OIL FILTER COVEROIL FILTER COVER
-
5558613073000 HANGER FOR BRAKE HOSE REARHANGER FOR BRAKE HOSE REAR
-
5657338040000 BRACKET FOR MICRO FILTERBRACKET FOR MICRO FILTER
-
590015050163 HH COLLAR SCREW M 5X16 WS=8HH COLLAR SCREW M 5X16 WS=8
-
600015050203 HH COLLAR SCREW M 5X20 WS=8HH COLLAR SCREW M 5X20 WS=8
-
610021050003 WASHER DIN9021-A 5,3WASHER DIN9021-A 5,3
-
6258011039000 SPACER BUSHING 6,5 X 8 X 7SPACER BUSHING 6,5 X 8 X 7
-
6331008060000 RUBBER SLEEVE D=8MM OPENRUBBER SLEEVE D=8MM OPEN
