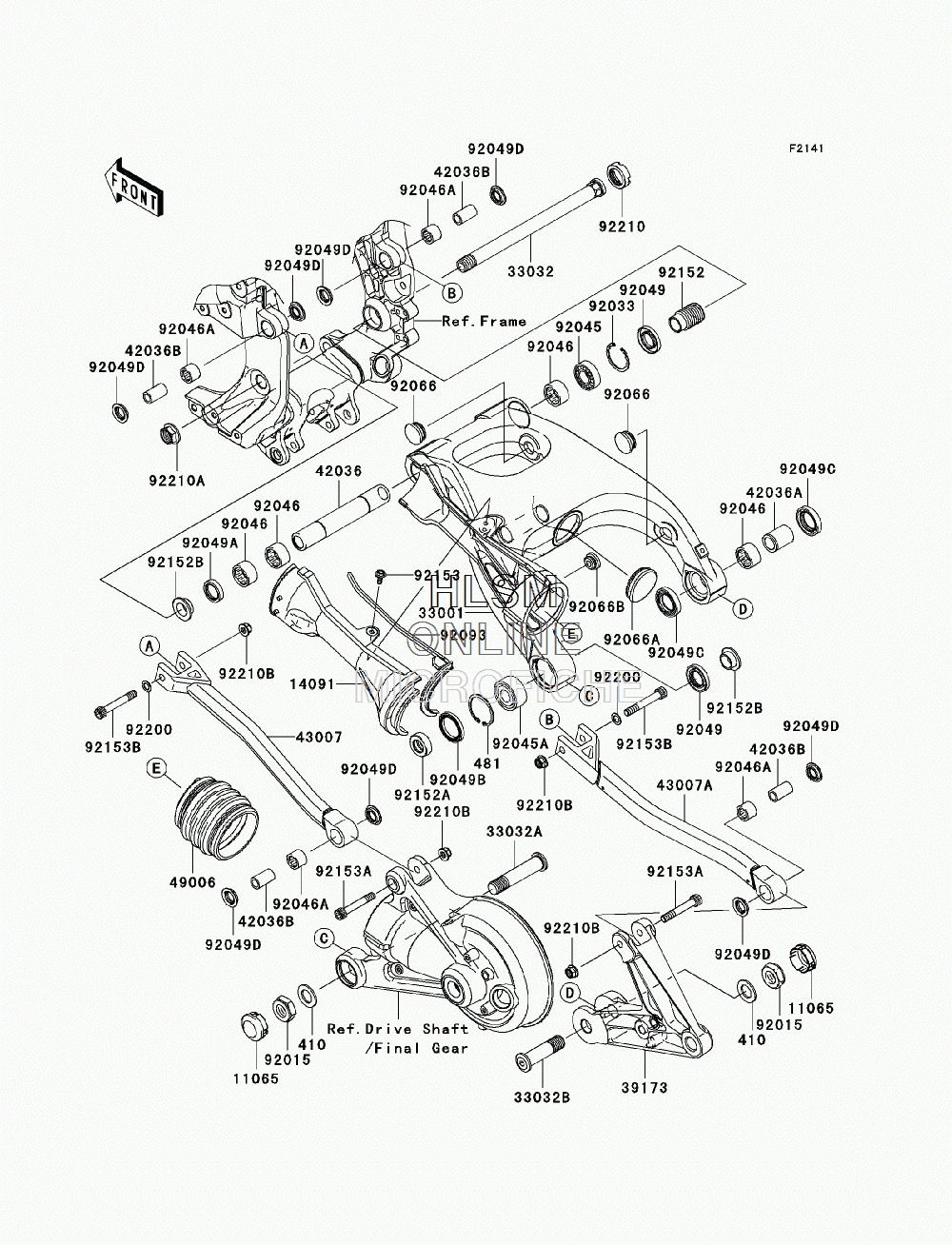

SUSPENSION - SWINGARM для Kawasaki CONCOURS 14 (ZG1400DAF) - 2010 года выпуска

  • №
    Артикул
    Название
  • 410
    410AA2000 WASHER-PLAIN-SMALL,20MM
    WASHER-PLAIN-SMALL,20MM
  • 481
    481J4700 CIRCLIP-TYPE-C,47MM
    CIRCLIP-TYPE-C,47MM
  • 11065
    11065-0180 CAP
    CAP
  • 14091
    14091-1627 COVER,DRIVE SHAFT
    COVER,DRIVE SHAFT
  • 33001
    33001-0145-458 ARM-COMP-SWING,P.SILVER (FOR 27Z)
    ARM-COMP-SWING,P.SILVER (FOR 27Z)
  • 33032
    33032-0023 SHAFT-SWING ARM,PIVOT
    SHAFT-SWING ARM,PIVOT
  • 33032A
    33032-0024 SHAFT-SWING ARM, REAR GEAR CASE
    SHAFT-SWING ARM, REAR GEAR CASE
  • 33032B
    33032-0025 SHAFT-SWING ARM,AXLE BRACKET
    SHAFT-SWING ARM,AXLE BRACKET
  • 39173
    39173-0070-458 BRACKET-AXLE, RIGHT HAND,P.SILVER (FOR 27Z)
    BRACKET-AXLE, RIGHT HAND,P.SILVER (FOR 27Z)
  • 42036
    42036-0042 SLEEVE,SWING ARM PIVOT,L=178
    SLEEVE,SWING ARM PIVOT,L=178
  • 42036A
    42036-0044 SLEEVE,20.15X28X36
    SLEEVE,20.15X28X36
  • 42036B
    42036-1344 SLEEVE,10.1X18X32
    SLEEVE,10.1X18X32
  • 43007
    43007-0012-458 ROD-TORQUE,P.SILVER (FOR 27Z)
    ROD-TORQUE,P.SILVER (FOR 27Z)
  • 43007A
    43007-0013-458 ROD-TORQUE,P.SILVER (FOR 27Z)
    ROD-TORQUE,P.SILVER (FOR 27Z)
  • 49006
    49006-0067 BOOT, REAR GEAR CASE
    BOOT, REAR GEAR CASE
  • 92015
    92015-1770 NUT,LOCK,20MM
    NUT,LOCK,20MM
  • 92033
    92033-1041 RING-SNAP,42MM
    RING-SNAP,42MM
  • 92045
    92045-0017 BEARING-BALL,6004UL11
    BEARING-BALL,6004UL11
  • 92045A
    92045-0064 BEARING-BALL,#5204
    BEARING-BALL,#5204
  • 92046
    92046-0008 BEARING-NEEDLE,7E-HVS 28X34X17
    BEARING-NEEDLE,7E-HVS 28X34X17
  • 92046A
    92046-1272 BEARING-NEEDLE,SFYZM182417
    BEARING-NEEDLE,SFYZM182417
  • 92049
    92049-1314 SEAL-OIL,MHSA25 42 6
    SEAL-OIL,MHSA25 42 6
  • 92049A
    92049-1352 SEAL-OIL,MHSA25X34X7
    SEAL-OIL,MHSA25X34X7
  • 92049B
    92049-1381 SEAL-OIL,MHA 35X47X5
    SEAL-OIL,MHA 35X47X5
  • 92049C
    92049-1386 SEAL-OIL
    SEAL-OIL
  • 92049D
    92049-1493 SEAL-OIL,KCR MF018N1
    SEAL-OIL,KCR MF018N1
  • 92066
    92066-0084 PLUG
    PLUG
  • 92066A
    92066-0090 PLUG
    PLUG
  • 92066B
    92066-1320 PLUG,17MM
    PLUG,17MM
  • 92093
    92093-0122 SEAL,DRIVE SHAFT COVER
    SEAL,DRIVE SHAFT COVER
  • 92152
    92152-0362 COLLAR,SWING ARM, RIGHT HAND,L=47
    COLLAR,SWING ARM, RIGHT HAND,L=47
  • 92152A
    92152-0473 COLLAR
    COLLAR
  • 92152B
    92152-1234 COLLAR,SWING ARM,L=12.5
    COLLAR,SWING ARM,L=12.5
  • 92153
    92153-1587 BOLT,UPSET-WP,6X16
    BOLT,UPSET-WP,6X16
  • 92153A
    92153-1943 BOLT,SOCKET,10X63
    BOLT,SOCKET,10X63
  • 92153B
    92153-1944 BOLT,SOCKET,10X67
    BOLT,SOCKET,10X67
  • 92200
    92200-0324 WASHER,11X18X1
    WASHER,11X18X1
  • 92210
    92210-0134 NUT,30MM
    NUT,30MM
  • 92210A
    92210-0320 NUT,FLANGED,20MM
    NUT,FLANGED,20MM
  • 92210B
    92210-1139 NUT,LOCK,FLANGED,10MM
    NUT,LOCK,FLANGED,10MM
