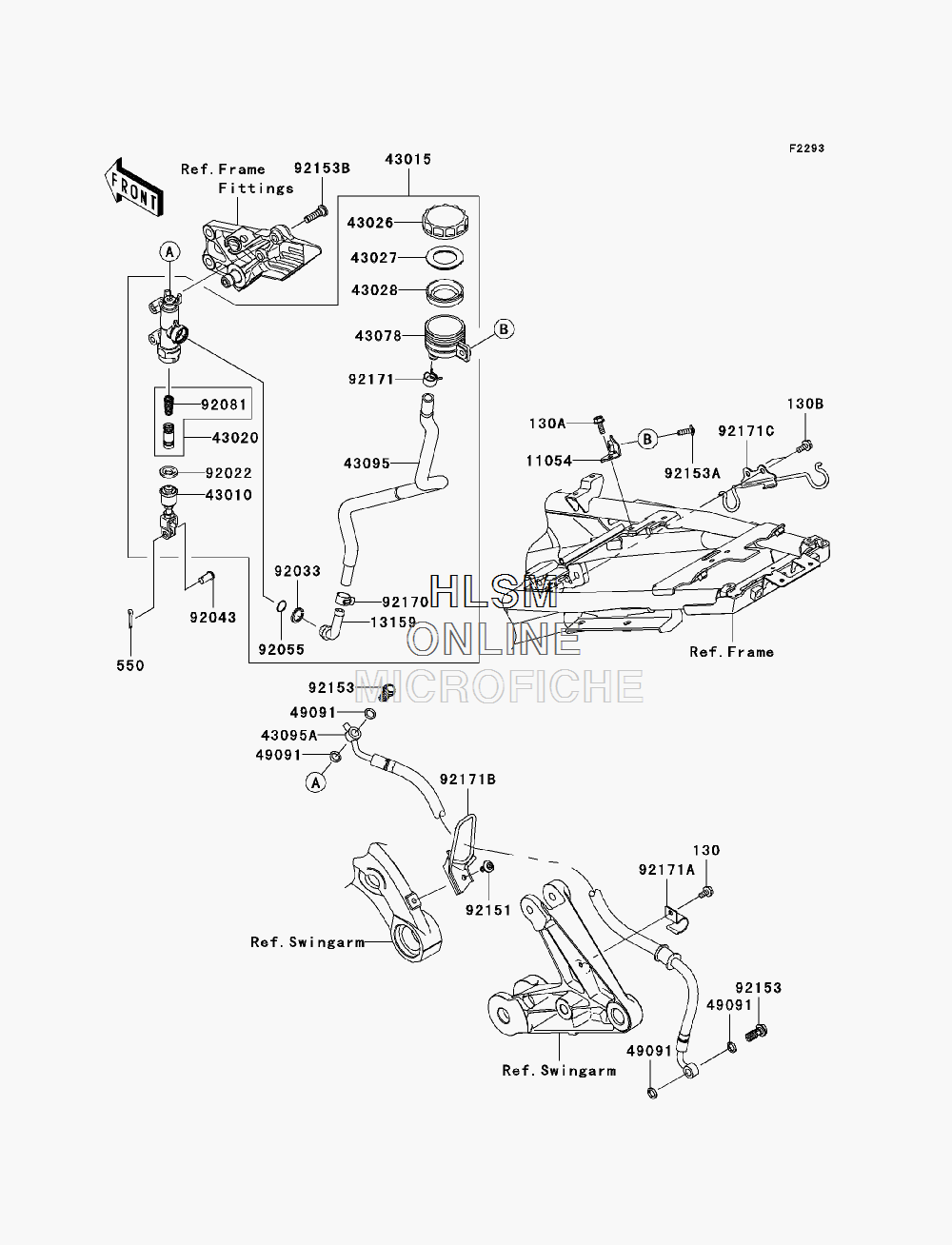

BRAKE - MASTER CYLINDER - REAR для Kawasaki CONCOURS 14 (ZG1400DAF) - 2010 года выпуска

  • №
    Артикул
    Название
  • 130
    130BA0612 BOLT-FLANGED,6X12
    BOLT-FLANGED,6X12
  • 130A
    130BA0616 BOLT-FLANGED,6X16
    BOLT-FLANGED,6X16
  • 130B
    130BB0614 BOLT-FLANGED,6X14
    BOLT-FLANGED,6X14
  • 550
    550AA2015 PIN-COTTER,2.0X15
    PIN-COTTER,2.0X15
  • 11054
    11054-1915 BRACKET, RESERVOIR TANK, REAR
    BRACKET, RESERVOIR TANK, REAR
  • 13159
    13159-1056 CONNECTOR
    CONNECTOR
  • 43010
    43010-1055 ROD-ASSY-BRAKE
    ROD-ASSY-BRAKE
  • 43015
    43015-0087 CYLINDER-ASSY-MASTER, REAR
    CYLINDER-ASSY-MASTER, REAR
  • 43020
    43020-1057 PISTON-COMP-BRAKE
    PISTON-COMP-BRAKE
  • 43026
    43026-1051 CAP-BRAKE
    CAP-BRAKE
  • 43027
    43027-1051 PLATE-DIAPHRAGM
    PLATE-DIAPHRAGM
  • 43028
    43028-1057 DIAPHRAGM,MASTER CYLINDER
    DIAPHRAGM,MASTER CYLINDER
  • 43078
    43078-1082 RESERVOIR, REAR MASTER CYLINDER
    RESERVOIR, REAR MASTER CYLINDER
  • 43095
    43095-0334 HOSE-BRAKE, REAR,MASTER CYLINDER
    HOSE-BRAKE, REAR,MASTER CYLINDER
  • 43095A
    43095-0502 HOSE-BRAKE, REAR
    HOSE-BRAKE, REAR
  • 49091
    49091-0001 WASHER-SEAL,10.1X14.5X1.5
    WASHER-SEAL,10.1X14.5X1.5
  • 92022
    92022-1601 WASHER,CIRCRIP
    WASHER,CIRCRIP
  • 92033
    92033-1186 RING-SNAP,20.5MM
    RING-SNAP,20.5MM
  • 92043
    92043-0104 PIN,8X17
    PIN,8X17
  • 92055
    92055-1251 RING-O,MASTER CYLINDER
    RING-O,MASTER CYLINDER
  • 92081
    92081-1737 SPRING,MASTER CYLINDER
    SPRING,MASTER CYLINDER
  • 92151
    92151-1654 BOLT,SOCKET,6X14
    BOLT,SOCKET,6X14
  • 92153
    92153-0627 BOLT,OIL,L=23
    BOLT,OIL,L=23
  • 92153A
    92153-0756 BOLT,6X18
    BOLT,6X18
  • 92153B
    92153-1624 BOLT,SOCKET,8X30
    BOLT,SOCKET,8X30
  • 92170
    92170-1091 CLAMP,HOSE
    CLAMP,HOSE
  • 92171
    92171-0463 CLAMP,HOSE
    CLAMP,HOSE
  • 92171A
    92171-0880 CLAMP,BRAKE HOSE
    CLAMP,BRAKE HOSE
  • 92171B
    92171-1713 CLAMP,BRAKE HOSE
    CLAMP,BRAKE HOSE
  • 92171C
    92171-1935 CLAMP, RESERVE TANK HOSE
    CLAMP, RESERVE TANK HOSE
