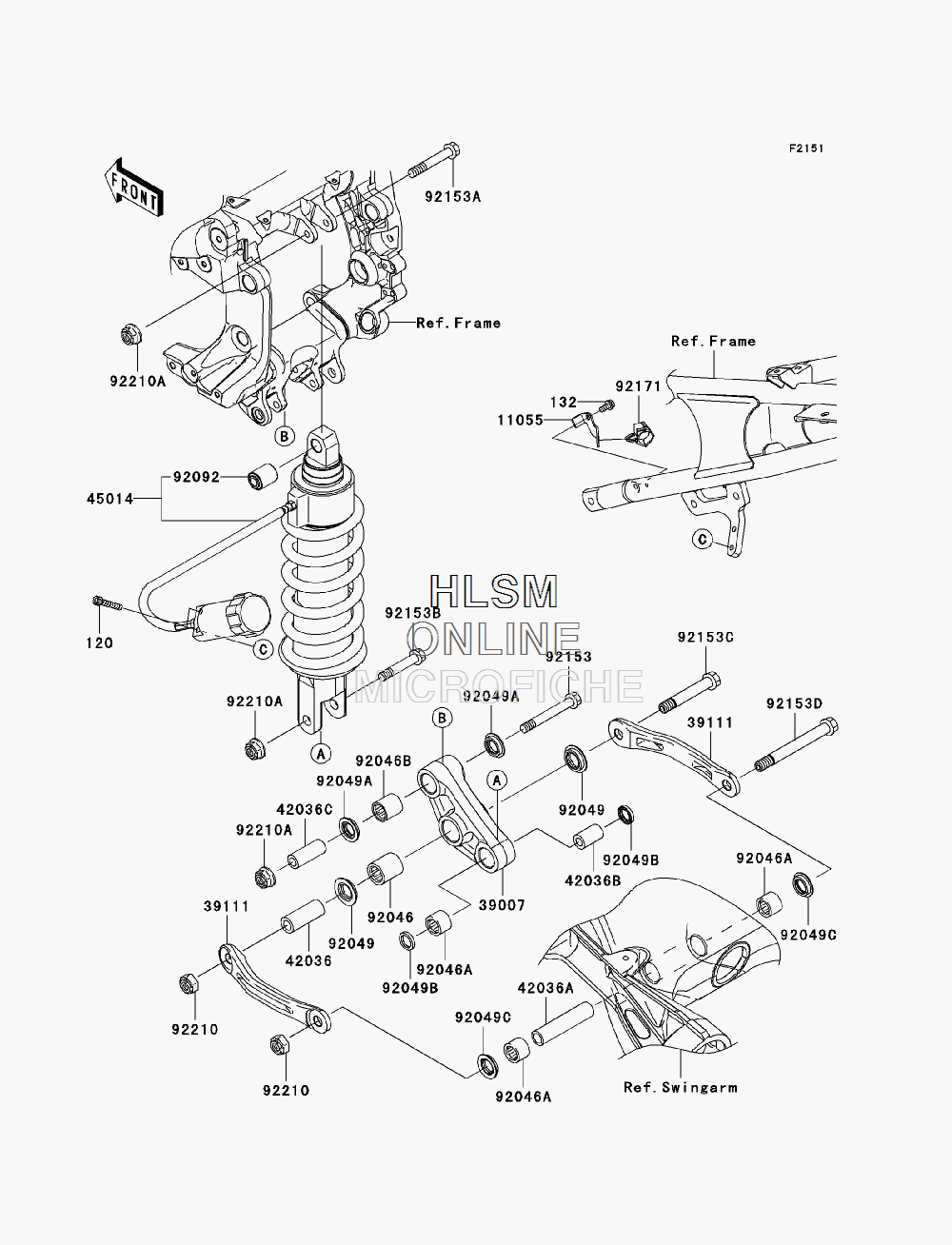

SUSPENSION - REAR W/ SHOCK ABSORBER для Kawasaki CONCOURS 14 (ZG1400DAF) - 2010 года выпуска`
-
№АртикулНазвание
-
120120CA0630 BOLT-SOCKET,6X30BOLT-SOCKET,6X30
-
132132BA0612 BOLT-FLANGED-SMALL,6X12BOLT-FLANGED-SMALL,6X12
-
1105511055-1298 BRACKETBRACKET
-
3900739007-0120 ARM-SUSPARM-SUSP
-
3911139111-0038 ROD-TIE,SUSPENSIONROD-TIE,SUSPENSION
-
4203642036-1111 SLEEVE,12.1X20X50SLEEVE,12.1X20X50
-
42036A42036-1231 SLEEVE,12.1X18X82SLEEVE,12.1X18X82
-
42036B42036-1258 SLEEVE,10.1X18X30SLEEVE,10.1X18X30
-
42036C42036-1342 SLEEVE,10.1X17X44.5SLEEVE,10.1X17X44.5
-
4501445014-0289-23A SHOCK,SPRING SIL+BODY BLK (FOR 27Z)SHOCK,SPRING SIL+BODY BLK (FOR 27Z)
-
9204692046-0029 BEARING-NEEDLE,7E-HVS20X27X30BEARING-NEEDLE,7E-HVS20X27X30
-
92046A92046-1272 BEARING-NEEDLE,SFYZM182417BEARING-NEEDLE,SFYZM182417
-
92046B92046-1273 BEARING-NEEDLE,SFYZM172425BEARING-NEEDLE,SFYZM172425
-
9204992049-1109 SEAL-OIL,ARMSEAL-OIL,ARM
-
92049A92049-1223 SEAL-OIL,MHA17245.7FSEAL-OIL,MHA17245.7F
-
92049B92049-1225 SEAL-OIL,MHA18244SEAL-OIL,MHA18244
-
92049C92049-1493 SEAL-OIL,KCR MF018N1SEAL-OIL,KCR MF018N1
-
9209292092-1058 BUSHING-RUBBERBUSHING-RUBBER
-
9215392153-1613 BOLT,FLANGED,10X77BOLT,FLANGED,10X77
-
92153A92153-1614 BOLT,FLANGED,10X62BOLT,FLANGED,10X62
-
92153B92153-1615 BOLT,FLANGED,10X55BOLT,FLANGED,10X55
-
92153C92153-1844 BOLT,FLANGED,12X76BOLT,FLANGED,12X76
-
92153D92153-1845 BOLT,FLANGED,12X111BOLT,FLANGED,12X111
-
9217192171-0316 CLAMP,BRAKE HOSECLAMP,BRAKE HOSE
-
9221092210-0274 NUT,LOCK,12MMNUT,LOCK,12MM
-
92210A92210-1139 NUT,LOCK,FLANGED,10MMNUT,LOCK,FLANGED,10MM
