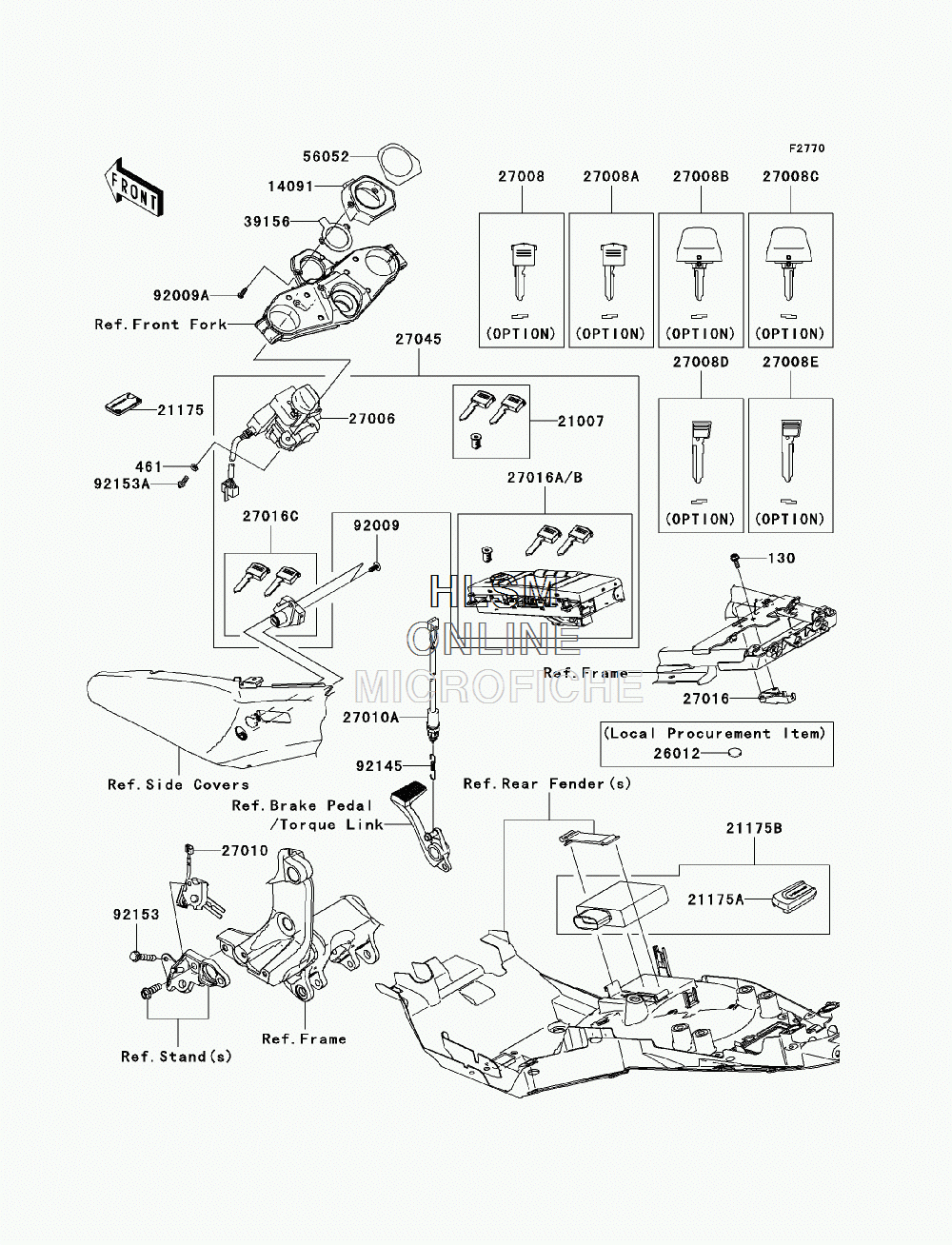

IGNITION SWITCH W/ LOCKS AND REFLECTORS для Kawasaki CONCOURS 14 (ZG1400DAF) - 2010 года выпуска
-
№АртикулНазвание
-
130130BA0612 BOLT-FLANGED,6X12BOLT-FLANGED,6X12
-
461461DA0600 WASHER-SPRING,6MMWASHER-SPRING,6MM
-
1409114091-0659 COVER,KEY CYLINDERCOVER,KEY CYLINDER
-
2100721007-5067 ROTOR,LOCK TANK CAPROTOR,LOCK TANK CAP
-
2117521175-0256 SPARE FOB KEYSPARE FOB KEY
-
21175A21175-0296 FOB KEYFOB KEY
-
21175B21175-0299 CONTROL UNIT-ELECTRONICCONTROL UNIT-ELECTRONIC
-
2700627006-0074 SWITCH-IGNITIONSWITCH-IGNITION
-
2700827008-0048 KEY-LOCK,BLANK,#A (OPTION)KEY-LOCK,BLANK,#A (OPTION)
-
27008A27008-0049 KEY-LOCK,BLANK,#B (OPTION)KEY-LOCK,BLANK,#B (OPTION)
-
27008B27008-0050 KEY-LOCK,BLANK,#A,MAIN SWITCH (OPTION)KEY-LOCK,BLANK,#A,MAIN SWITCH (OPTION)
-
27008C27008-0051 KEY-LOCK,BLANK,#B,MAIN SWITCH (OPTION)KEY-LOCK,BLANK,#B,MAIN SWITCH (OPTION)
-
27008D27008-0062 KEY-LOCK,BLANK,#A,SPARE FOB (OPTION)KEY-LOCK,BLANK,#A,SPARE FOB (OPTION)
-
27008E27008-0063 KEY-LOCK,BLANK,#B,SPARE FOB (OPTION)KEY-LOCK,BLANK,#B,SPARE FOB (OPTION)
-
2701027010-0064 SWITCH,SIDE STANDSWITCH,SIDE STAND
-
27010A27010-1479 SWITCH, REAR BRAKESWITCH, REAR BRAKE
-
2701627016-1115 LOCK-ASSY,SEAT STRIKERLOCK-ASSY,SEAT STRIKER
-
27016A27016-5361 LOCK-ASSY,SIDE BAG, LEFT HANDLOCK-ASSY,SIDE BAG, LEFT HAND
-
27016B27016-5362 LOCK-ASSY,SIDE BAG, RIGHT HANDLOCK-ASSY,SIDE BAG, RIGHT HAND
-
27016C27016-5363 LOCK-ASSY,SEATLOCK-ASSY,SEAT
-
2704527045-5425 SWITCH-ASSYSWITCH-ASSY
-
3915639156-0319 PAD,KEY CYLINDERPAD,KEY CYLINDER
-
5605256052-1946 MARK,IGNITION SWITCHMARK,IGNITION SWITCH
-
9200992009-1113 SCREW,TAPPINGSCREW,TAPPING
-
92009A92009-1264 SCREW,TAPPING,5X16SCREW,TAPPING,5X16
-
9214592145-0471 SPRING, REAR BRAKE SWITCHSPRING, REAR BRAKE SWITCH
-
9215392153-1425 BOLT,FLANGED,6X30BOLT,FLANGED,6X30
-
92153A92153-1426 BOLT,TORX,6X16BOLT,TORX,6X16
