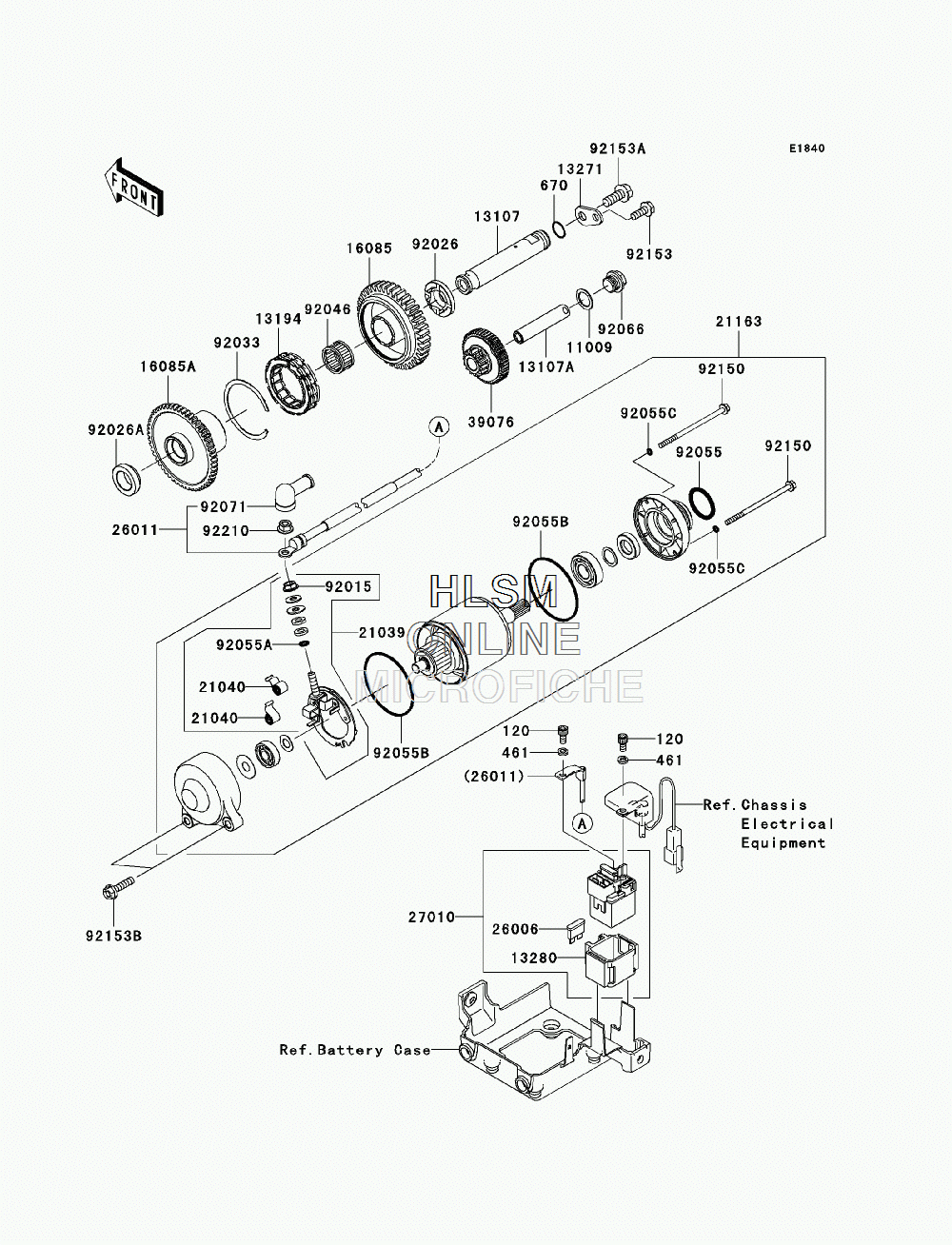

STARTER MOTOR для Kawasaki CONCOURS 14 (ZG1400DAF) - 2010 года выпуска`
-
№АртикулНазвание
-
120120CA0510 BOLT-SOCKET,5X10BOLT-SOCKET,5X10
-
461461DA0500 WASHER-SPRINGWASHER-SPRING
-
670670D2014 O RING,14MMO RING,14MM
-
1100911009-1238 GASKET,14.3X20X1GASKET,14.3X20X1
-
1310713107-0110 SHAFTSHAFT
-
13107A13107-0136 SHAFTSHAFT
-
1319413194-3704 CLUTCH-ONEWAYCLUTCH-ONEWAY
-
1327113271-0845 PLATEPLATE
-
1328013280-1263 HOLDERHOLDER
-
1608516085-0080 GEARGEAR
-
16085A16085-0113 GEARGEAR
-
2103921039-1066 BRUSHBRUSH
-
2104021040-1057 SPRING-BRUSHSPRING-BRUSH
-
2116321163-0053 STARTER-ELECTRICSTARTER-ELECTRIC
-
2600626006-1006 FUSE,30A-GFUSE,30A-G
-
2601126011-0122 WIRE-LEADWIRE-LEAD
-
2701027010-1446 SWITCH,MAGNETICSWITCH,MAGNETIC
-
3907639076-0013 LIMITERLIMITER
-
9201592015-1476 NUT,STARTER MOTORNUT,STARTER MOTOR
-
9202692026-0081 SPACER, RIGHT HANDSPACER, RIGHT HAND
-
92026A92026-0137 SPACER, LEFT HANDSPACER, LEFT HAND
-
9203392033-3731 RING-SNAPRING-SNAP
-
9204692046-1288 BEARING-NEEDLEBEARING-NEEDLE
-
9205592055-1276 RING-ORING-O
-
92055A92055-1370 RING-O,4.5X2.0RING-O,4.5X2.0
-
92055B92055-1550 RING-ORING-O
-
92055C92055-1551 RING-ORING-O
-
9206692066-1273 PLUG,14X8PLUG,14X8
-
9207192071-0024 GROMMETGROMMET
-
9215092150-1969 BOLT,FLANGED,4X80BOLT,FLANGED,4X80
-
9215392153-1551 BOLT,FLANGED,6X16BOLT,FLANGED,6X16
-
92153A92153-1554 BOLT,FLANGED,8X20BOLT,FLANGED,8X20
-
92153B92153-1592 BOLT,FLANGED,6X25BOLT,FLANGED,6X25
-
9221092210-0188 NUT,6MMNUT,6MM
