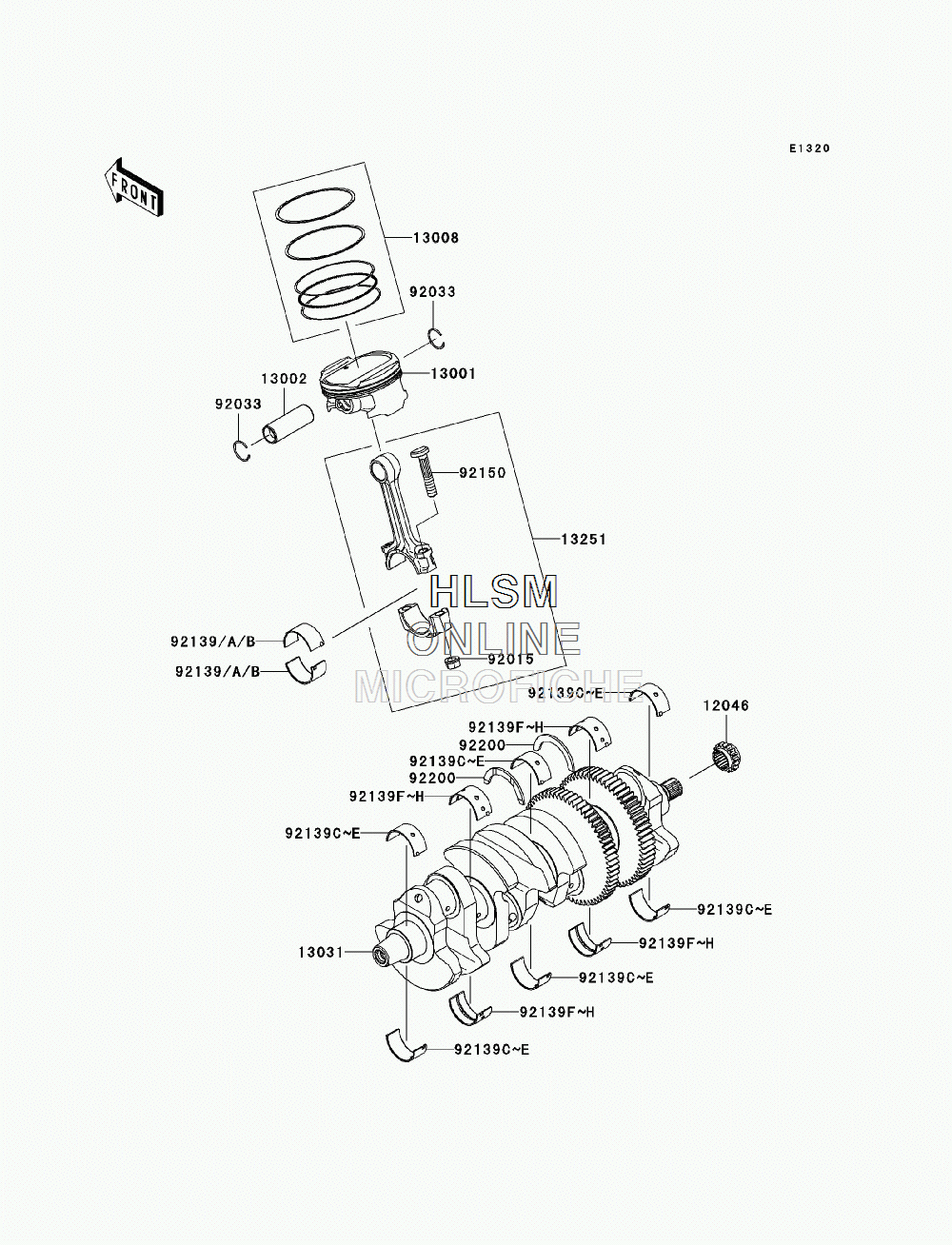

CRANKSHAFT/PISTON(S) для Kawasaki CONCOURS 14 (ZG1400DAF) - 2010 года выпуска

  • №
    Артикул
    Название
  • 12046
    12046-0052 SPROCKET,17T
    SPROCKET,17T
  • 13001
    13001-0109 PISTON-ENGINE
    PISTON-ENGINE
  • 13002
    13002-0010 PIN-PISTON
    PIN-PISTON
  • 13008
    13008-0027 RING-SET-PISTON
    RING-SET-PISTON
  • 13031
    13031-0094 CRANKSHAFT-COMP
    CRANKSHAFT-COMP
  • 13251
    13251-0025-JJ ROD-ASSY-CONNECTING,JJ
    ROD-ASSY-CONNECTING,JJ
  • 92015
    92015-1559 NUT,CONNECTING ROD
    NUT,CONNECTING ROD
  • 92033
    92033-1207 RING-SNAP
    RING-SNAP
  • 92139
    92139-0129 BUSHING,CON-ROD,BLUE
    BUSHING,CON-ROD,BLUE
  • 92139A
    92139-0130 BUSHING,CON-ROD,BLACK
    BUSHING,CON-ROD,BLACK
  • 92139B
    92139-0131 BUSHING,CON-ROD,BROWN
    BUSHING,CON-ROD,BROWN
  • 92139C
    92139-0132 BUSHING,CRANK #1 & #3 & #5,BLUE
    BUSHING,CRANK #1 & #3 & #5,BLUE
  • 92139D
    92139-0133 BUSHING,CRANK #1 & #3 & #5,BLACK
    BUSHING,CRANK #1 & #3 & #5,BLACK
  • 92139E
    92139-0134 BUSHING,CRANK #1 & #3 & #5,BROWN
    BUSHING,CRANK #1 & #3 & #5,BROWN
  • 92139F
    92139-0135 BUSHING,CRANK #2 & #4,BLUE
    BUSHING,CRANK #2 & #4,BLUE
  • 92139G
    92139-0136 BUSHING,CRANK #2 & #4,BLACK
    BUSHING,CRANK #2 & #4,BLACK
  • 92139H
    92139-0137 BUSHING,CRANK #2 & #4,BROWN
    BUSHING,CRANK #2 & #4,BROWN
  • 92150
    92150-1362 BOLT,CONNECTING ROD,9MM
    BOLT,CONNECTING ROD,9MM
  • 92200
    92200-0331 WASHER,T=2.5
    WASHER,T=2.5
