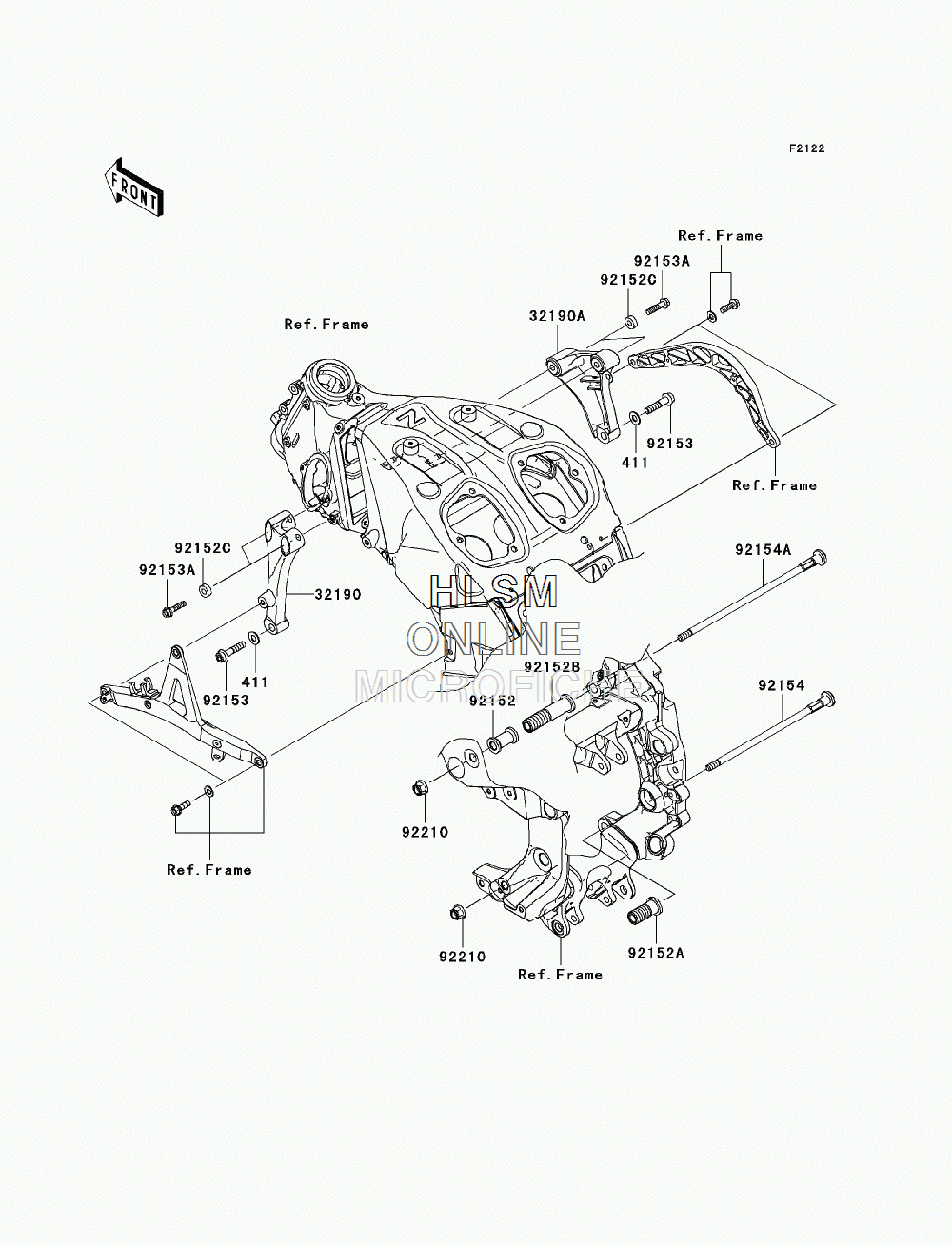

ENGINE MOUNT для Kawasaki CONCOURS 14 (ZG1400DAF) - 2010 года выпуска

  • №
    Артикул
    Название
  • 411
    411AA1000 WASHER-PLAIN,10MM
    WASHER-PLAIN,10MM
  • 32190
    32190-0424 BRACKET-ENGINE, FRONT, LEFT HAND
    BRACKET-ENGINE, FRONT, LEFT HAND
  • 32190A
    32190-0425 BRACKET-ENGINE, FRONT, RIGHT HAND
    BRACKET-ENGINE, FRONT, RIGHT HAND
  • 92152
    92152-0368 COLLAR,L=43.2
    COLLAR,L=43.2
  • 92152A
    92152-0370 COLLAR,ADJUST, REAR,LWR
    COLLAR,ADJUST, REAR,LWR
  • 92152B
    92152-0371 COLLAR,ADJUST, REAR,UPP
    COLLAR,ADJUST, REAR,UPP
  • 92152C
    92152-0502 COLLAR,8.8X20X7
    COLLAR,8.8X20X7
  • 92153
    92153-1769 BOLT,SOCKET,10X45
    BOLT,SOCKET,10X45
  • 92153A
    92153-1770 BOLT,FLANGED,8X35
    BOLT,FLANGED,8X35
  • 92154
    92154-0089 BOLT,SOCKET,12X268
    BOLT,SOCKET,12X268
  • 92154A
    92154-0090 BOLT,SOCKET,12X312
    BOLT,SOCKET,12X312
  • 92210
    92210-0287 NUT,LOCK,FLANGED,12MM
    NUT,LOCK,FLANGED,12MM
