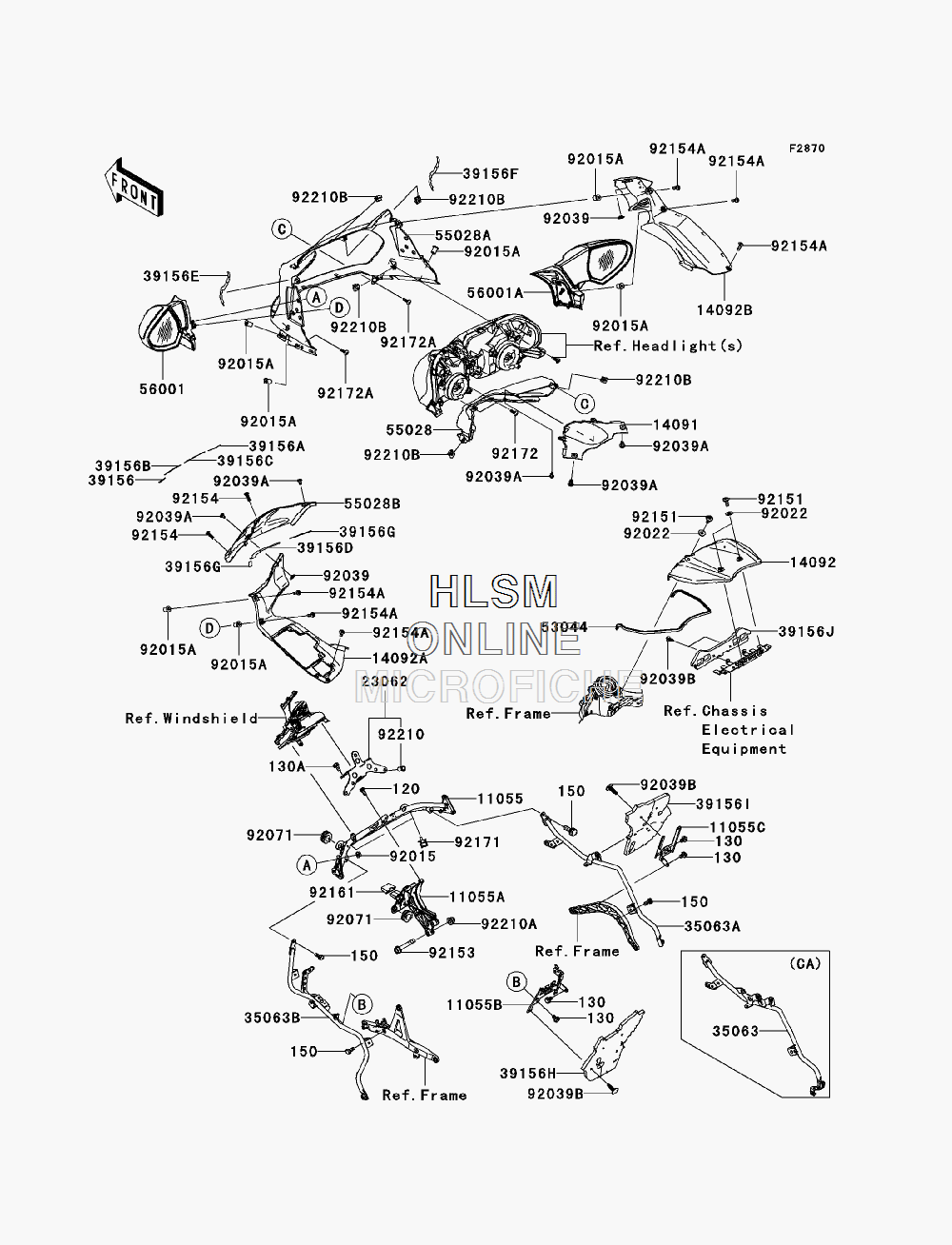

COWLING - UPPER для Kawasaki CONCOURS 14 (ZG1400DAF) - 2010 года выпуска

  • №
    Артикул
    Название
  • 11055
    11055-0143 BRACKET,MIREAROR
    BRACKET,MIREAROR
  • 11055A
    11055-1804 BRACKET,COWLING
    BRACKET,COWLING
  • 11055B
    11055-1835 BRACKET,PAD, LEFT HAND
    BRACKET,PAD, LEFT HAND
  • 11055C
    11055-1836 BRACKET,PAD, RIGHT HAND
    BRACKET,PAD, RIGHT HAND
  • 14091
    14091-0859 COVER,SHROUD,CNT
    COVER,SHROUD,CNT
  • 14092
    14092-0112 COVER,FUEL TANK
    COVER,FUEL TANK
  • 14092A
    14092-0113 COVER,INNER, LEFT HAND
    COVER,INNER, LEFT HAND
  • 14092B
    14092-0114 COVER,INNER, RIGHT HAND
    COVER,INNER, RIGHT HAND
  • 23062
    23062-0036 BRACKET-COMP,METER
    BRACKET-COMP,METER
  • 35063
    35063-0663 STAY,COWLING, RIGHT HAND (CALIF. ONLY)
    STAY,COWLING, RIGHT HAND (CALIF. ONLY)
  • 35063A
    35063-0675 STAY,COWLING, RIGHT HAND (EXCEPT CALIF.)
    STAY,COWLING, RIGHT HAND (EXCEPT CALIF.)
  • 35063B
    35063-0685 STAY,COWLING, LEFT HAND
    STAY,COWLING, LEFT HAND
  • 39156
    39156-0378 PAD,UPP COWLING,CNT, LEFT HAND
    PAD,UPP COWLING,CNT, LEFT HAND
  • 39156A
    39156-0379 PAD,UPP COWLING,CNT, RIGHT HAND
    PAD,UPP COWLING,CNT, RIGHT HAND
  • 39156B
    39156-0380 PAD,UPP COWLING,CNT, LEFT HAND
    PAD,UPP COWLING,CNT, LEFT HAND
  • 39156C
    39156-0381 PAD,UPP COWLING,CNT, RIGHT HAND
    PAD,UPP COWLING,CNT, RIGHT HAND
  • 39156D
    39156-0382 PAD,UPP COWLING,CNT
    PAD,UPP COWLING,CNT
  • 39156E
    39156-0384 PAD,UPP COWLING, LEFT HAND
    PAD,UPP COWLING, LEFT HAND
  • 39156F
    39156-0385 PAD,UPP COWLING, RIGHT HAND
    PAD,UPP COWLING, RIGHT HAND
  • 39156G
    39156-0398 PAD,UPP COWLING,CNT
    PAD,UPP COWLING,CNT
  • 39156H
    39156-0588 PAD, LEFT HAND
    PAD, LEFT HAND
  • 39156I
    39156-0589 PAD, RIGHT HAND
    PAD, RIGHT HAND
  • 39156J
    39156-0590 PAD,CNT
    PAD,CNT
  • 53044
    53044-0054 TRIM
    TRIM
  • 55028
    55028-0192 COWLING,INTAKE
    COWLING,INTAKE
  • 55028A
    55028-0198-27Z COWLING,UPP,C.N.BLUE (FOR 27Z)
    COWLING,UPP,C.N.BLUE (FOR 27Z)
  • 55028B
    55028-0306 COWLING,CNT
    COWLING,CNT
  • 56001
    56001-0182-27Z MIREAROR-ASSY, LEFT HAND,C.N.BLUE (FOR 27Z)
    MIREAROR-ASSY, LEFT HAND,C.N.BLUE (FOR 27Z)
  • 56001A
    56001-0183-27Z MIREAROR-ASSY, RIGHT HAND,C.N.BLUE (FOR 27Z)
    MIREAROR-ASSY, RIGHT HAND,C.N.BLUE (FOR 27Z)
  • 92015
    92015-1367 NUT,FLANGED,6MM
    NUT,FLANGED,6MM
  • 92015A
    92015-1757 NUT,WELL,5MM
    NUT,WELL,5MM
  • 92022
    92022-1143 WASHER,6.5X16X1
    WASHER,6.5X16X1
  • 92039
    92039-0048 RIVET
    RIVET
  • 92039A
    92039-0051 RIVET
    RIVET
  • 120
    120CA0612 BOLT-SOCKET,6X12
    BOLT-SOCKET,6X12
  • 130
    130BA0610 BOLT-FLANGED,6X10
    BOLT-FLANGED,6X10
  • 130A
    130BA0612 BOLT-FLANGED,6X12
    BOLT-FLANGED,6X12
  • 150
    150R0616 BOLT-WS,6X16
    BOLT-WS,6X16
  • 92039B
    92039-0090 RIVET
    RIVET
  • 92071
    92071-1131 GROMMET
    GROMMET
  • 92151
    92151-1654 BOLT,SOCKET,6X14
    BOLT,SOCKET,6X14
  • 92153
    92153-1877 BOLT,FLANGED,8X50
    BOLT,FLANGED,8X50
  • 92154
    92154-0026 BOLT,SOCKET,5X16
    BOLT,SOCKET,5X16
  • 92154A
    92154-0209 BOLT,SOCKET,5X16
    BOLT,SOCKET,5X16
  • 92161
    92161-0412 DAMPER,HEAD LAMP
    DAMPER,HEAD LAMP
  • 92171
    92171-1665 CLAMP
    CLAMP
  • 92172
    92172-0265 SCREW,TAPPING,5X14
    SCREW,TAPPING,5X14
  • 92172A
    92172-0322 SCREW,5X16
    SCREW,5X16
  • 92210
    92210-0324 NUT,POP,6MM,L=16.5
    NUT,POP,6MM,L=16.5
  • 92210A
    92210-0325 NUT,CAP,8MM
    NUT,CAP,8MM
  • 92210B
    92210-0571 NUT
    NUT
