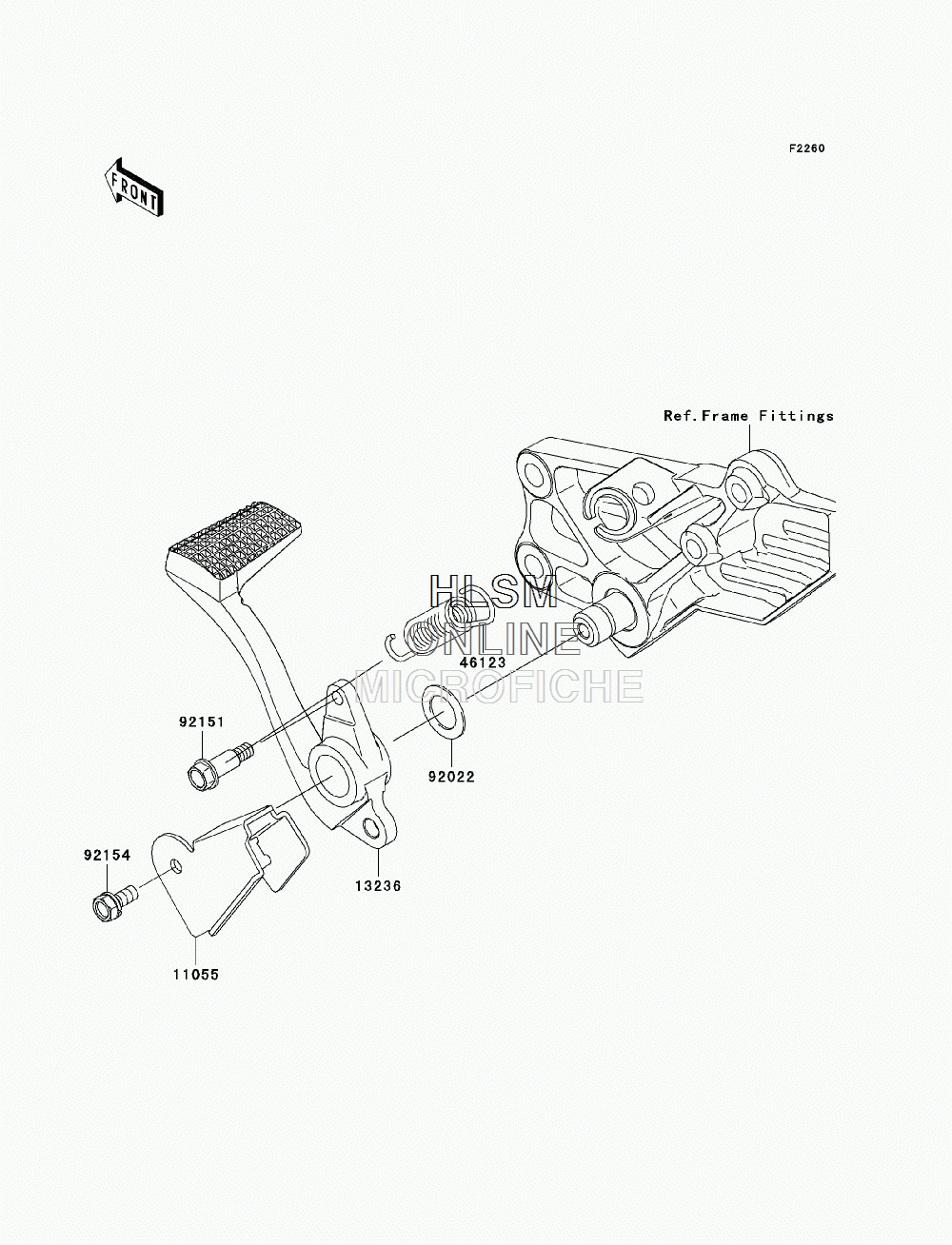

BRAKE PEDAL W/ TORQUE LINK для Kawasaki CONCOURS 14 (ZG1400DAF) - 2010 года выпуска
-
№АртикулНазвание
-
1105511055-1936 BRACKET,GUARDBRACKET,GUARD
-
1323613236-0173 LEVER-COMP,BRAKE PEDALLEVER-COMP,BRAKE PEDAL
-
4612346123-0006 SPRING-COMP,BRAKE PEDAL RETURNSPRING-COMP,BRAKE PEDAL RETURN
-
9202292022-326 WASHER,15.3X24X1WASHER,15.3X24X1
-
9215192151-1295 BOLT,6MMBOLT,6MM
-
9215492154-0293 BOLT,UPSET-WS,6X14BOLT,UPSET-WS,6X14
