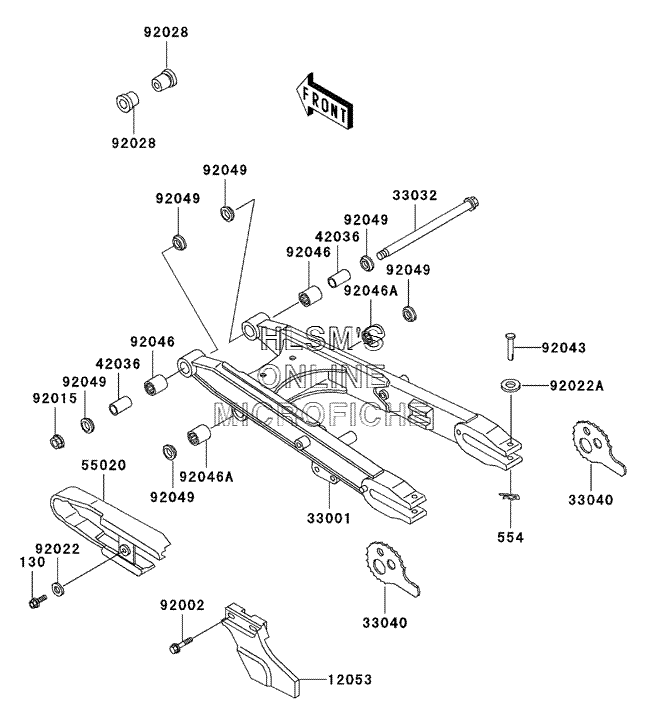

SUSPENSION - SWINGARM для Kawasaki KLR250 - 2001 года выпуска`
-
№АртикулНазвание
-
130130G0512 BOLT, FLANGEDBOLT, FLANGED
-
554554A0600 PIN, SNAPPIN, SNAP
-
1205312053-1104 GUIDE, CHAIN, REARGUIDE, CHAIN, REAR
-
3300133001-1253-CE ARM, COMP, SWING (SILVER NO.25)ARM, COMP, SWING (SILVER NO.25)
-
3303233032-1108 SHAFT, SWING ARMSHAFT, SWING ARM
-
3304033040-1060 ADJUSTER, CHAINADJUSTER, CHAIN
-
4203642036-1103 SLEEVE, 15.1X20X42.5SLEEVE, 15.1X20X42.5
-
5502055020-1154 GUARD, CHAIN, FRONTGUARD, CHAIN, FRONT
-
9200292002-1088 BOLT, 6X45BOLT, 6X45
-
9201592015-1459 NUT, 14MMNUT, 14MM
-
9202292022-104 WASHER, 5.5X20X1.2WASHER, 5.5X20X1.2
-
92022A92022-183 WASHER, 6.2X11X1.5WASHER, 6.2X11X1.5
-
9202892028-1261 BUSHING, SWING ARMBUSHING, SWING ARM
-
9204392043-1110 PIN, 6X44.5PIN, 6X44.5
-
9204692046-1110 BEARING, NEEDLE, BM202726BEARING, NEEDLE, BM202726
-
92046A92046-1113 BEARING, NEEDLE, BTM202730BEARING, NEEDLE, BTM202730
-
9204992049-1109 SEAL, OIL, ARM, CENTERSEAL, OIL, ARM, CENTER
