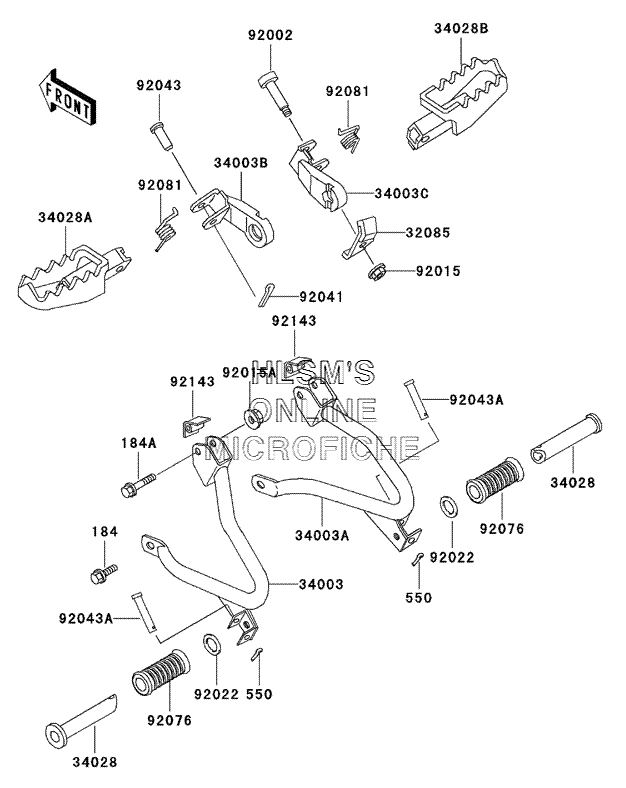

FOOTRESTS для Kawasaki KLR250 - 2001 года выпуска

  • №
    Артикул
    Название
  • 184
    184N0818 BOLT, UPSET, WP, SMALL
    BOLT, UPSET, WP, SMALL
  • 184A
    184N0840 BOLT, UPSET, WP, SMALL
    BOLT, UPSET, WP, SMALL
  • 550
    550D2015 PIN, COTTER, 2.0X15
    PIN, COTTER, 2.0X15
  • 32085
    32085-1178 STOPPER, KICK PEDAL
    STOPPER, KICK PEDAL
  • 34003
    34003-1396-CE HOLDER, STEP, REAR (LEFT) (SILVER NO.25)
    HOLDER, STEP, REAR (LEFT) (SILVER NO.25)
  • 34003A
    34003-1397-CE HOLDER, STEP, REAR (RIGHT) (SILVER NO.25)
    HOLDER, STEP, REAR (RIGHT) (SILVER NO.25)
  • 34003B
    34003-1399 HOLDER, STEP, FRONT (LEFT)
    HOLDER, STEP, FRONT (LEFT)
  • 34003C
    34003-1400 HOLDER, STEP, FRONT (RIGHT)
    HOLDER, STEP, FRONT (RIGHT)
  • 34028
    34028-009 STEP, REAR
    STEP, REAR
  • 34028A
    34028-1378 STEP, FRONT (LEFT)
    STEP, FRONT (LEFT)
  • 34028B
    34028-1379 STEP, FRONT (RIGHT)
    STEP, FRONT (RIGHT)
  • 92002
    92002-1193 BOLT, 6MM
    BOLT, 6MM
  • 92015
    92015-1367 NUT, FLANGED, 6MM
    NUT, FLANGED, 6MM
  • 92015A
    92015-1406 NUT, FLANGED, 8MM
    NUT, FLANGED, 8MM
  • 92022
    92022-1568 WASHER, 20X30X2.3
    WASHER, 20X30X2.3
  • 92041
    92041-1051 COTTER, 2.5X15
    COTTER, 2.5X15
  • 92043
    92043-080 PIN, 8X31
    PIN, 8X31
  • 92043A
    92043-1464 PIN, 6X28
    PIN, 6X28
  • 92076
    92076-020 DAMPER
    DAMPER
  • 92081
    92081-1133 SPRING, STEP
    SPRING, STEP
  • 92143
    92143-1080 COLLAR, STEP HOLDER
    COLLAR, STEP HOLDER
