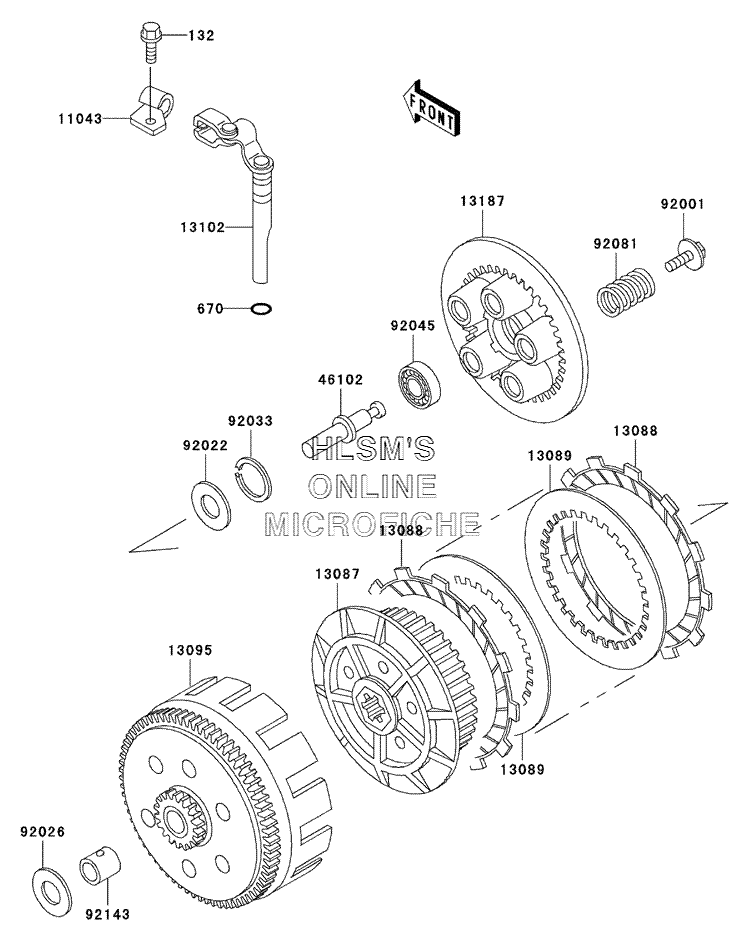

CLUTCH для Kawasaki KLR250 - 2001 года выпуска
-
№АртикулНазвание
-
132132J0612 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
670670B1509 O-RING, 9MMO-RING, 9MM
-
1104311043-1931 BRACKET, CLUTCH CABLEBRACKET, CLUTCH CABLE
-
1308713087-1063 HUB, CLUTCHHUB, CLUTCH
-
1308813088-1057 PLATE, FRICTIONPLATE, FRICTION
-
1308913089-1073 PLATE, CLUTCH, T=2.0PLATE, CLUTCH, T=2.0
-
1309513095-1126 HOUSING, COMP, CLUTCHHOUSING, COMP, CLUTCH
-
1310213102-1064 RELEASE, COMP, CLUTCHRELEASE, COMP, CLUTCH
-
1318713187-1008 PLATE, CLUTCH OPERATINGPLATE, CLUTCH OPERATING
-
4610246102-1033 ROD, CLUTCH PUSHROD, CLUTCH PUSH
-
9200192001-1576 BOLT, CLUTCH SPRING, 6X18BOLT, CLUTCH SPRING, 6X18
-
9202292022-112 WASHER, 20.5X30X1, STEELWASHER, 20.5X30X1, STEEL
-
9202692026-1233 SPACER, 20.1X34X4SPACER, 20.1X34X4
-
9203392033-029 RING, SNAP, 18MMRING, SNAP, 18MM
-
9204592045-1235 BEARING, BALL, 6001C3ML01BEARING, BALL, 6001C3ML01
-
9208192081-083 SPRING, CLUTCHSPRING, CLUTCH
-
9214392143-1669 COLLARCOLLAR
