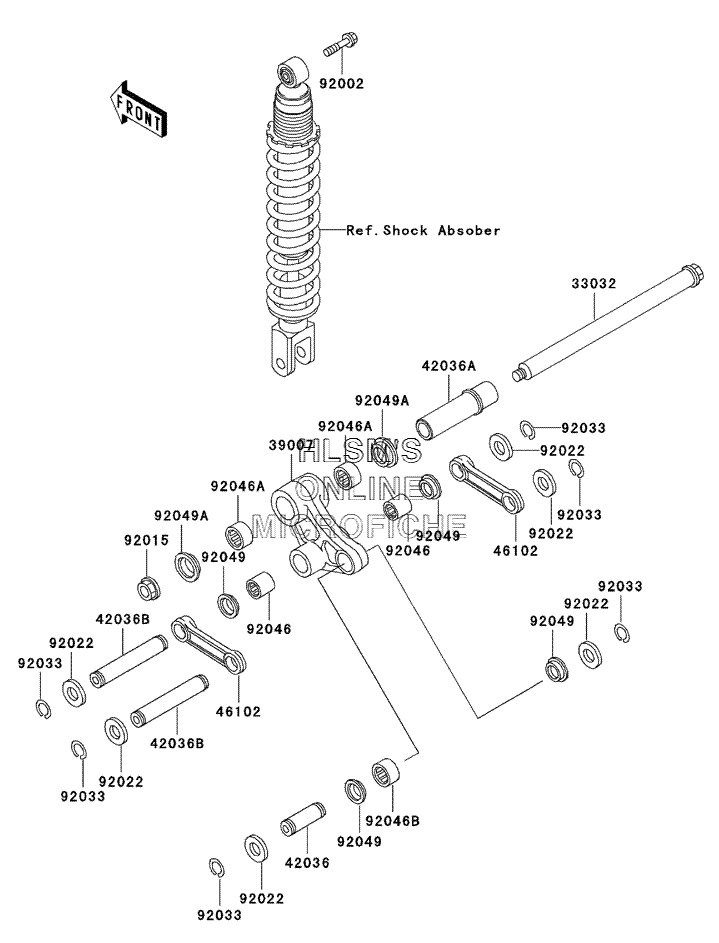

SUSPENSION - REAR для Kawasaki KLR250 - 2001 года выпуска
-
№АртикулНазвание
-
3303233032-1111 SHAFT, SWING ARMSHAFT, SWING ARM
-
3900739007-1059 ARM, SUSP, UNI TRAKARM, SUSP, UNI TRAK
-
4203642036-1133 SLEEVE, L=59SLEEVE, L=59
-
42036A42036-1136 SLEEVE, L=100SLEEVE, L=100
-
42036B42036-1140 SLEEVE, L=121SLEEVE, L=121
-
4610246102-1129 ROD, UNI TRAKROD, UNI TRAK
-
9200292002-1130 BOLT, 12X55BOLT, 12X55
-
9201592015-1459 NUT, 14MMNUT, 14MM
-
9202292022-1547 WASHER, 20.1X28X1WASHER, 20.1X28X1
-
9203392033-1168 RING, SNAP, 18.3MMRING, SNAP, 18.3MM
-
9204692046-1110 BEARING, NEEDLE, BM202726BEARING, NEEDLE, BM202726
-
92046A92046-1111 BEARING, NEEDLE, BM2817BEARING, NEEDLE, BM2817
-
92046B92046-1112 BEARING, NEEDLE, BM202715BEARING, NEEDLE, BM202715
-
9204992049-1109 SEAL, OIL, ARM, CENTERSEAL, OIL, ARM, CENTER
-
92049A92049-1181 SEAL, OILSEAL, OIL
