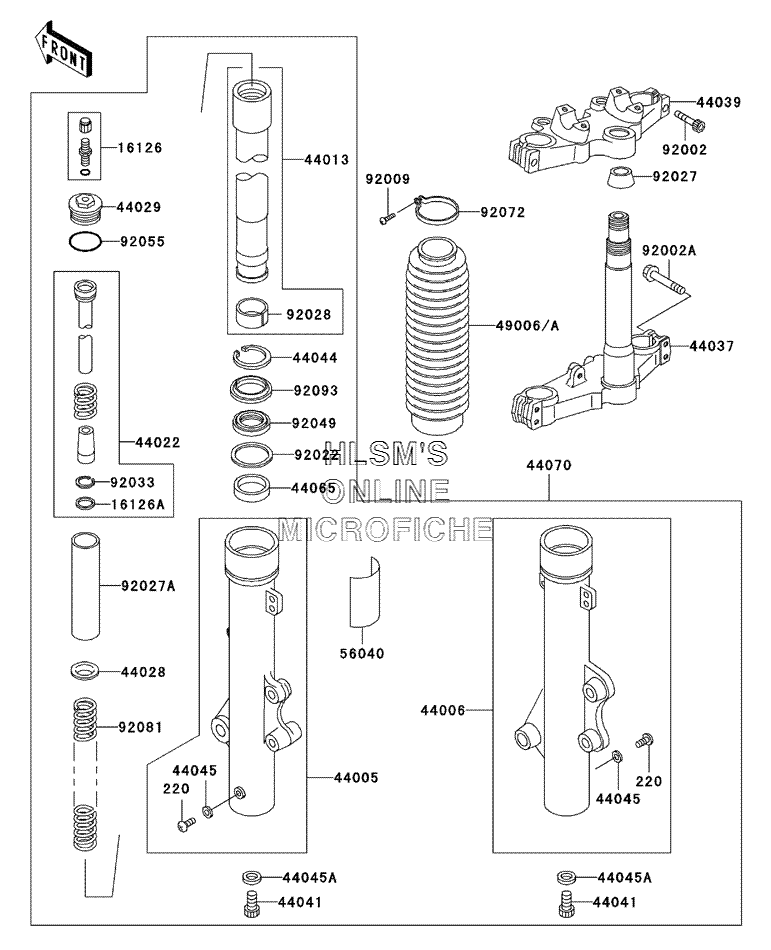

FRONT FORK для Kawasaki KLR250 - 2001 года выпуска

  • №
    Артикул
    Название
  • 220
    220B0406 SCREW, PAN, CROS, 4X6
    SCREW, PAN, CROS, 4X6
  • 16126
    16126-1052 VALVE, AIR
    VALVE, AIR
  • 16126A
    16126-1123 VALVE, FORK CYLINDER
    VALVE, FORK CYLINDER
  • 44005
    44005-1334 PIPE, LEFT FORK OUTER
    PIPE, LEFT FORK OUTER
  • 44006
    44006-1332 PIPE, RIGHT FORK OUTER
    PIPE, RIGHT FORK OUTER
  • 44013
    44013-1224 PIPE, FORK INNER
    PIPE, FORK INNER
  • 44022
    44022-1175 CYLINDER, FORK
    CYLINDER, FORK
  • 44028
    44028-1004 GUIDE, FORK SPRING
    GUIDE, FORK SPRING
  • 44029
    44029-1119 SEAT, FORK SPRING
    SEAT, FORK SPRING
  • 44037
    44037-1178 HOLDER, FORK UNDER
    HOLDER, FORK UNDER
  • 44039
    44039-1121 HOLDER, FORK UPPER
    HOLDER, FORK UPPER
  • 44041
    44041-040 BOLT, SOCKET, FORK CYLINDER
    BOLT, SOCKET, FORK CYLINDER
  • 44044
    44044-015 RING, SNAP
    RING, SNAP
  • 44045
    44045-002 GASKET, FORK DRAIN PLUG
    GASKET, FORK DRAIN PLUG
  • 44045A
    44045-057 GASKET
    GASKET
  • 44065
    44065-1016 BUSHING, FRONT FORK
    BUSHING, FRONT FORK
  • 44070
    44070-5140 DAMPER, ASSY, FORK
    DAMPER, ASSY, FORK
  • 49006A
    49006-1009-4Y BOOT, FORK (S.M.BROWN)
    BOOT, FORK (S.M.BROWN)
  • 56040
    56040-1120 LABEL, WARNING, FRONT FORK
    LABEL, WARNING, FRONT FORK
  • 92002
    92002-1277 BOLT, SOCKET, 8X32
    BOLT, SOCKET, 8X32
  • 92002A
    92002-1476 BOLT, FLANGED, 8X40
    BOLT, FLANGED, 8X40
  • 92009
    92009-1348 SCREW, 4X16
    SCREW, 4X16
  • 92022
    92022-1275 WASHER, FRONT FORK
    WASHER, FRONT FORK
  • 92027
    92027-1791 COLLAR, UPPER BRACKET
    COLLAR, UPPER BRACKET
  • 92027A
    92027-1872 COLLAR, L=165
    COLLAR, L=165
  • 92028
    92028-1354 BUSHING, INNER PIPE
    BUSHING, INNER PIPE
  • 92033
    92033-1004 RING, SNAP, FORK CYLINDER
    RING, SNAP, FORK CYLINDER
  • 92049
    92049-1216 SEAL, OIL, FORK OUTER PIPE
    SEAL, OIL, FORK OUTER PIPE
  • 92055
    92055-1051 O-RING, FORK TOP CAP
    O-RING, FORK TOP CAP
  • 92072
    92072-1008 BAND, BOOT
    BAND, BOOT
  • 92081
    92081-1825 SPRING, FRONT FORK
    SPRING, FRONT FORK
  • 92093
    92093-1181 SEAL, FORK OUTER PIPE
    SEAL, FORK OUTER PIPE
