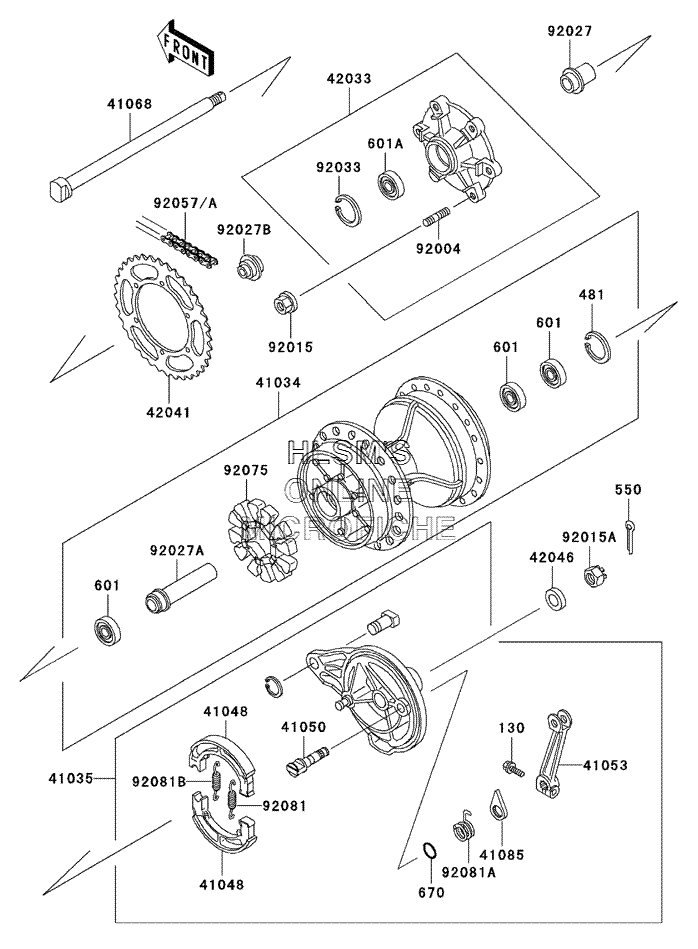

REAR HUB для Kawasaki KLR250 - 2001 года выпуска

  • №
    Артикул
    Название
  • 130
    130G0625 BOLT, FLANGED, 6X25
    BOLT, FLANGED, 6X25
  • 481
    481J3500 CIRCLIP, TYPE, C, 35MM
    CIRCLIP, TYPE, C, 35MM
  • 550
    550D4035 PIN, COTTER, 4.0X35
    PIN, COTTER, 4.0X35
  • 601
    601B6003UG BEARING, BALL, #6003UG
    BEARING, BALL, #6003UG
  • 601A
    601B6004UG BEARING, BALL, #6004UG
    BEARING, BALL, #6004UG
  • 670
    670B2015 O-RING, 15MM
    O-RING, 15MM
  • 41034
    41034-1113 DRUM, ASSY, REAR BRAKE
    DRUM, ASSY, REAR BRAKE
  • 41035
    41035-1289 PANEL, ASSY, BRAKE, REAR
    PANEL, ASSY, BRAKE, REAR
  • 41048
    41048-1084 SHOE, BRAKE
    SHOE, BRAKE
  • 41050
    41050-1058 CAM, BRAKE
    CAM, BRAKE
  • 41053
    41053-1061 LEVER, BRAKE CAM
    LEVER, BRAKE CAM
  • 41068
    41068-1178 AXLE, REAR
    AXLE, REAR
  • 41085
    41085-005 INDICATOR
    INDICATOR
  • 42033
    42033-1111 COUPLING, ASSY, REAR HUB
    COUPLING, ASSY, REAR HUB
  • 42041
    42041-1191 SPROCKET, HUB (44 TEETH)
    SPROCKET, HUB (44 TEETH)
  • 42046
    42046-009 WASHER, 17.3X32X3.2
    WASHER, 17.3X32X3.2
  • 92004
    92004-1149 STUD, 8X18
    STUD, 8X18
  • 92015
    92015-1668 NUT, FLANGED, LOCK, 8MM
    NUT, FLANGED, LOCK, 8MM
  • 92015A
    92015-1947 NUT, CASTLE, 16MM
    NUT, CASTLE, 16MM
  • 92027
    92027-1770 COLLAR, REAR HUB COUPLING, L=23
    COLLAR, REAR HUB COUPLING, L=23
  • 92027A
    92027-1823 COLLAR, REAR BRAKE DRUM, L=78
    COLLAR, REAR BRAKE DRUM, L=78
  • 92027B
    92027-1826 COLLAR, REAR HUB COUPLING, L=13
    COLLAR, REAR HUB COUPLING, L=13
  • 92033
    92033-1041 RING, SNAP, 42MM
    RING, SNAP, 42MM
  • 92057A
    92057-1509 CHAIN, DRIVE, EK520LV, OX104L
    CHAIN, DRIVE, EK520LV, OX104L
  • 92075
    92075-1068 DAMPER, SHOCK, REAR HUB
    DAMPER, SHOCK, REAR HUB
  • 92081
    92081-1550 SPRING, BRAKE SHOE
    SPRING, BRAKE SHOE
  • 92081A
    92081-1615 SPRING, BRAKE CAM LEVER RETURN
    SPRING, BRAKE CAM LEVER RETURN
  • 92081B
    92081-1766 SPRING, BRAKE SHOE
    SPRING, BRAKE SHOE
