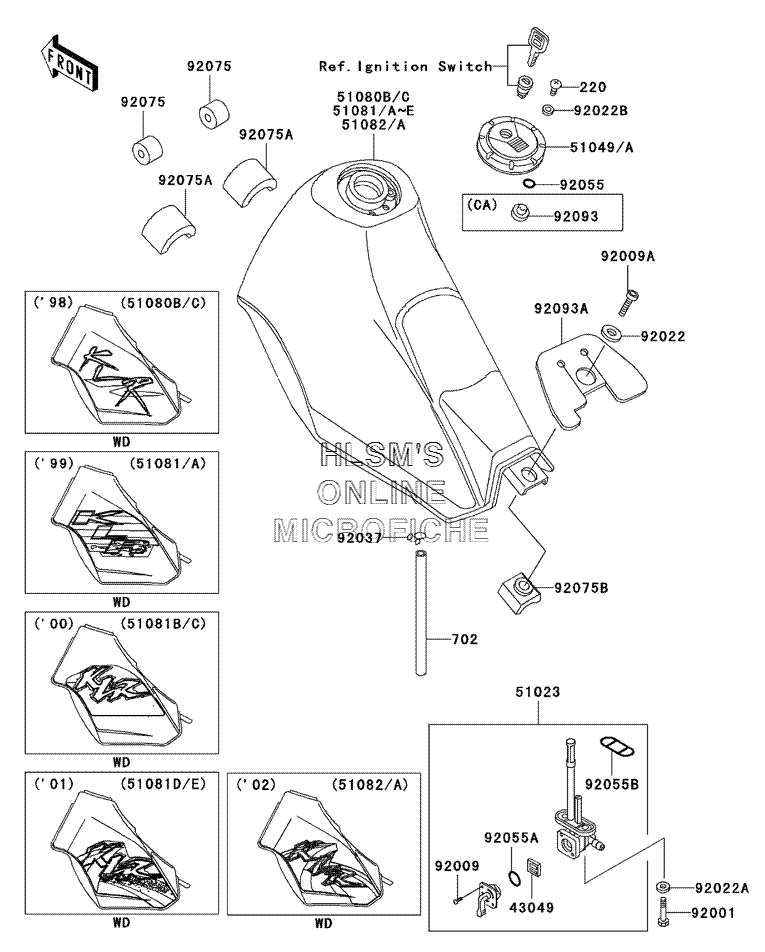

FUEL TANK для Kawasaki KLR250 - 2001 года выпуска

  • №
    Артикул
    Название
  • 43049
    43049-1017 PACKING, FUEL TAP LEVER
    PACKING, FUEL TAP LEVER
  • 51023
    51023-1112 TAP, ASSY, FUEL
    TAP, ASSY, FUEL
  • 51049A
    51049-1134 CAP, TANK, FUEL
    CAP, TANK, FUEL
  • 220
    220D0510 SCREW, PAN, CROS
    SCREW, PAN, CROS
  • 702
    702A05750 TUBE, RUBBER, 5X750 (US ONLY)
    TUBE, RUBBER, 5X750 (US ONLY)
  • 51082
    51082-5046-F2 TANK, COMP, FUEL (G.SILVER) (US ONLY)
    TANK, COMP, FUEL (G.SILVER) (US ONLY)
  • 51082A
    51082-5047-F2 TANK, COMP, FUEL (G.SILVER) (CALIF. ONLY)
    TANK, COMP, FUEL (G.SILVER) (CALIF. ONLY)
  • 92001
    92001-1091 BOLT, 6X20
    BOLT, 6X20
  • 92009
    92009-1123 SCREW, 3X5
    SCREW, 3X5
  • 92009A
    92009-1294 SCREW, 6X8
    SCREW, 6X8
  • 92022
    92022-1659 WASHER, 6.2X38X1.2
    WASHER, 6.2X38X1.2
  • 92022A
    92022-183 WASHER, 6.2X11X1.5
    WASHER, 6.2X11X1.5
  • 92022B
    92022-1977 WASHER, 5.1X10X1.0
    WASHER, 5.1X10X1.0
  • 92037
    92037-1610 CLAMP (US ONLY)
    CLAMP (US ONLY)
  • 92055
    92055-1023 O-RING
    O-RING
  • 92055A
    92055-1111 O-RING, FUEL TAP LEVER
    O-RING, FUEL TAP LEVER
  • 92055B
    92055-1112 O-RING, FUEL TAP PACKING
    O-RING, FUEL TAP PACKING
  • 92075
    92075-125 DAMPER, FUEL TANK
    DAMPER, FUEL TANK
  • 92075A
    92075-1382 DAMPER, FUEL TANK
    DAMPER, FUEL TANK
  • 92075B
    92075-1638 DAMPER, FUEL TANK
    DAMPER, FUEL TANK
  • 92093
    92093-1030 SEAL, FUEL TANK CAP (CALIF. ONLY)
    SEAL, FUEL TANK CAP (CALIF. ONLY)
  • 92093A
    92093-1182 SEAL, FUEL TANK
    SEAL, FUEL TANK
