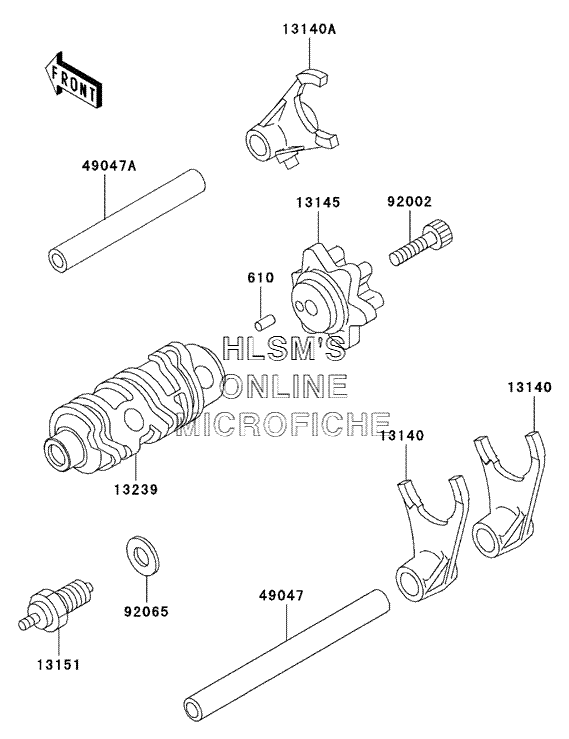

GEAR CHANGE DRUM W/ SHIFT FORK(S) для Kawasaki KLR250 - 2001 года выпуска`
-
№АртикулНазвание
-
610610A0410 ROLLER, 4X10ROLLER, 4X10
-
1314013140-1116 FORK, SHIFTFORK, SHIFT
-
13140A13140-1117 FORK, SHIFTFORK, SHIFT
-
1314513145-1054 CAM, CHANGE DRUMCAM, CHANGE DRUM
-
1315113151-1080 SWITCH, COMP, NEUTRALSWITCH, COMP, NEUTRAL
-
1323913239-1113 DRUM, ASSY, CHANGEDRUM, ASSY, CHANGE
-
4904749047-1056 ROD, SHIFT, L=106.7ROD, SHIFT, L=106.7
-
49047A49047-1057 ROD, SHIFT, L=71.7ROD, SHIFT, L=71.7
-
9200292002-1696 BOLT, SOCKET, 6X25BOLT, SOCKET, 6X25
-
9206592065-058 GASKET, 10.5X16X1GASKET, 10.5X16X1
