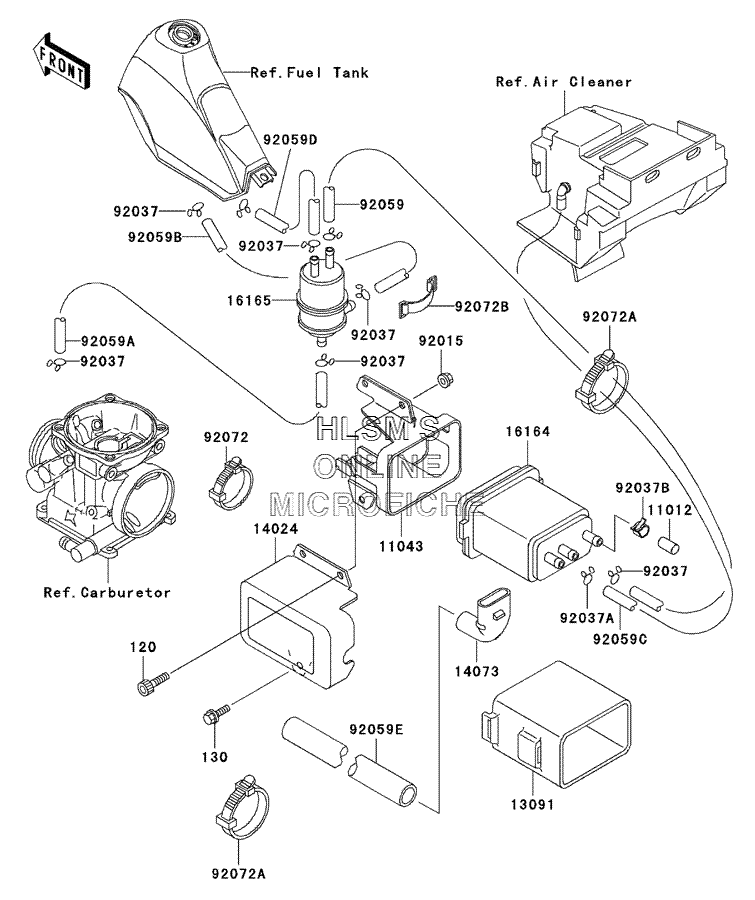

FUEL EVAPORATIVE SYSTEM (CALIF. ONLY) для Kawasaki KLR250 - 2001 года выпуска`
-
№АртикулНазвание
-
120120S0616 BOLT, SOCKET, 6X16 (BLACK)BOLT, SOCKET, 6X16 (BLACK)
-
130130C0608 BOLT, FLANGEDBOLT, FLANGED
-
1101211012-1388 CAP, CANISTERCAP, CANISTER
-
1104311043-1180 BRACKET, CANISTERBRACKET, CANISTER
-
1309113091-1176 HOLDER, CANISTERHOLDER, CANISTER
-
1402414024-1063 COVER, CANISTERCOVER, CANISTER
-
1407314073-1219 DUCT, CANISTERDUCT, CANISTER
-
1616416164-1001 CANISTERCANISTER
-
1616516165-1001 SEPARATORSEPARATOR
-
9201592015-1365 NUT, 6MMNUT, 6MM
-
9203792037-072 CLAMP, TUBECLAMP, TUBE
-
92037A92037-1104 CLAMP, HOSECLAMP, HOSE
-
92037B92037-1512 CLAMP, CANISTERCLAMP, CANISTER
-
9205992059-1531 TUBE, 5X9X860 (BLUE)TUBE, 5X9X860 (BLUE)
-
92059A92059-1533 TUBE, 4X9X500 (WHITE)TUBE, 4X9X500 (WHITE)
-
92059B92059-1534 TUBE, 5X9X430 (RED)TUBE, 5X9X430 (RED)
-
92059C92059-1535 TUBE, 7X12X660 (GREEN)TUBE, 7X12X660 (GREEN)
-
92059D92059-1536 TUBE, 5X9X255 (BLUE)TUBE, 5X9X255 (BLUE)
-
92059E92059-1571 TUBE, 14X20X470TUBE, 14X20X470
-
9207292072-031 BAND, L=149BAND, L=149
-
92072A92072-056 BAND, L=186BAND, L=186
-
92072B92072-1419 BAND, L=50BAND, L=50
