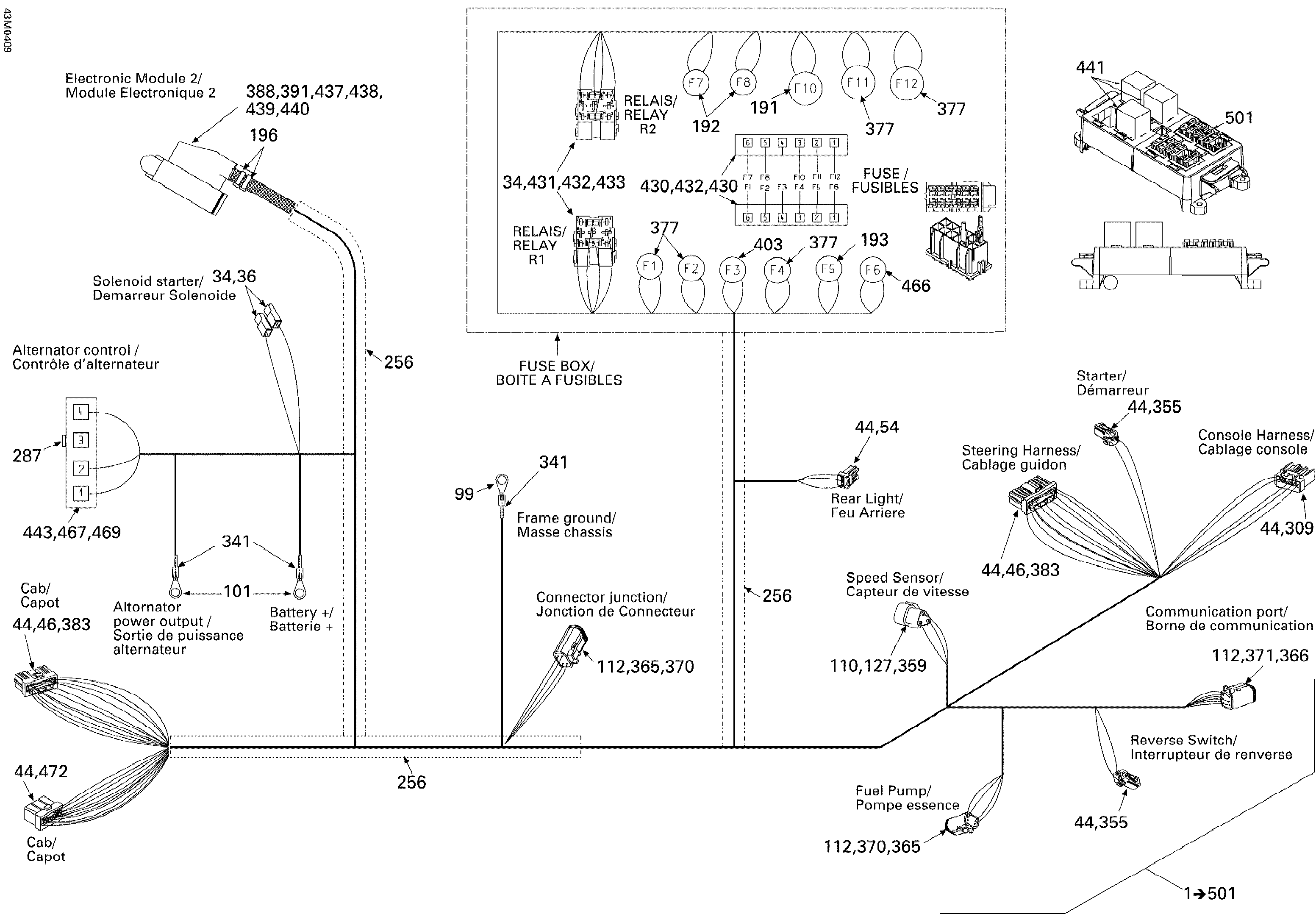

10- Frame harness для BRP Ski-Doo Legend V-1000 - 2004
-
№АртикулНазвание
-
1515176007 Frame Harness. Includes items 1 to 501Frame Harness. Includes items 1 to 501
-
34409010100 Female TerminalFemale Terminal
-
36409010400 Female Terminal Housing (1 Circuit)Female Terminal Housing (1 Circuit)
-
44515175231 Female TerminalFemale Terminal
-
46515175282 Female TerminalFemale Terminal
-
54515175495 Female Terminal Housing (3 Circuits)Female Terminal Housing (3 Circuits)
-
99278000992 Ring TerminalRing Terminal
-
101278001392 Open BarrelOpen Barrel
-
110278000631 Male TerminalMale Terminal
-
112278000632 Female TerminalFemale Terminal
-
122278000739 Female Terminal Housing (4 Circuits)Female Terminal Housing (4 Circuits)
-
127409207600 Lock Male (3 Circuits)Lock Male (3 Circuits)
-
191410917200 Fuse (30 Amperes)Fuse (30 Amperes)
-
192409003900 Fuse (20 Amperes)Fuse (20 Amperes)
-
193409012800 Fuse (1 Ampere)Fuse (1 Ampere)
-
196293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
206409004200 Female TerminalFemale Terminal
-
256415080000 Tubing 16 mmTubing 16 mm
-
287710000080 CapCap
-
298293740005 Vinyl Tape 3/4''Vinyl Tape 3/4''
-
309515175543 Female Terminal Housing (6 Circuits)Female Terminal Housing (6 Circuits)
-
355515175658 Female Terminal Housing (2 Circuits)Female Terminal Housing (2 Circuits)
-
359515175666 Male Terminal Housing (3 Circuits)Male Terminal Housing (3 Circuits)
-
365515175672 Female Terminal Housing (4 Circuits)Female Terminal Housing (4 Circuits)
-
366515175673 Female Terminal Housing (6 Circuits)Female Terminal Housing (6 Circuits)
-
370515175677 Lock Female (4 Circuits)Lock Female (4 Circuits)
-
371515175678 Lock Female (6 Circuits)Lock Female (6 Circuits)
-
377278000344 Fuse (5 Amperes)Fuse (5 Amperes)
-
383515175719 Female Terminal Housing (11 Circuits)Female Terminal Housing (11 Circuits)
-
387293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
388278001750 Female TerminalFemale Terminal
-
391278001751 Female Terminal Housing (41 Circuits)Female Terminal Housing (41 Circuits)
-
403278000704 Fuse (7.5 Amperes)Fuse (7.5 Amperes)
-
430515175857 Fuse HolderFuse Holder
-
431515175856 Relay HolderRelay Holder
-
432515175855 Female TerminalFemale Terminal
-
433515175854 Female TerminalFemale Terminal
-
437515175886 SealSeal
-
438515175883 LatchLatch
-
439515175884 LockLock
-
440515175885 CoverCover
-
441410113604 RelayRelay
-
443710000335 Female TerminalFemale Terminal
-
466415128525 Fuse (0.5 Ampere)Fuse (0.5 Ampere)
-
467515175978 Female Terminal Housing (4 Circuits)Female Terminal Housing (4 Circuits)
-
469515175979 SealSeal
-
472415128527 Female Terminal HousingFemale Terminal Housing
-
501515175739 Fuse Box BaseFuse Box Base
