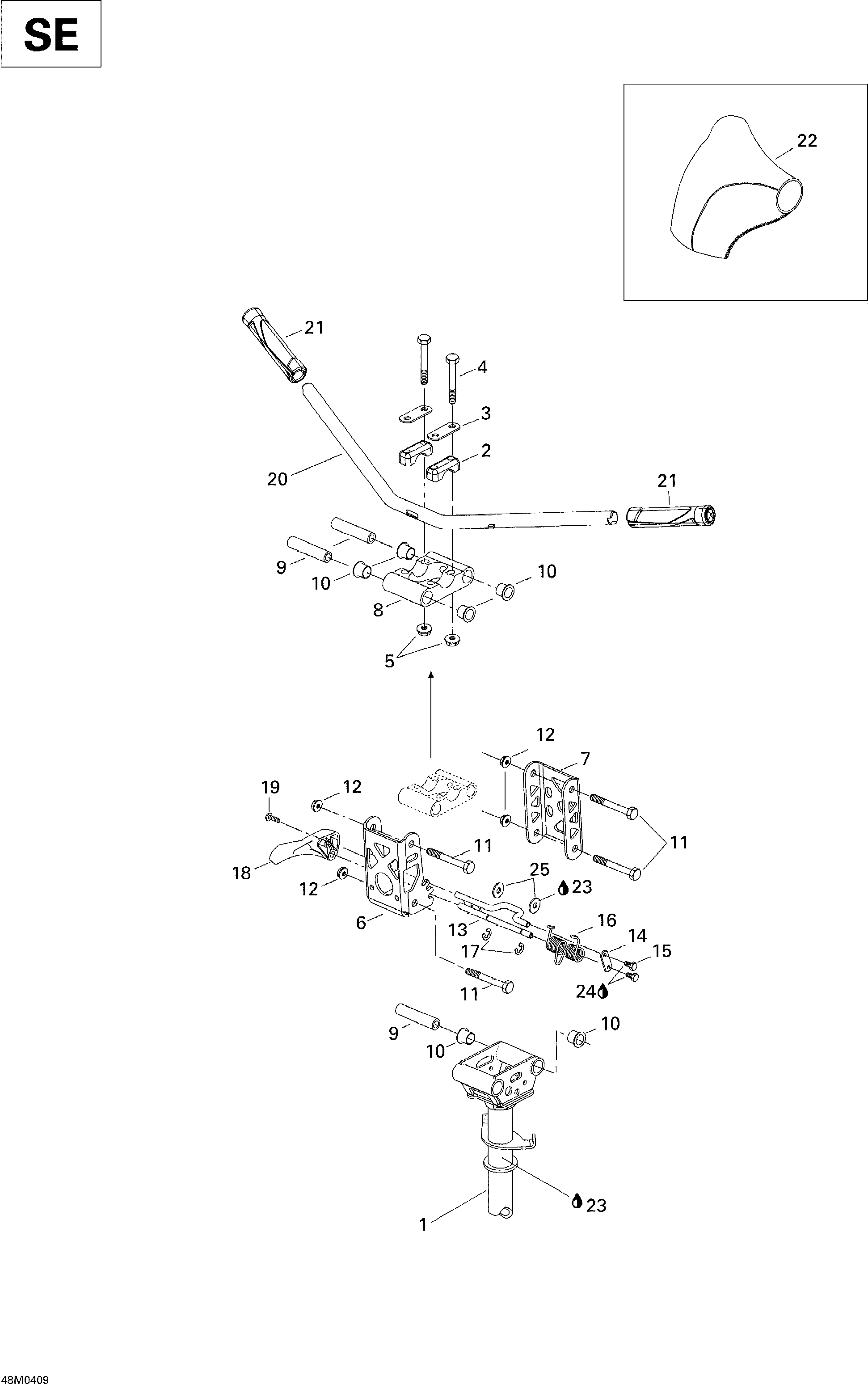

07- Adjustable Handle Bar (SE) для BRP Ski-Doo Legend V-1000 - 2004
-
№АртикулНазвание
-
1506151764 Tube. Legend SE / Legend SE GTTube. Legend SE / Legend SE GT
-
2506151622 Steering Support. Legend SE / Legend SE GTSteering Support. Legend SE / Legend SE GT
-
3506151196 Reinforcement. Legend SE / Legend SE GTReinforcement. Legend SE / Legend SE GT
-
4207086044 Hex Screw M8 X 60. Legend SE / Legend SE GTHex Screw M8 X 60. Legend SE / Legend SE GT
-
5233281414 Elastic Flanged Nut M8. Legend SE / Legend SE GTElastic Flanged Nut M8. Legend SE / Legend SE GT
-
6506151156 Front Arm. Legend SE / Legend SE GTFront Arm. Legend SE / Legend SE GT
-
7506151152 Rear Arm. Legend SE / Legend SE GTRear Arm. Legend SE / Legend SE GT
-
8506151147 Mach. Clamp. Legend SE / Legend SE GTMach. Clamp. Legend SE / Legend SE GT
-
9506151146 Spacer. Legend SE / Legend SE GTSpacer. Legend SE / Legend SE GT
-
10506151153 Cushion. Legend SE / Legend SE GTCushion. Legend SE / Legend SE GT
-
11207688044 Hex Flanged Screw M8 X 80. Legend SE / Legend SE GTHex Flanged Screw M8 X 80. Legend SE / Legend SE GT
-
12233281414 Elastic Flanged Nut M8. Legend SE / Legend SE GTElastic Flanged Nut M8. Legend SE / Legend SE GT
-
13506151162 Lock. Legend SE / Legend SE GTLock. Legend SE / Legend SE GT
-
14506151240 Plate. Legend SE / Legend SE GTPlate. Legend SE / Legend SE GT
-
15207141044 Hex Screw M4 X 10. Legend SE / Legend SE GTHex Screw M4 X 10. Legend SE / Legend SE GT
-
16506151219 Spring. Legend SE / Legend SE GTSpring. Legend SE / Legend SE GT
-
17414274500 Circlip. Legend SE / Legend SE GTCirclip. Legend SE / Legend SE GT
-
18506151188 Handle. Legend SE / Legend SE GTHandle. Legend SE / Legend SE GT
-
19205041284 Socket Head Screw M4 X 12. Legend SE / Legend SE GTSocket Head Screw M4 X 12. Legend SE / Legend SE GT
-
20506151685 Handlebar. Legend SE / Legend SE GTHandlebar. Legend SE / Legend SE GT
-
21506151714 Handle GripHandle Grip
-
22506151598 Cover. Legend SE / Legend SE GTCover. Legend SE / Legend SE GT
-
23219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
24293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
25517302265 Washer. Legend SE / Legend SE GTWasher. Legend SE / Legend SE GT
