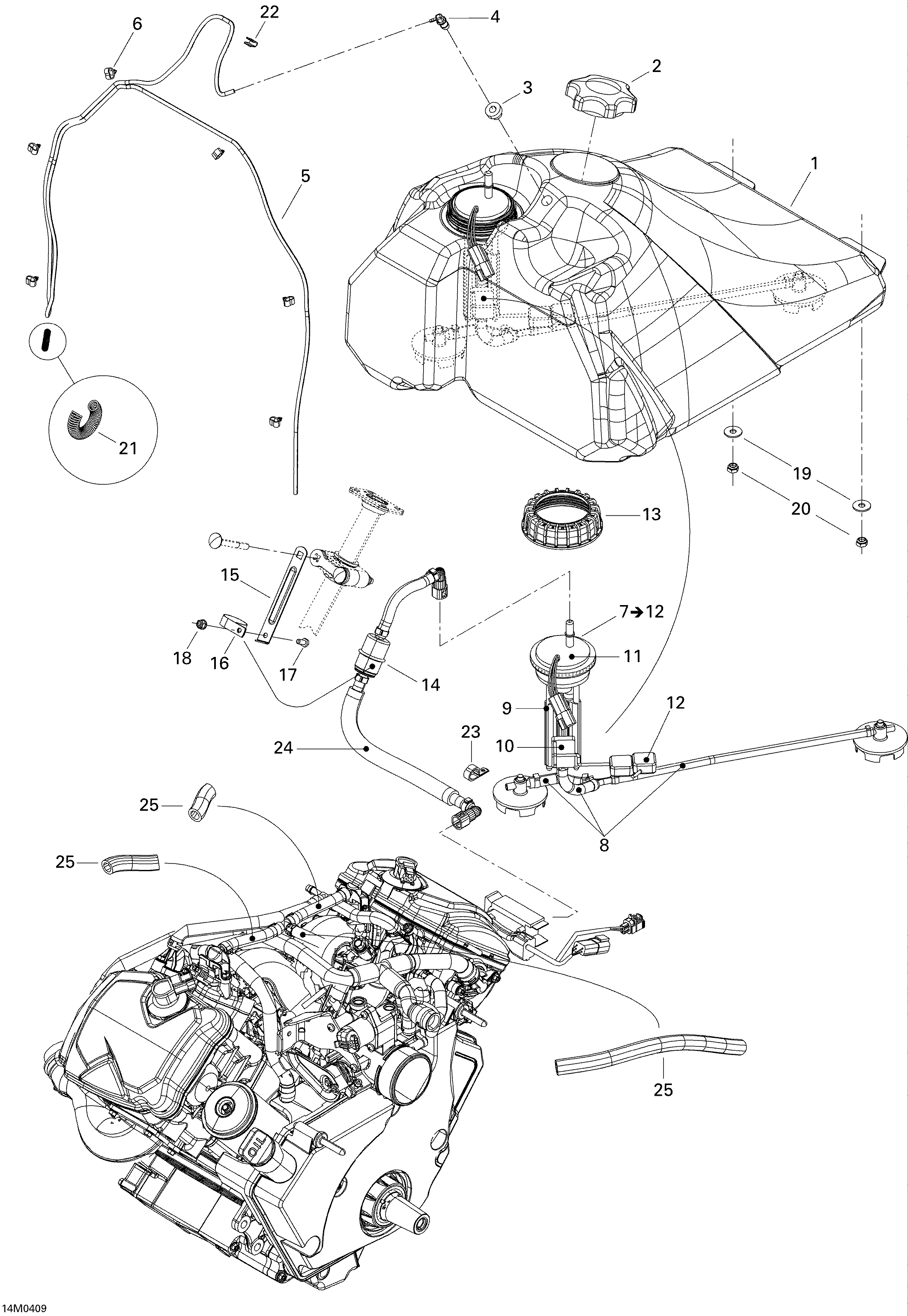

02- Fuel System для BRP Ski-Doo Legend V-1000 - 2004

  • №
    Артикул
    Название
  • 1
    513033005 Fuel Tank
    Fuel Tank
  • 2
    513033020 Fuel Tank Cap. Legend Sport / Legend Sport GT
    Fuel Tank Cap. Legend Sport / Legend Sport GT
  • 513033025 Fuel Tank Cap. Legend SE / Legend SE GT
    Fuel Tank Cap. Legend SE / Legend SE GT
  • 3
    513032908 Grommet
    Grommet
  • 4
    414814100 Male Connector
    Male Connector
  • 5
    415080100 Primer Line
    Primer Line
  • 6
    513032923 Tube Clamp
    Tube Clamp
  • 7
    513033101 Fuel Pump Module. Includes 7 to 12
    Fuel Pump Module. Includes 7 to 12
  • 8
    861302300 Fuel Hose Kit
    Fuel Hose Kit
  • 9
    861302000 Fuel Pump Kit
    Fuel Pump Kit
  • 10
    861301800 Resistor Card Kit
    Resistor Card Kit
  • 11
    861302100 Regulator Kit
    Regulator Kit
  • 12
    861301900 Float Lever Kit
    Float Lever Kit
  • 13
    513033040 Nut (Fuel Pump Module)
    Nut (Fuel Pump Module)
  • 14
    513033078 Fuel Filter Ass'Y
    Fuel Filter Ass'Y
  • 15
    513033057 Filter Support
    Filter Support
  • 16
    513033047 Open Clamp
    Open Clamp
  • 17
    207161444 Hex Screw M6 X 14
    Hex Screw M6 X 14
  • 18
    233261414 Elastic Flanged Nut M6
    Elastic Flanged Nut M6
  • 19
    234082410 Flat Washer M8
    Flat Washer M8
  • 20
    232581414 Elastic Stop Nut M8
    Elastic Stop Nut M8
  • 21
    414818200 Spring
    Spring
  • 22
    414479100 Clip. Legend Sport / Legend Sport GT
    Clip. Legend Sport / Legend Sport GT
  • 23
    513033082 Open Clamp
    Open Clamp
  • 24
    513033083 Tubing 16 mm
    Tubing 16 mm
  • 25
    415080000 Tubing 16 mm
    Tubing 16 mm
