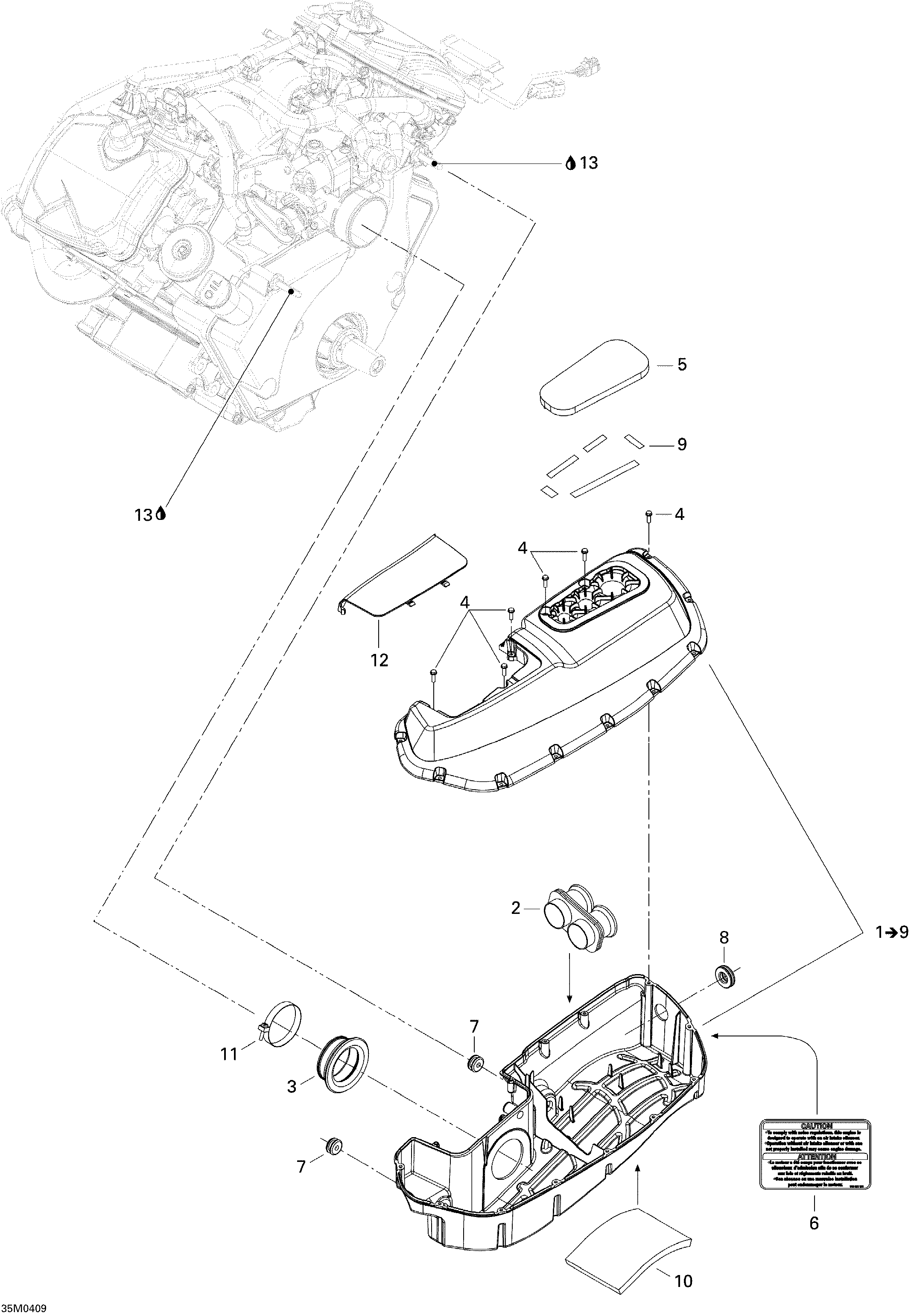

02- Air Intake для BRP Ski-Doo Legend V-1000 - 2004
-
№АртикулНазвание
-
1508000315 Air Intake Ass'Y. Includes Items 1 to 9Air Intake Ass'Y. Includes Items 1 to 9
-
2273000107 Inlet TubeInlet Tube
-
3508000254 Intake AdaptatorIntake Adaptator
-
4243141680 Hex Screw M4.8 X 1.8Hex Screw M4.8 X 1.8
-
5508000251 Air FilterAir Filter
-
6516001191 Caution Label (Air Intake)Caution Label (Air Intake)
-
7508000331 GrommetGrommet
-
8570065500 GrommetGrommet
-
9415110900 Velcro 1/2''Velcro 1/2''
-
10508000250 Inferior FoamInferior Foam
-
11508000382 Gemi ClampGemi Clamp
-
12508000253 DoorDoor
-
13293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
