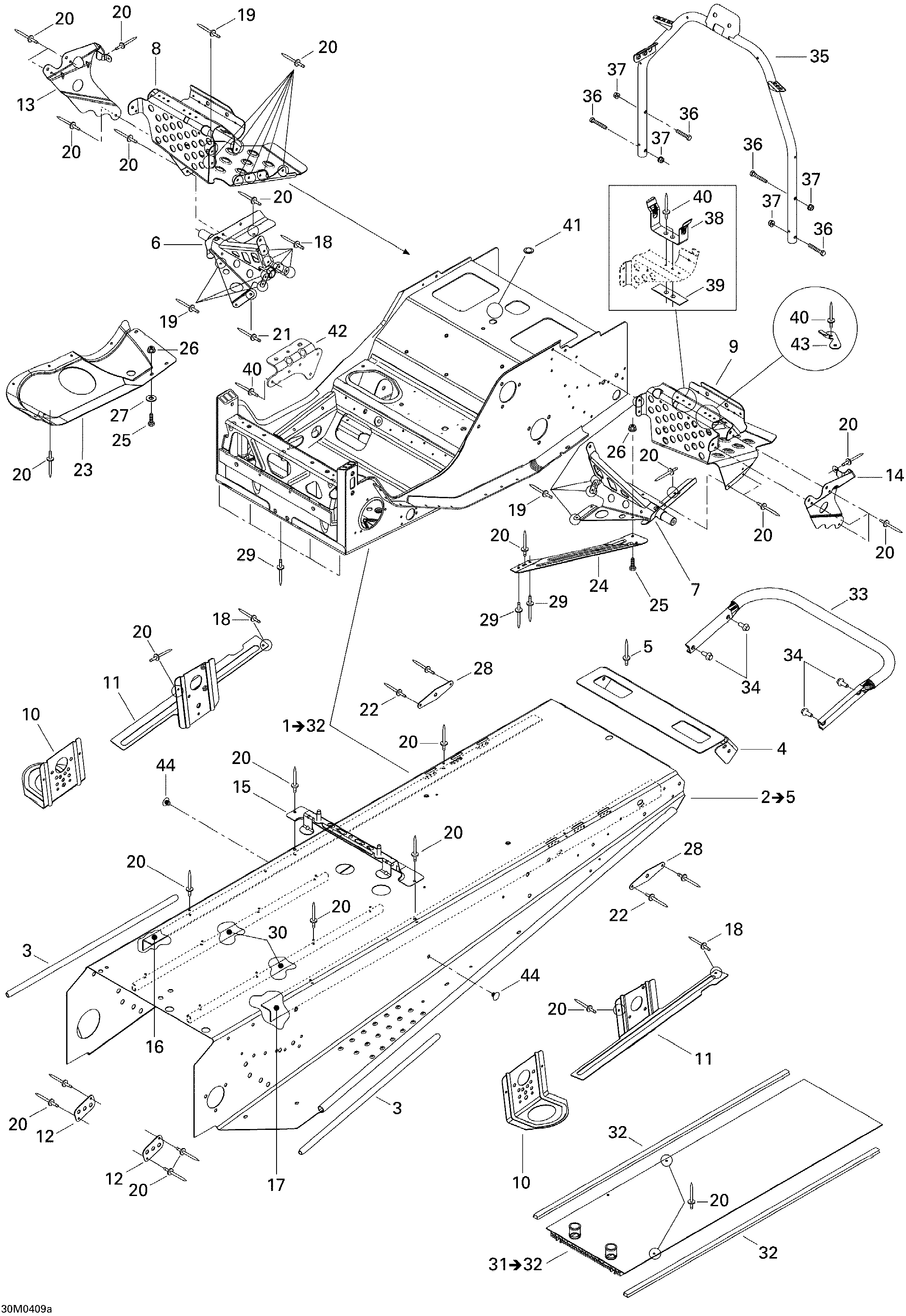

09- Frame (2 Passengers Seat) для BRP Ski-Doo Legend V-1000 - 2004
-
№АртикулНазвание
-
1415128576 Frame. Includes 1 to 32 / 2 Passenger SeatFrame. Includes 1 to 32 / 2 Passenger Seat
-
2415128615 Forming Frame. Includes 2 to 5Forming Frame. Includes 2 to 5
-
3518304746 Footrest ReinforcementFootrest Reinforcement
-
4518321303 Rear CapRear Cap
-
5390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
6518320506 RH Footrest SupportRH Footrest Support
-
7518320507 LH Sootrest SupportLH Sootrest Support
-
8518323563 RH FootrestRH Footrest
-
9518323564 LH FootrestLH Footrest
-
10518321495 Front BracketFront Bracket
-
11518323051 RH Rear BracketRH Rear Bracket
-
518323055 LH Rear BracketLH Rear Bracket
-
12518201321 Reinforcement PlateReinforcement Plate
-
13518321305 RH Footrest ReinforcementRH Footrest Reinforcement
-
14518321307 LH Footrest ReinforcementLH Footrest Reinforcement
-
15518321510 Fuel Tank BracketFuel Tank Bracket
-
16518323190 RH Frame ReinforcementRH Frame Reinforcement
-
17518323191 LH Frame ReinforcementLH Frame Reinforcement
-
18390909200 Rivet AvexRivet Avex
-
19390909100 Rivet AvexRivet Avex
-
20390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
21390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
22390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
23518322636 RH Bottom Pan PlateRH Bottom Pan Plate
-
24518322119 LH Reinforcement PlateLH Reinforcement Plate
-
25207152044 Hex Screw M5 X 20Hex Screw M5 X 20
-
26233251414 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
27391301700 Flat WasherFlat Washer
-
28518316767 Rear ReinforcementRear Reinforcement
-
29390910300 Rivet HenrobRivet Henrob
-
30518321543 Frame ProtectorFrame Protector
-
31518322905 Rear Radiator. Includes 31 to 32Rear Radiator. Includes 31 to 32
-
32518321656 Radiator ProtectorRadiator Protector
-
33517272510 Rear Bumper. 2 Passenger Seat / Canada / United StatesRear Bumper. 2 Passenger Seat / Canada / United States
-
517272510 Rear Bumper. 2 Passenger Seat / EuropeRear Bumper. 2 Passenger Seat / Europe
-
34207682044 Hex Flanged Screw M8 X 20. 2 Passenger Seat / EuropeHex Flanged Screw M8 X 20. 2 Passenger Seat / Europe
-
207682044 Hex Flanged Screw M8 X 20. 2 Passenger Seat / Canada / United StatesHex Flanged Screw M8 X 20. 2 Passenger Seat / Canada / United States
-
35518322755 Handle SupportHandle Support
-
36207663544 Hex Flanged Screw M6 X 35Hex Flanged Screw M6 X 35
-
37233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
38518202100 Belt Guard BracketBelt Guard Bracket
-
39518207500 ReinforcementReinforcement
-
40390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
41414859400 CapCap
-
42518322635 Muffler SupportMuffler Support
-
43518322031 Tool Kit BracketTool Kit Bracket
-
44518321954 Fastener PanelFastener Panel
