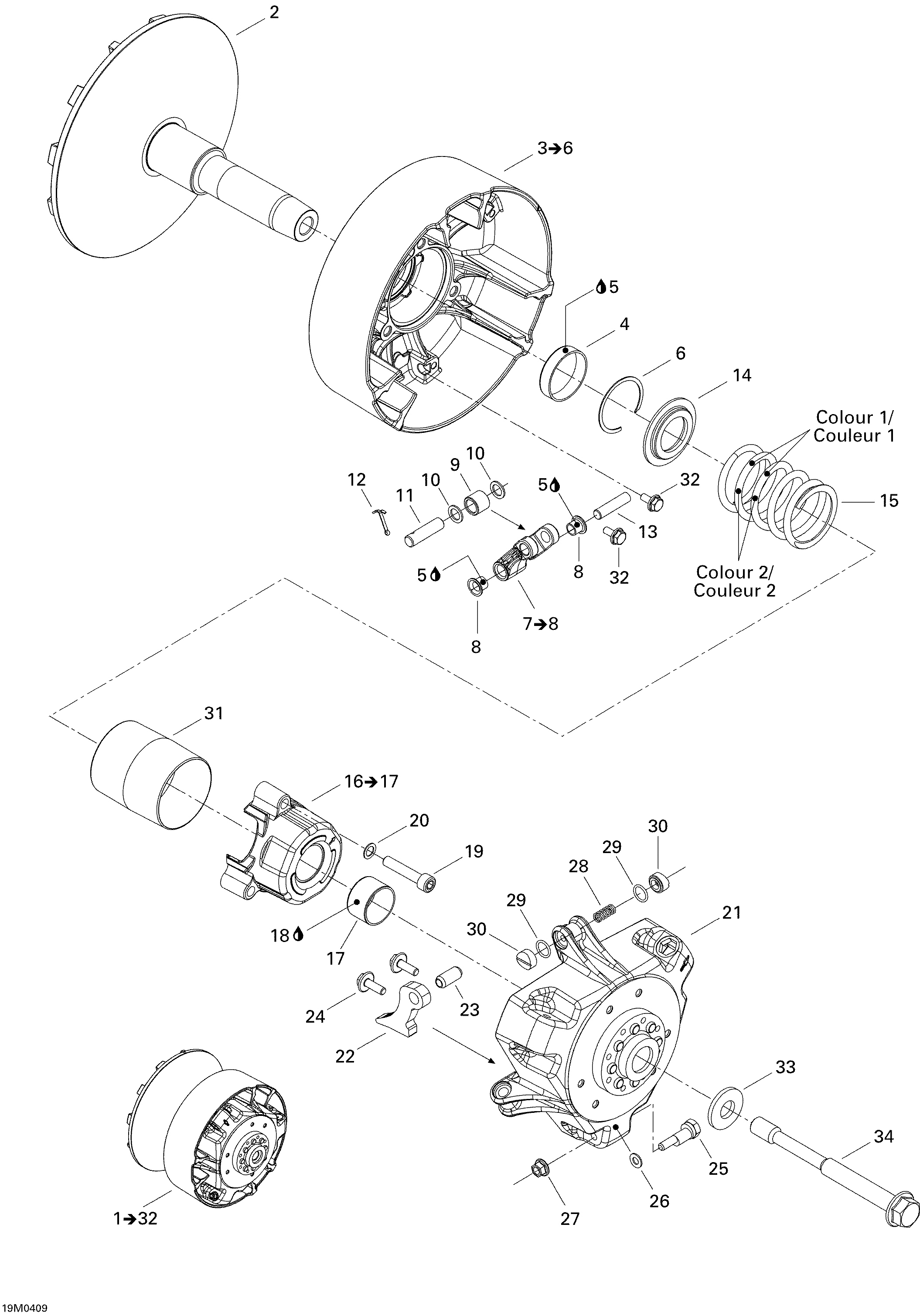

05- Drive Pulley для BRP Ski-Doo Legend V-1000 - 2004
-
№АртикулНазвание
-
2417222593 Fixed FlangeFixed Flange
-
3417222629 Slinding Flange Ass'Y. Includes 3 to 6Slinding Flange Ass'Y. Includes 3 to 6
-
4417222758 BushingBushing
-
5413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
6293370037 CirclipCirclip
-
7417222672 Lever Ass'Y. Includes 7 to 8Lever Ass'Y. Includes 7 to 8
-
8417222633 BushingBushing
-
9417003900 Roller Ass'YRoller Ass'Y
-
10417004302 Stopper WasherStopper Washer
-
11417222594 PinPin
-
12732958001 Cotter PinCotter Pin
-
13417009202 Lever AxleLever Axle
-
14417222312 Spring SeatSpring Seat
-
15414817500 Clutch Spring (Red/Jaune)Clutch Spring (Red/Jaune)
-
16417007500 Spring Cover Ass'Y.. Includes 16 to 17Spring Cover Ass'Y.. Includes 16 to 17
-
17417009204 BushingBushing
-
18413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
19205084044 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
20250200009 Lock Washer 8 mmLock Washer 8 mm
-
21417222530 Governor Cup Ass'YGovernor Cup Ass'Y
-
22417222569 Rampe 607Rampe 607
-
23250400009 Rolled Pin 10 X 22Rolled Pin 10 X 22
-
24250000059 Hex Flanged Scew M6 X 18Hex Flanged Scew M6 X 18
-
25417005500 Calibration ScrewCalibration Screw
-
26417005600 WasherWasher
-
27233061414 Hex Flanged Nut M6Hex Flanged Nut M6
-
28417005700 SpringSpring
-
29732401030 O-RingO-Ring
-
30417222362 Slider ShoeSlider Shoe
-
31417009205 GuardGuard
-
32210361296 Hex Forming Screw M6 X 12Hex Forming Screw M6 X 12
-
33250200006 Conical Spring WasherConical Spring Washer
-
34417300242 Drive Pulley BoltDrive Pulley Bolt
