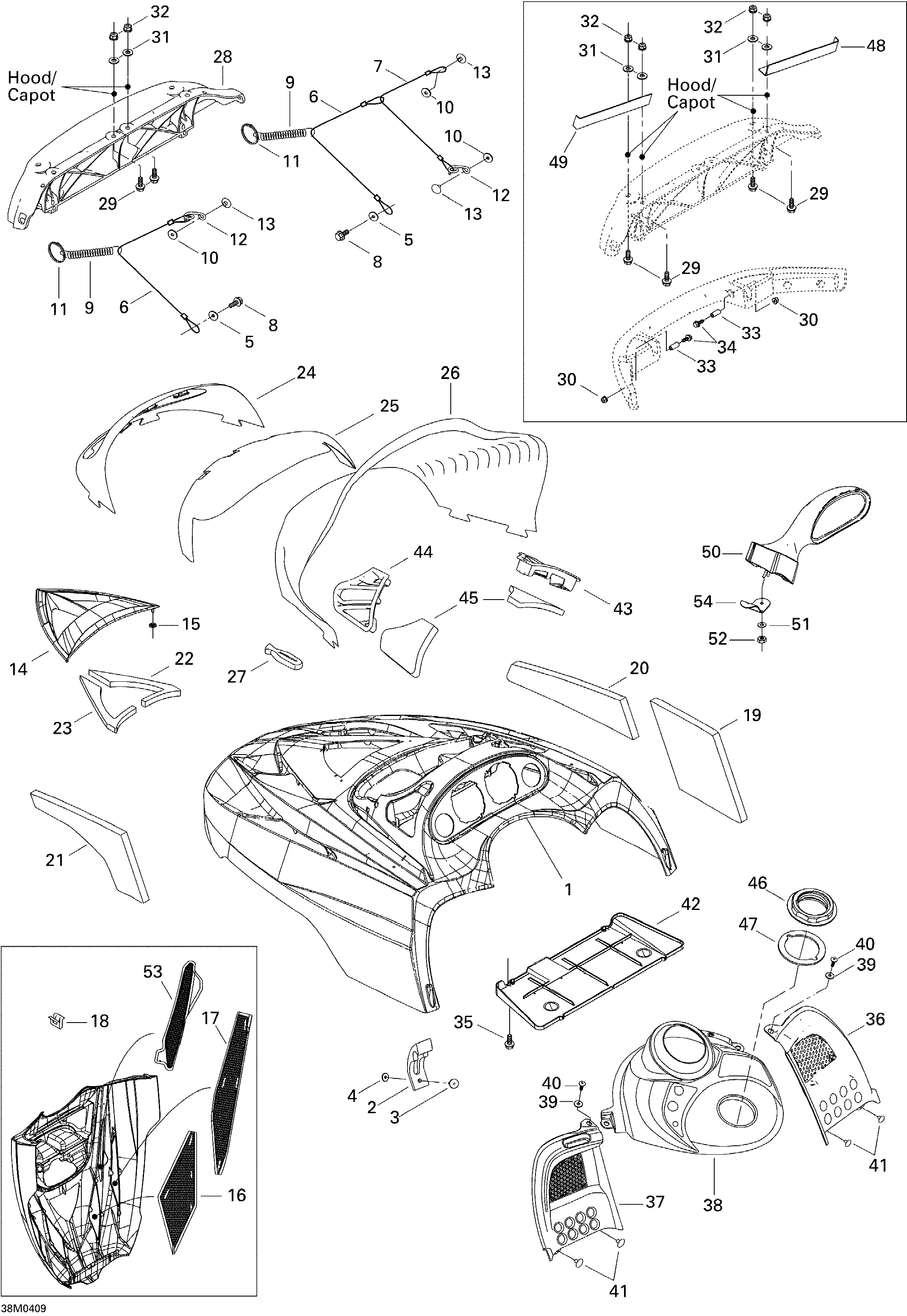

09- Cab, Console для BRP Ski-Doo Legend V-1000 - 2004
-
№АртикулНазвание
-
1517303147 Hood (Autumn Red). SE Models / Autumn RedHood (Autumn Red). SE Models / Autumn Red
-
517303148 Hood (Autumn Red). SPORT Models / Autumn RedHood (Autumn Red). SPORT Models / Autumn Red
-
517303150 Hood (Deep Black). SE Models / Deep BlackHood (Deep Black). SE Models / Deep Black
-
517303151 Hood (Deep Black). SPORT Models / Deep BlackHood (Deep Black). SPORT Models / Deep Black
-
2570027100 Hood LatchHood Latch
-
3293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
4517124300 WasherWasher
-
5391301600 WasherWasher
-
6415093900 Retainer CableRetainer Cable
-
7517303135 Retainer CableRetainer Cable
-
8365901000 Hex Taping Screw #12 X 1/2''Hex Taping Screw #12 X 1/2''
-
9415043300 SpringSpring
-
10517124300 WasherWasher
-
11415058300 RingRing
-
12517262800 BracketBracket
-
13293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
14517303016 Center GrillCenter Grill
-
15250100034 Push NutPush Nut
-
16517302994 RH Intermediate GrillRH Intermediate Grill
-
517302995 LH Intermediate GrillLH Intermediate Grill
-
17517302996 RH Side GrillRH Side Grill
-
517302997 LH Side GrillLH Side Grill
-
18517302785 ClipClip
-
19517302749 RH Side FoamRH Side Foam
-
20517302941 RH Rear Side FoamRH Rear Side Foam
-
21517302750 LH Side FoamLH Side Foam
-
22517302942 RH Center FoamRH Center Foam
-
23517302943 LH Center FoamLH Center Foam
-
24517303052 Headlamp Moulding (Autumn Red). Autumn RedHeadlamp Moulding (Autumn Red). Autumn Red
-
517302158 Headlamp Moulding. Deep BlackHeadlamp Moulding. Deep Black
-
25517302003 Windshield SupportWindshield Support
-
26517302981 High Windshield. SE & SPORT ModelsHigh Windshield. SE & SPORT Models
-
517302982 Very High Windshield. SE GT & SPORT GT ModelsVery High Windshield. SE GT & SPORT GT Models
-
27570023800 Windshield LatchWindshield Latch
-
28517302631 HingeHinge
-
29207662084 Hex Flanged Screw M6 X 20Hex Flanged Screw M6 X 20
-
30233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
31224061201 Flat WasherFlat Washer
-
32232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
33517302179 BushingBushing
-
34207663544 Hex Flanged Screw M6 X 35Hex Flanged Screw M6 X 35
-
35243141640 Hex Screw M4.8 X 16Hex Screw M4.8 X 16
-
36517302709 RH ConsoleRH Console
-
37517302006 LH ConsoleLH Console
-
38517302702 Center Console. SE ModelsCenter Console. SE Models
-
517302757 Center Console. SPORT ModelsCenter Console. SPORT Models
-
39391301600 WasherWasher
-
40732600030 ScrewScrew
-
41293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
42517302628 Air Intake PlateAir Intake Plate
-
43517302024 RH Air Intake GrillRH Air Intake Grill
-
44517302025 LH Air Intake GrillLH Air Intake Grill
-
45517302151 Air Intake FoamAir Intake Foam
-
46517302043 Console NutConsole Nut
-
47293250029 GasketGasket
-
48517302949 RH Corner SupportRH Corner Support
-
49517302950 LH Corner SupportLH Corner Support
-
50517302764 RH MirrorRH Mirror
-
517302766 LH MirrorLH Mirror
-
51517124300 WasherWasher
-
52232541414 Elastic Stop Nut M4 X 70Elastic Stop Nut M4 X 70
-
53517302998 RH Side GrillRH Side Grill
-
54517303057 Holder PlateHolder Plate
