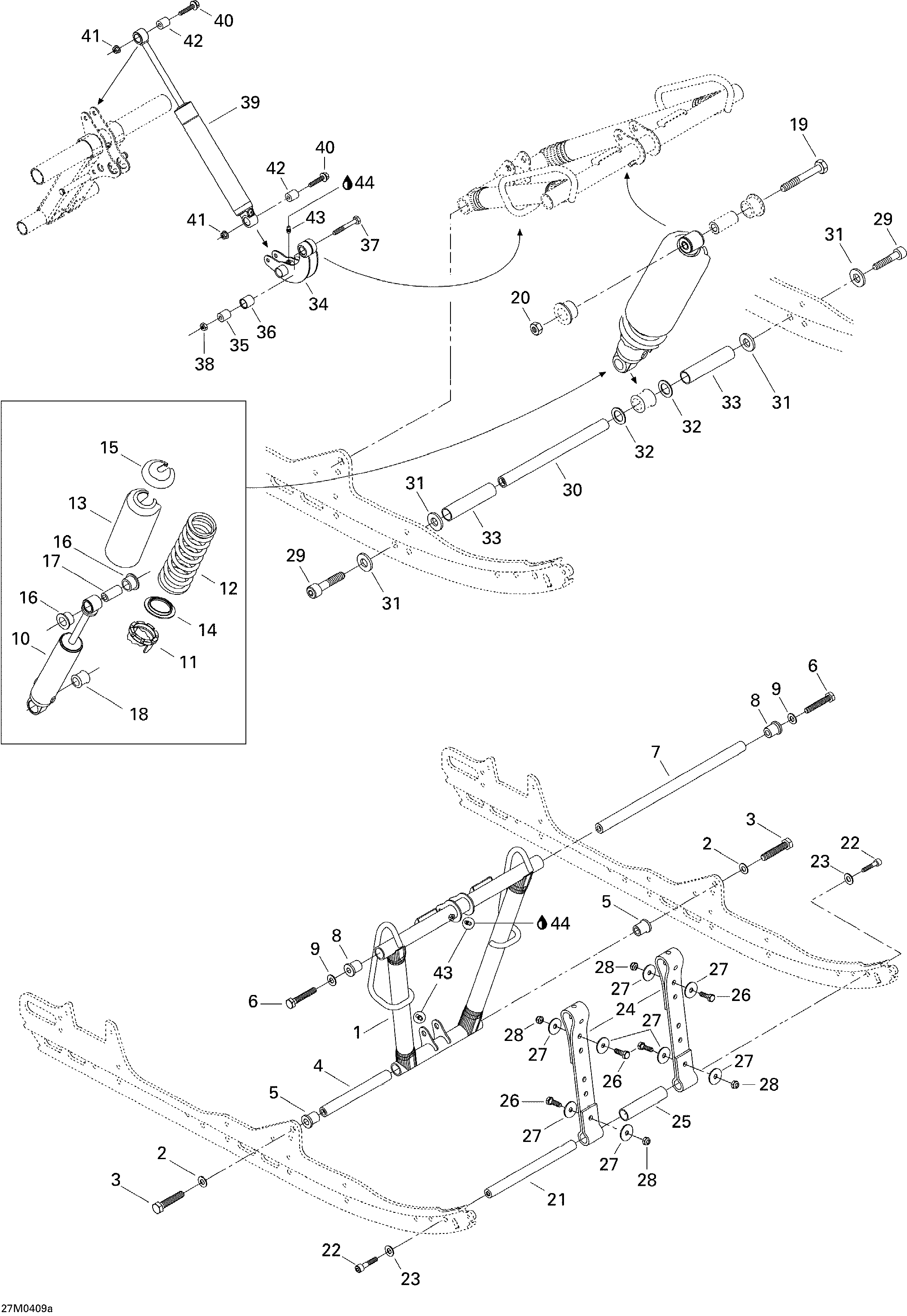

08- Front Arm для BRP Ski-Doo Legend V-1000 - 2004
-
№АртикулНазвание
-
1503189292 Front ArmFront Arm
-
2503189276 WasherWasher
-
3207226044 Hex Screw M12 X 60 (Scotch Grip)Hex Screw M12 X 60 (Scotch Grip)
-
4503189313 ShaftShaft
-
5503189323 CushionCushion
-
6207205544 Hex Screw M10 X 55 (Scotch Grip)Hex Screw M10 X 55 (Scotch Grip)
-
7503190387 ShaftShaft
-
8503189324 CushionCushion
-
9732900049 WasherWasher
-
10503190208 Center ShockCenter Shock
-
11505070150 Cam 45°Cam 45°
-
12503189659 SpringSpring
-
13503188930 ProtectorProtector
-
14517184300 Spring GuideSpring Guide
-
15503140600 Spring StopperSpring Stopper
-
16503189117 CushionCushion
-
17503189282 BushingBushing
-
18503189271 CushionCushion
-
19207005044 Hex Screw M10 X 50Hex Screw M10 X 50
-
20233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
21503189562 AxleAxle
-
22205503544 Socket Head Screw M10 X 35 (Scotch Grip)Socket Head Screw M10 X 35 (Scotch Grip)
-
23503189564 WasherWasher
-
24503190563 Stopper Strap (Large)Stopper Strap (Large)
-
25503189265 SpacerSpacer
-
26207182544 Hex Screw M8 X 25Hex Screw M8 X 25
-
27224081301 Flat WasherFlat Washer
-
28232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
29205523544 Socket Head Screw M12 X 35 (Scotch Grip)Socket Head Screw M12 X 35 (Scotch Grip)
-
30503189272 Center Shock ShaftCenter Shock Shaft
-
31503189276 WasherWasher
-
32503189273 WasherWasher
-
33503189274 SpacerSpacer
-
34503189845 RockerRocker
-
35503189388 Rocker AxleRocker Axle
-
36503189626 CushionCushion
-
37207005044 Hex Screw M10 X 50Hex Screw M10 X 50
-
38233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
39503190007 Rear Shock. SERear Shock. SE
-
503190209 Rear Shock. SportRear Shock. Sport
-
40207684044 Hex Flanged Screw M8 X 40Hex Flanged Screw M8 X 40
-
41233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
42414936000 CushionCushion
-
43408200700 Grease FittingGrease Fitting
-
44219700417 Synthetic Grease, 400gSynthetic Grease, 400g
