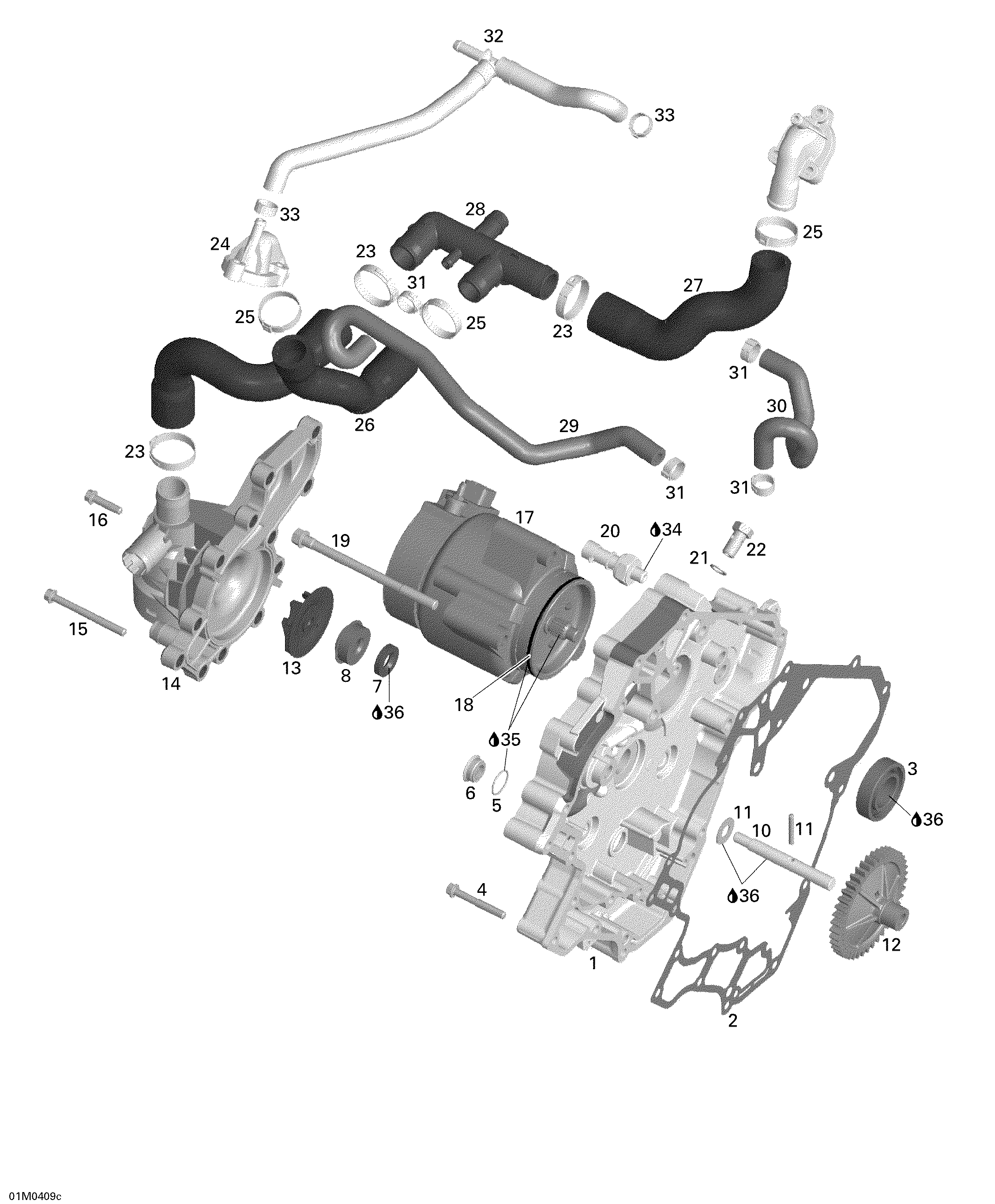

01- Water Pump, Alternator, Ignition Cover для BRP Ski-Doo Legend V-1000 - 2004
-
№АртикулНазвание
-
1420811661 Ignition CoverIgnition Cover
-
2420950590 GasketGasket
-
3420932650 Ball BearingBall Bearing
-
4420440322 Hex Flanged Screw M6 X 45Hex Flanged Screw M6 X 45
-
5420250890 O-RingO-Ring
-
6420241801 Plug ScrewPlug Screw
-
7420650310 Oil SealOil Seal
-
8420650370 Rotary SealRotary Seal
-
9420227685 Thrust WasherThrust Washer
-
10420837480 Waterpump ShaftWaterpump Shaft
-
11420232430 Needle PinNeedle Pin
-
12420834460 Waterpump Gear (41 Teeth)Waterpump Gear (41 Teeth)
-
13420222500 ImpellerImpeller
-
14420811605 Waterpump HousingWaterpump Housing
-
15420440602 Hex Flanged Screw M6 X 65Hex Flanged Screw M6 X 65
-
16420440232 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
17420296460 Alternator (40 Amperes)Alternator (40 Amperes)
-
18420850430 O-RingO-Ring
-
19420941651 Hex Screw M8 X 119Hex Screw M8 X 119
-
20420256772 Oil Pressure SwitchOil Pressure Switch
-
21420230150 Gasket RingGasket Ring
-
22420940874 Banjo Bolt M10 X 19Banjo Bolt M10 X 19
-
23420853173 ClampClamp
-
24420922180 Molded HoseMolded Hose
-
25420853163 ClampClamp
-
26420922745 Molded HoseMolded Hose
-
27420922740 Molded HoseMolded Hose
-
28420922280 Elbow FittingElbow Fitting
-
29420822090 Molded HoseMolded Hose
-
30420822092 Molded HoseMolded Hose
-
31420853303 ClampClamp
-
32420660881 Hose Ass'YHose Ass'Y
-
33420853303 ClampClamp
-
34293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
35293550030 Grease, Super LubeGrease, Super Lube
-
36293600054 Engine Oil 4 Strokes, 0W40, 12 X 1 LiterEngine Oil 4 Strokes, 0W40, 12 X 1 Liter
