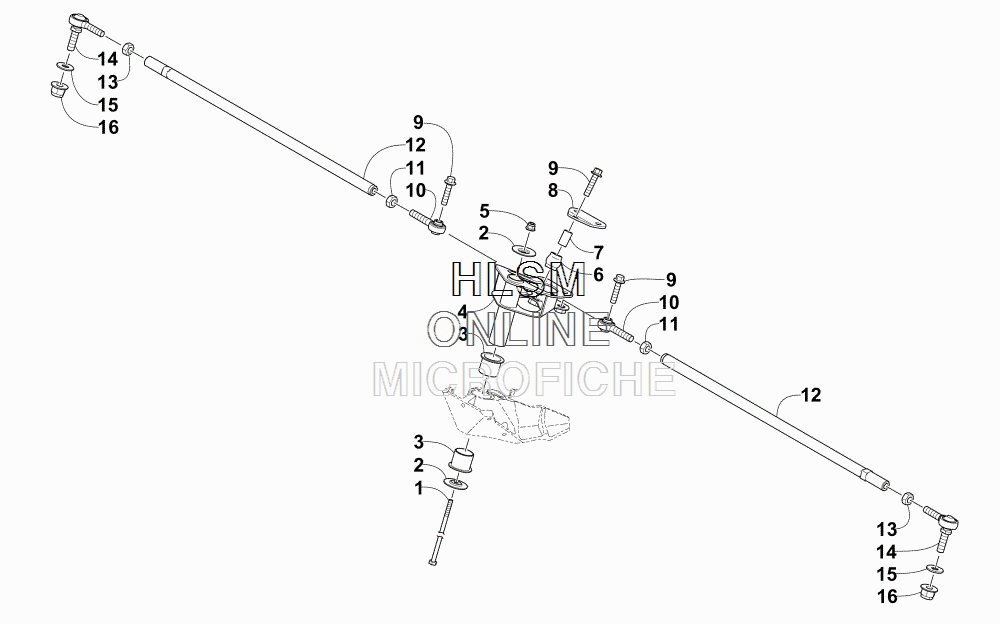

TIE ROD ASSEMBLY для Arctic Cat ZR 6000 R SX (GREEN) [S2015ACDPRUSG] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    1623-964 SCREW, CAP
    SCREW, CAP
  • 2
    1623-807 WASHER
    WASHER
  • 3
    1605-161 BUSHING, PLASTIC (PFI1618-16)
    BUSHING, PLASTIC (PFI1618-16)
  • 4
    1705-419 ARM, STEERING
    ARM, STEERING
  • 5
    8427-602 NUT, LOCK
    NUT, LOCK
  • 6
    1605-083 BUSHING
    BUSHING
  • 7
    1605-164 AXLE
    AXLE
  • 8
    1605-080 PLATE, RETAINING
    PLATE, RETAINING
  • 9
    8408-836 SCREW, CAP
    SCREW, CAP
  • 10
    1605-032 BALL JOINT, TIE ROD - RIGHT-HAND THREAD
    BALL JOINT, TIE ROD - RIGHT-HAND THREAD
  • 11
    8420-002 NUT - RIGHT-HAND THREAD
    NUT - RIGHT-HAND THREAD
  • 12
    1605-147 TUBE, TIE ROD - SPINDLE
    TUBE, TIE ROD - SPINDLE
  • 13
    0423-013 NUT - LEFT
    NUT - LEFT
  • 14
    1605-019 ROD END, LEFT HAND - M10 X 1.25 THD W/STUD
    ROD END, LEFT HAND - M10 X 1.25 THD W/STUD
  • 15
    1623-803 WASHER
    WASHER
  • 16
    8427-002 NUT, LOCK
    NUT, LOCK
