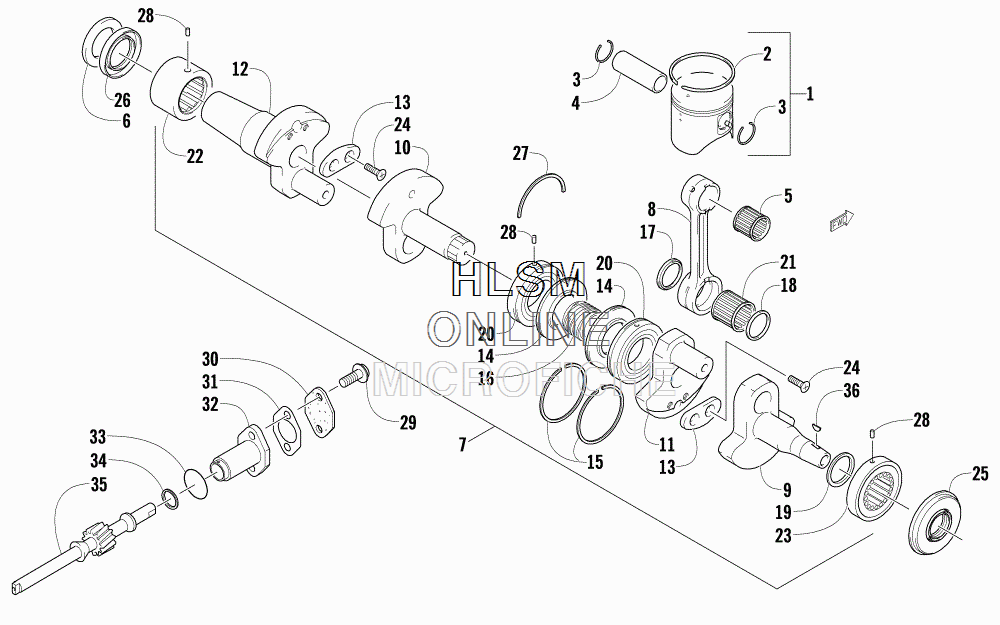

PISTON AND CRANKSHAFT для Arctic Cat ZR 6000 R SX (GREEN) [S2015ACDPRUSG] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    3007-734 PISTON - SET (INC. 2-3)
    PISTON - SET (INC. 2-3)
  • 2
    3007-735 ...RING SET, PISTON
    ...RING SET, PISTON
  • 3
    3003-439 ...CIRCLIP,PISTON PIN,M20
    ...CIRCLIP,PISTON PIN,M20
  • 4
    3007-737 PIN,PISTON
    PIN,PISTON
  • 5
    3007-660 BEARING, PISTON PIN
    BEARING, PISTON PIN
  • 6
    3006-552 SPACER
    SPACER
  • 7
    3007-900 CRANKSHAFT ASSEMBLY (INC. 8-24)
    CRANKSHAFT ASSEMBLY (INC. 8-24)
  • 8
    3007-662 ...CONNECTING ROD
    ...CONNECTING ROD
  • 9
    3007-739 ...CRANKSHAFT - RIGHT
    ...CRANKSHAFT - RIGHT
  • 10
    3007-664 ...CRANKSHAFT - MIDDLE
    ...CRANKSHAFT - MIDDLE
  • 11
    3007-665 ...WHEEL, CRANKSHAFT
    ...WHEEL, CRANKSHAFT
  • 12
    3007-901 ...CRANKSHAFT - LEFT
    ...CRANKSHAFT - LEFT
  • 13
    3007-667 ...BALANCER, CRANKSHAFT
    ...BALANCER, CRANKSHAFT
  • 14
    3006-508 ...RACE, MIDDLE CRANK SEAL
    ...RACE, MIDDLE CRANK SEAL
  • 15
    3005-508 ...RING, MIDDLE CRANK SEAL
    ...RING, MIDDLE CRANK SEAL
  • 16
    3006-519 ...GEAR, DRIVE - OIL PUMP
    ...GEAR, DRIVE - OIL PUMP
  • 17
    3005-494 ...WASHER
    ...WASHER
  • 18
    3007-668 ...WASHER
    ...WASHER
  • 19
    3008-495 ...WASHER
    ...WASHER
  • 20
    3008-421 ...BEARING
    ...BEARING
  • 21
    3005-505 ...BEARING
    ...BEARING
  • 22
    3007-439 ...BEARING-LEFT
    ...BEARING-LEFT
  • 23
    3006-551 ...BEARING - RIGHT
    ...BEARING - RIGHT
  • 24
    3007-440 ...SCREW
    ...SCREW
  • 25
    3007-533 SEAL, OIL
    SEAL, OIL
  • 26
    3003-759 SEAL, OIL - LEFT
    SEAL, OIL - LEFT
  • 27
    3003-359 C-RING
    C-RING
  • 28
    3003-658 PIN,ALIGNMENT
    PIN,ALIGNMENT
  • 29
    3007-426 BOLT
    BOLT
  • 30
    3006-633 COVER, RETAINER
    COVER, RETAINER
  • 31
    3004-286 GASKET, RETAINER
    GASKET, RETAINER
  • 32
    3007-669 RETAINER, OIL PUMP SHAFT
    RETAINER, OIL PUMP SHAFT
  • 33
    3005-126 O-RING
    O-RING
  • 34
    3423-300 SHIM
    SHIM
  • 35
    3006-520 GEAR, DRIVEN - OIL PUMP
    GEAR, DRIVEN - OIL PUMP
  • 36
    3010-070 KEY,TYPE 3 M3 (FASTENER)
    KEY,TYPE 3 M3 (FASTENER)
