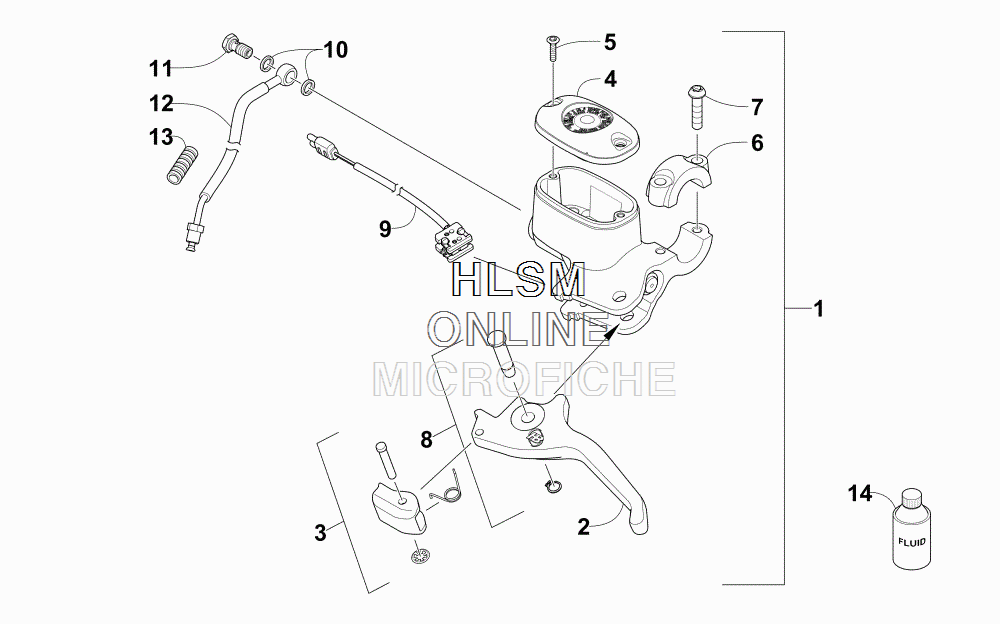

HYDRAULIC BRAKE CONTROL ASSEMBLY для Arctic Cat ZR 6000 R SX (GREEN) [S2015ACDPRUSG] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    2602-889 CYLINDER,MASTER-9/16 CYCLONE (INC. 2-9)
    CYLINDER,MASTER-9/16 CYCLONE (INC. 2-9)
  • 2
    1602-931 ...LEVER, BRAKE (INC. 3)
    ...LEVER, BRAKE (INC. 3)
  • 3
    1602-932 ......LOCK, BRAKE LEVER - KIT
    ......LOCK, BRAKE LEVER - KIT
  • 4
    1602-933 ...COVER, RESERVOIR
    ...COVER, RESERVOIR
  • 5
    1602-934 ...SCREW, MACHINE
    ...SCREW, MACHINE
  • 6
    0502-869 ...CLAMP, HANDLEBAR
    ...CLAMP, HANDLEBAR
  • 7
    1602-936 ...SCREW, MACHINE
    ...SCREW, MACHINE
  • 8
    1602-937 ...PIN, BRAKE LEVER - KIT
    ...PIN, BRAKE LEVER - KIT
  • 9
    1602-938 ...SWITCH, BRAKE
    ...SWITCH, BRAKE
  • 10
    0423-178 WASHER, CRUSH
    WASHER, CRUSH
  • 11
    0423-413 BOLT, BANJO-FITTING
    BOLT, BANJO-FITTING
  • 12
    1602-166 BRAKELINE, HYDRAULIC
    BRAKELINE, HYDRAULIC
  • 13
    1619-563 CONDUIT, HIGH TEMPERATURE - (3 FT)
    CONDUIT, HIGH TEMPERATURE - (3 FT)
  • 14
    5639-848 DOT 4 BRAKE FLUID - (12 OZ)
    DOT 4 BRAKE FLUID - (12 OZ)
